Specifications
pellet feed machineduce floating and sinking fish feed
2.friendly to operate
uce much cost
pellet feed machine
MJ feed extruder is single screw squeezing type extruding equipment, it is mainly used for feed extruding for livestock and poultry, pet and aquatics. It is small sized dry type extruder in the sery, the main features are as belows:
Features of pellet feed machine :
1. Suitable for different production requirements, small and middle sized feed factory can use it for material dealing and special feed production.
2. Suitable for different materials and production conditions
3. Simple structure and practical, easy operation
Main structure and working principle of pellet feed machine :
1.Feeder
2. Squeezing extruding equipment
3.electrical control system
Advantage of pellet feed machine :
1.International advanced cutting technology, the use of soft cutting forms, achieving stepless, anywhere out of the material can be cut into the required length of the product, is not easy to have a Burr.
2.Innovative design, unique, simple structure, easy to install easy unloading easy to dismantle, easy operation.
3.Screw and threaded with special wear-resistant, heat-resistant alloy steel material and heat treatment, and has the advantages of wear resistance and long service life.
4.Within the unique Turbo-die device, ensure that the forage yield and quality and fitted with electric heating devices, improve feed extrusion rate.
5.Y series three-phase Motors main motor adopts high quality, ensure that the power is strong.
6.Variable-speed feeding device, easy operation, feeding evenly to prevent machine being blocked.
7.Mould replacement is simple, requires a different aperture feed, you need to replace the aperture required for mold.
8.Materials under high temperature and high pressure effective in killing Escherichia coli. Harmful bacteria such as salmonella, ensuring feed health. easy absorption of fish and poultry. General puffed fish feed than powder and granule feed saving 8%--15%.Materials under high temperature and high pressure effective in killing Escherichia coli. Harmful bacteria such as salmonella, ensuring feed health. easy absorption of fish and poultry. General puffed fish feed than powder and granule feed saving 8%--15%.
9.The machine can also produce sinking feed, poultry feed pellets. Items containing most of the toxins can be eliminated and anti-nutritional factor of trypsin-resistant mould and urine and animal-friendly digestion and absorption, improve nutrient digestion and utilization.
10.Quenched and tempered for the steam control is more convenient, accurate, and can even add liquid ingredients.
11.Free access to material expanded, special design, feed not blocked will not be returning.
12.Quenched and tempered with quick material discharge device below, prevents items in emergency situations or entry of foreign matter expanded paragraphs.
Installation of pellet feed machine .

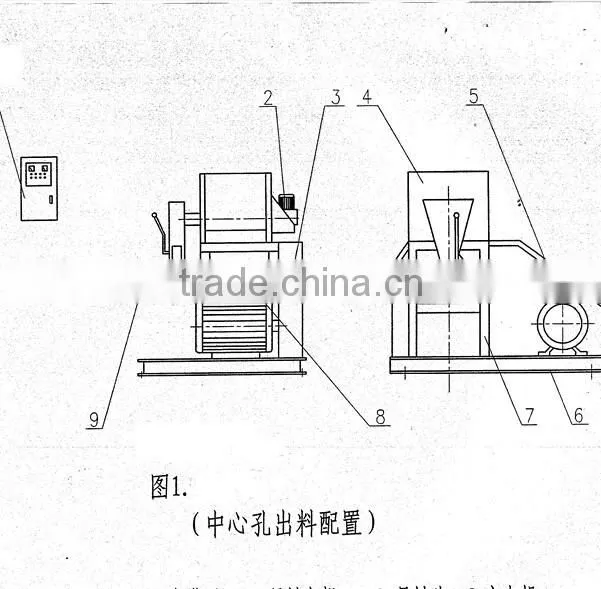

The installation sample Figure Annex"installation drawing".According to the overall production process and plant layout to select the appropriate location of the plane.Complete sets of steel structure for the unit, extruder generally elevated, so that cooler extruder feed port placed in the export of about 500-800mm at the bottom (for a mixture containing starch or other higher raw material, the size should be able tothe principle of breaking machine installation), after discharging the material through the mask or the whereabouts of receiving hopper into the cooler, so that can be expanded to adapt to a variety of production processes.But relatively fixed production process, mainly the following aspects should be noted:
Parameter of catfish feed pellet machine/poultry feed pellet making machine/fish feed extruder machine
Modelo |
capacidade (KW) |
Poder (KW) |
Poder de transporte de material |
Diâmetro do parafuso |
Faca de corte de energia |
MJ-60 |
120-150 |
15 |
1.1 KW |
φ60mm |
0.4 KW |
MJ-70 |
180-250 |
18.5 |
1.1kw |
φ70 mm |
0.75 KW |
MJ-80 |
300-350 |
22/27 |
1.1kw |
φ80 mm |
1.5 KW |
MJ-90 |
400-450 |
30/37 |
1.1 KW |
φ90 mm |
1.5 KW |
MJ-120 |
500-700 |
55 |
1.1 KW |
φ120 mm |
2.2 KW |
MJ-135 |
800-1000 |
75 |
1.1 KW |
φ133 mm |
2.2 KW |
MJ-160 |
1200-1500 |
90 |
1.5 KW |
φ155 mm |
2.2 KW |
MJ-200 |
1800-2000 |
132 |
1.5 KW |
φ195 mm |
3.0 KW |

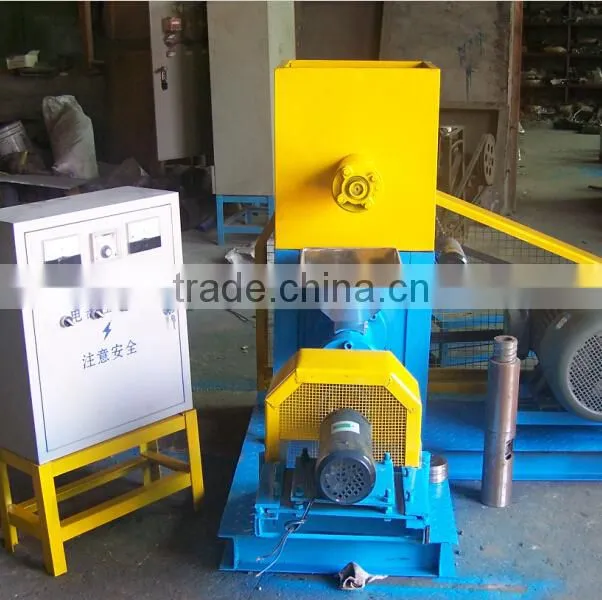

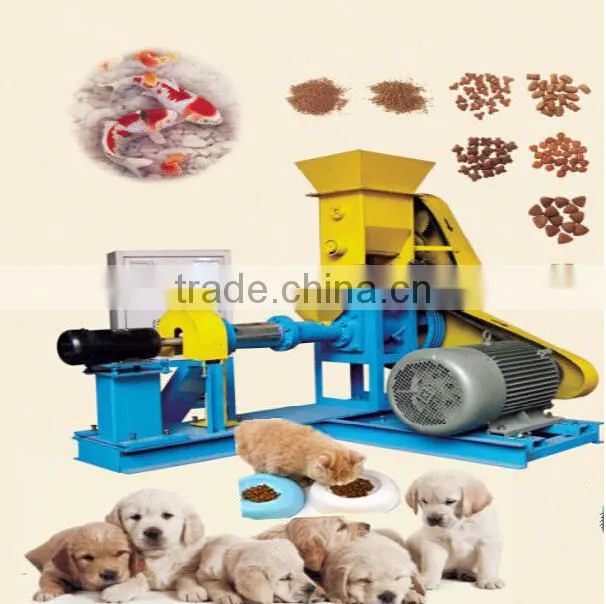

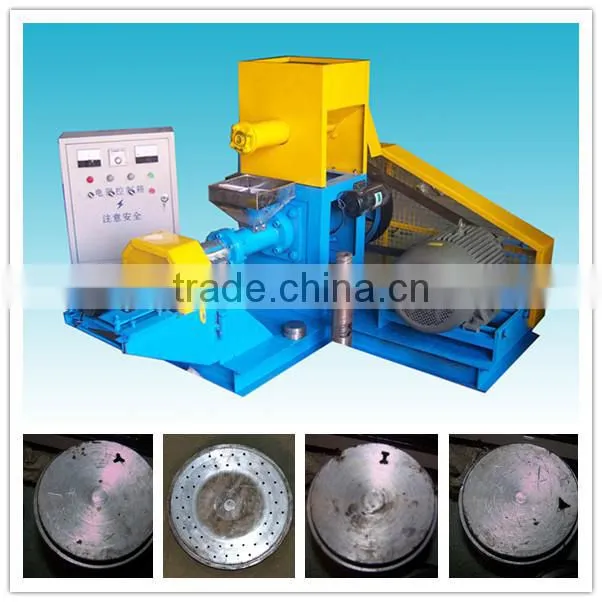

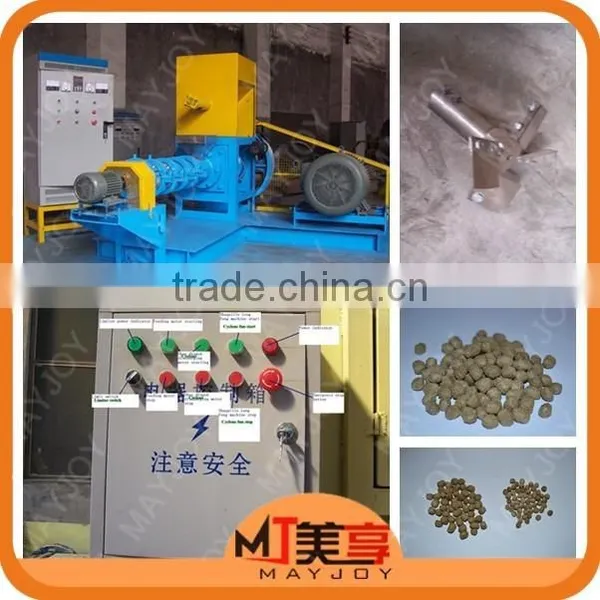

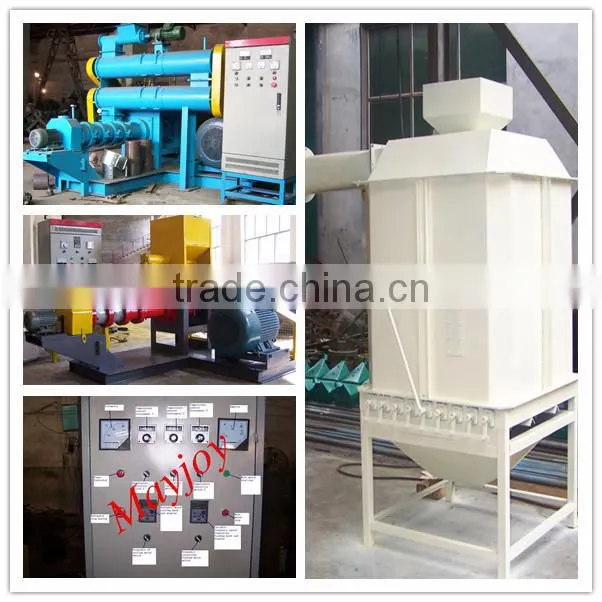

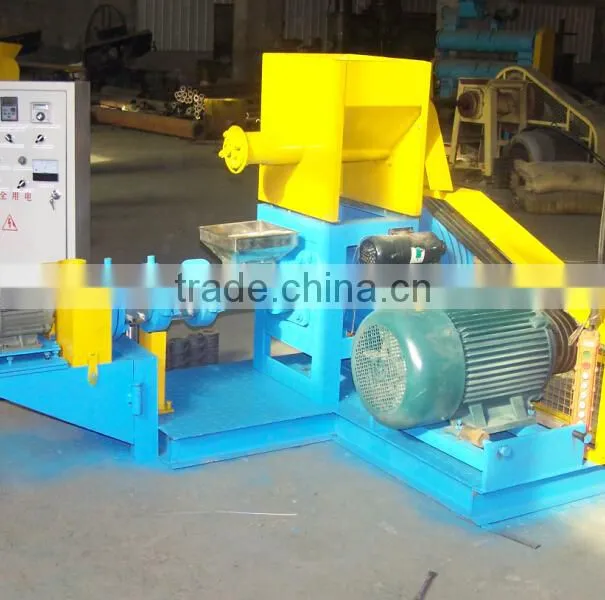

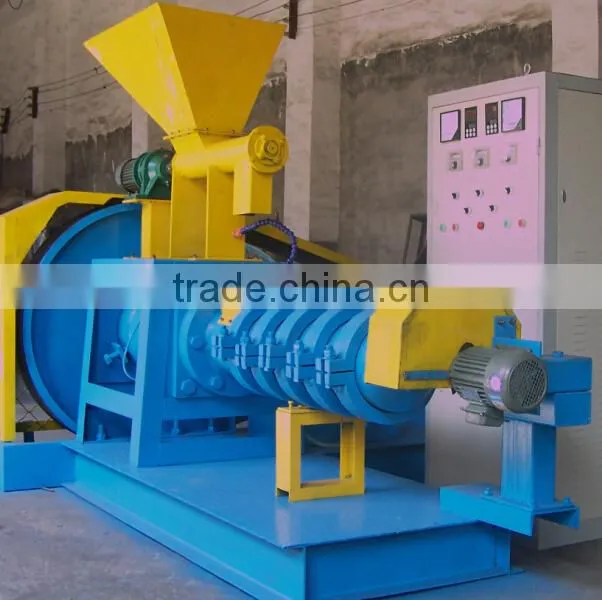

Pictures of pellet feed machine .
Fit for pellet feed machine :
Wooden box for pellet feed machine .
If you have any problems about our pellet feed machine , please contact me freely
