Wood pallet block making machine
Equipment disposition
wood sawdust block making machine.Generally four hot presses are a production line, must provide the dryer, the gluing machine, grinder each. (Dryer, gluing machine, grinder and so on supporting facility customer buys in addition).
Personnel disposition
Production personnels 4-5 person per shift. And raw material sort (screening), drying, spreads 2-3 people, looked that machine 2 people (a person may look at two machines).
Production cycle

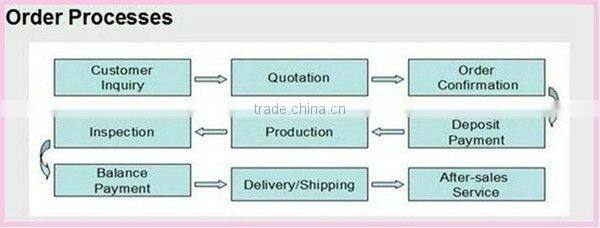

After confirmation order form and payment advanced payment, 40 super craftsmanship factory delivery.
Raw materials needed
wood shavings,sawdust and the other wood waste material
Machines needed
The production line is made up of the crusher, dryer, the gluing machine, hot pressing machine and Saw to cut the block piece by piece.
Advantages of the final products
Our sawdust block with the advantage of flat, smooth and artistic surface, good waterproof(it should not disintegrate after 48 hours in the water,and wind, sun) the nail force strong.you can made according to customer specifications and requirements,export inspection exemption fumigation free, formaldehyde release a quantity (E2)
The products conform to the national standard, which combined strength of 1.07 mpa, grasps the screws force vertical for 1590 N, parallel for 1660 N which is the ideal material for fumigation-free wood tray holder (feet pier, a leg).
The Fumigation-free, non-heat treatment product is mainly used in place of the foot pier in the pallets logs.
Parameter of wood pallet block making machine
Model |
MJ-1 (Double heads) |
MJ-2 (Single head) |
Specification of blocks |
Height:75-145mm Width:75-145mm |
|
Power |
20.3kw |
13kw |
Glue water amount used |
200-240kg/m³ |
100-120kg/m³ |
Supports the density |
550-600kg/m³ |
|
Capacity |
4m³/24h |
2m³/24h |
Warm prosecution type |
PID adjusts the merit accent to press the control |
|
Voltage |
380v/50hz |
|
Weight |
1500kg |
1000kg |
Dimension |
5000*700*1300mm |
5000*600*1300mm |
