Home > Products > Drying machinery > Customization available heated air circulation intelligent control heat pump dryer
Customization available heated air circulation intelligent control heat pump dryer
- 300 Unit / Units per Month
- Credit Card
Product Details
| Condition: | New | Brand Name: | Mayjoy, Dryer machine | Model Number: | MJ-1 |
| Type: | Other, Dryer, Dryer,hot-air circulation | Voltage: | 380V or as customer requirement, 380V OR AS YOUR NEED | Power(W): | 15KW, 15kw |
| Dimension(L*W*H): | 2300*1200* 2000 | Warranty: | 12 months, 12 months | After-sales Service Provided: | Overseas third-party support available |
| Weight: | 1000kg |
Product Description
2015 new invention widely used energy saving heat pump dryer
Working Principle of heat pump dryer:
Heat pump is essentially a heat lifting device. The high temperature heat pump drying unit adopts the reverse Carnot principle, absorbing heat from the surrounding environment and passing it to the heated material(high tmperature). Its working principe is the same to refrigerator, woking by reverse Carnot cycle, except for different working temperature.
Descriptions of heat pump dryer :
This hot air circulating drying oven is made by a low noise anti-high temperature axial flow fan and automatic control temperature system.
The whole circulation system is fully enclosed to make that the heat efficiency of the drying oven increase from 3-7% of the traditional drying oven to 35-45% of the present one.
The highest heat efficiency can reach 50%.
Technical Parameters of heat pump dryer :
Model | Capacity (kg/batch) | Power (KW) | Consumed steam(kg/h) | Air capacity(m3/h) | Allowed difference in temperature(°C) | Matched baking plate(piece) | Overall dimension(mm) | Matched baking cart (set) |
MJ-1 | 100-120 | 15 | 18 | 3450 | ±2 | 48 | 2300*1200 *2000 | 2 |
MJ-2 | 200-240 | 30 | 36 | 6900 | ±2 | 96 | 2300* 2200 *2000 | 4 |
NJ-3 | 300-360 | 45 | 54 | 10350 | ±2 | 144 | 3300 *2200 *2000 | 6 |
MJ-4 | 400-480 | 60 | 72 | 13800 | ±2 | 192 | 4460 *2200 *2290 | 8 |
Main application of Industrial heat pump dryer :
This heat pump dryer is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries.

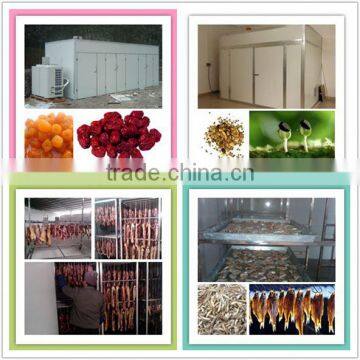

Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
Welcome to conatct us for more information of heat pump dryer :
