Tractor With Front End Loade/Loader/5 Ton Wheel Loader

Name: Tractor With Front End Loade/Loader/5 Ton Wheel Loader
Brand: LONGJIU
SKU: 140619166
Availability: InStock

US$ 23,000 - 25,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

LONGJIU

Model Number:

ZL36F

Qingzhou Longjiu Machinery Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name LONGJIU

Model Number ZL36F

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7100*230*3040mm

Rated Load 3000KG

Certification CE,ISO

Warranty 1 year

After-sales Service Provided Overseas service center available

why choose us?

we are more professional

1.we have 10 years history to produce it.

2.We have more than 300 workers,50 engineers,plant area of more than 70000m2.

3.CE and ISO certification,quality assured.

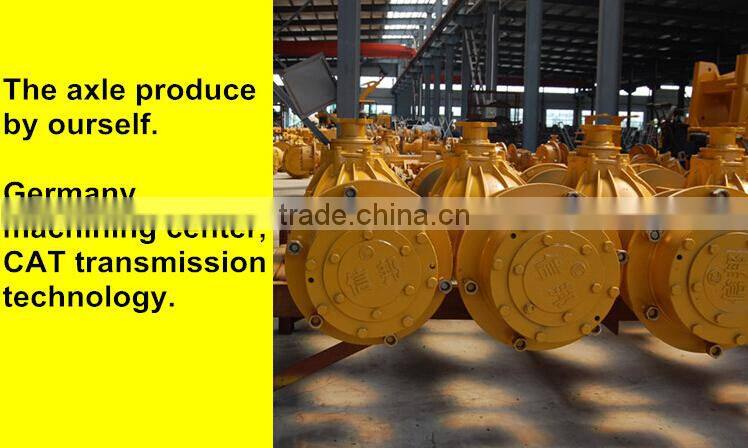

4.All of the wearing parts come form famous supplier,Caterpillar transmission technology,Isuzu axle,high quality.

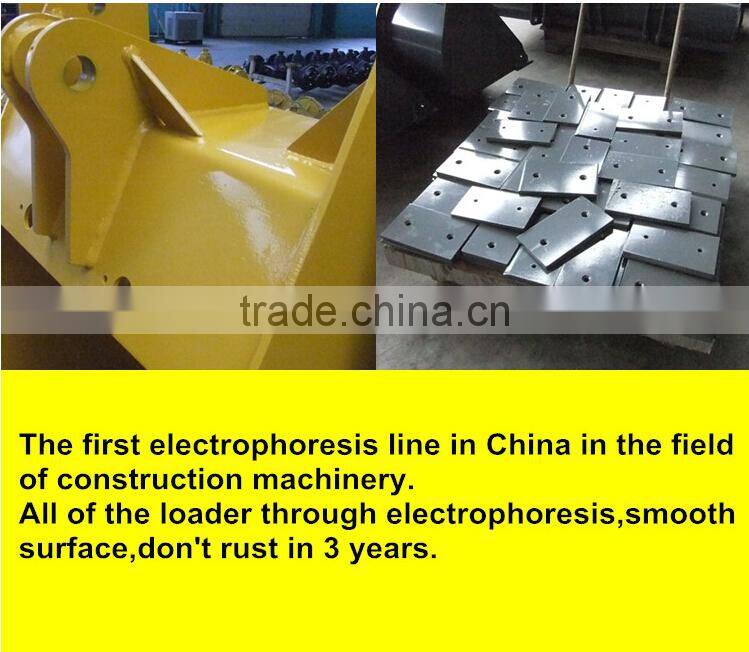

5.The first electrophoresis and electrostatic powder spraying line in the field of engineering machinery in China.

6.Each product through rigorous testing before leaving the factory.

7.The best after-sales services,using more ease.

8.We can supply you with OEM and design products as your request.

ZL36F
Performance	Rated Load	3000 kg
	Total weight	9700 kg
	Rated Bucket Capacity	1.8 m3
	Max.Gradeability	25°
	Dumping Height	3200 mm
	Dumping Reach	1100 mm
	Raising Time	≤ 5.5 s
	Total Cycle Time	≤ 10.0 s
	Overall Dimensions(LxWxH)	7500x2430x3120
	Steering Angle	36.5±1°
	Maximum Pulling Force	90 kn
	Min.Turning Radius	5800 mm
Engine	Model	Deutz
	Type	In-line,Water-cold,Four-stroke,Direct injection
	Rated Power	92 kw
	Rated Speed	2200 rpm
Gear box	Hydraulic Torque Converter	YJ315 Torque Converter
	Gear Shift	4 forward,2 backward
	Max.Speed	36 km/h
Drive Axle	Model of Axle	30F Hub Reduction Axle
Drive Axle	Wheel Base	2630 mm
Drive	Mode	4-way Drive
Hydraulic System	System Working Pressure	18 Mpa
Brake system	Service Brake	Sing line,Hydraulic,Expansion-shoe Brake on 4 wheels
Brake system	Parking Brake	Hand Flexible Shaft Control Disk Brake
Tyre	Type Specification	17.5-25-16PR(L-3)
	Front Tyre Pressure	0.34 Mpa
	Rear Tyre Pressure	0.28 Mpa
