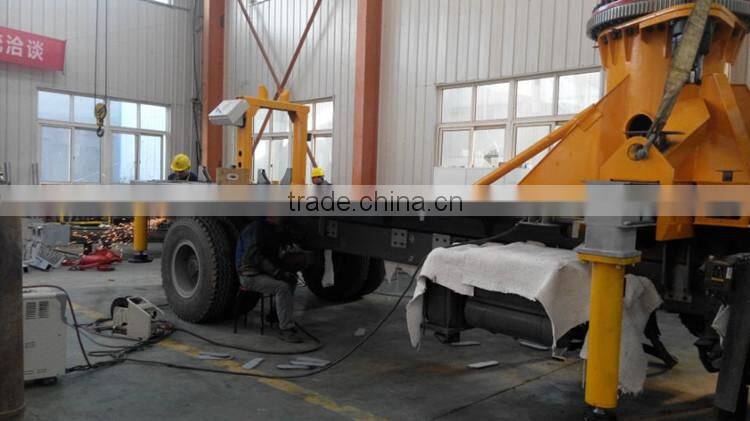

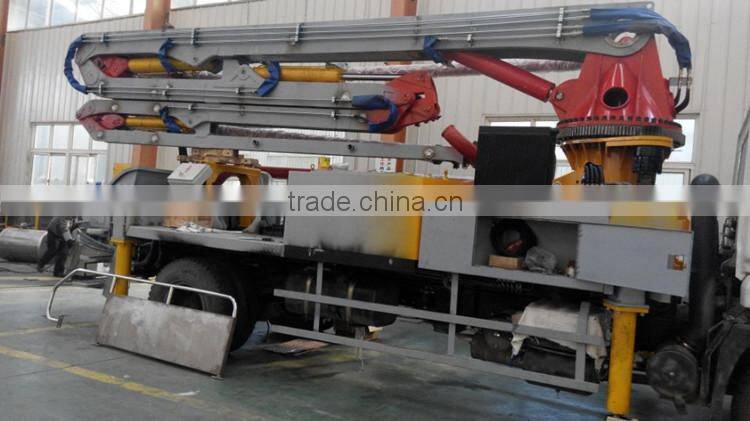

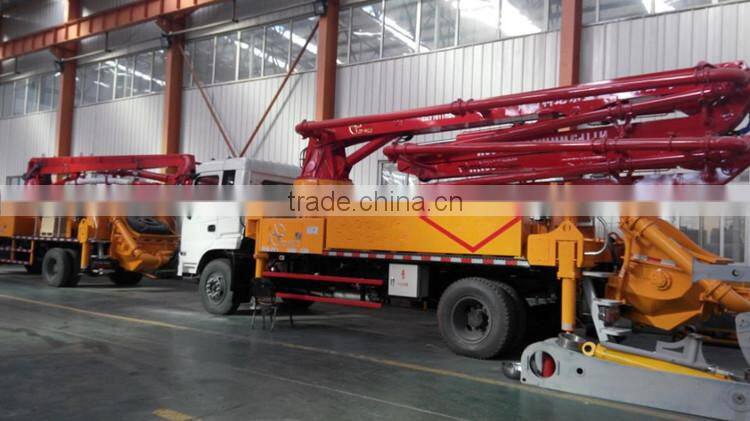

Concrete Boom Truck Made in China T21

Concrete Boom Truck Made in China T21 thumbnail-1
Concrete Boom Truck Made in China T21 photo-1
US$ 1 - 150,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Power Type:
Diesel
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Qingzhou Longjiu Machinery Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Power Type Diesel
Place of Origin Shandong, China
Brand Name longjiu
Model Number T21
Power(W) 97 kw
Weight 14680 kg
Dimension(L*W*H) 9570*2191*3360
Certification ISO
Warranty 1 year
After-sales Service Provided Overseas third-party support available

Item Unit Specification
Pumping system Maximum theoretical delivery volume(high /low pressure) m3/h 37/63
Maximum theoretical delivery pressure(high/low pressure) m3/h 13/7.5
Rated working pressure Mpa 32
Pumping frequency(high/low pressure) min-1 14/24
Hopper capacity L 450
Filling height mm 1450
Hydraulic system type Open loop
Distribution valve S valve
Oil cylinder diameter*stroke mm Φ125×1650
Concrete cylinder diameter*stroke mm φ200×1650
Hydraulic oil cooling Air cooling
Recommended concrete slump cm 12-23
Maximum aggregate dimension mm 40
Placing boom Structure type 21-3R
Placing height m 21
Horizontal distance m 17.5
Placing depth m 10
Slewing angle 365°
Pipe diameter mm 125
End hose length mm 3000
Min. height of opening placing boom mm 8500
Outriggers span(front*rear*side) mm 4024*3100*5227
Chassis and the whole machine Chassis model Dongfeng
Wheelbase mm 4600
Engine type YZ4DB1-40
Engine power kw/(r/min) 97kw/2600r/m
Oil tank volume L 400
Total weight Kg 14680
Overall dimensions(Length*width*height) mm 9570*2191*3360
other Lubrication mode Manual and remote control
Oil tank volume L 600
Maximum water pressure Mpa 0.8
Water tank volume L 500
Pipe cleaning mode Water cleaning/dry cleaning



concrete boom truck made in China T21concrete boom truck made in China T21concrete boom truck made in China T21
