Specifications
1.Coated White Palisade Fence2.ISO 9001:2008
3.Galvanized+powder painting
4.High quality
Palisade fence
Anping Hepeng Hardware Netting Co.,Ltd
1.Company Information
Established: 1983
Area: 20000 square meter
Staff: 256
Sales Amount: 36700000 USD in 2012
Main Export Market: Poland, Russia, Canada, French, England, Hungary, Australia, New Zealand, Ukraine, The USA, Mexico, The South Africa, and the South American, etc.
Main Products: Wire mesh fence, temporary fence, crowd control barrier, garden fence, 358 fence, fence post.
2.Factory Show
3.Product Description

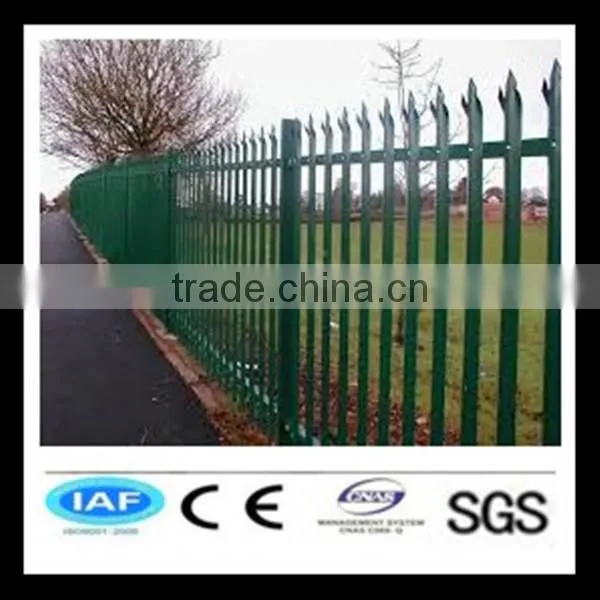

Palisade Fence
Material
Low carbon steel wire, PVC coated wire
Surface Treatment
PVC coated after welding of steel wire. Electro galvanized, hot-dip galvanized or PVC coated can be done separately
Color
Green, white, yellow, blue, black, etc colors as your request
Application
It is mainly used as fences or protection materials in airport, residence area, sea ports, gardens, breeding and husbandry,Also applicable to highway, railway, airport, factory, workshop, residential area, ports, municipal flower garden greenbelt and the decoration protection.
4.Productive Process
Welded by cold-drawing low-carbon steel wire, spray, fix it with steel pillars and the annex
5.Specification
1> Pales
Width: 65-70mm
Thickness: 2.0-3.0mm
Finishing: galvanized and polyester powder coated or hot dipped galvnaized
Head: single point, triple point,rounded,rounded and notched
Height: 1.2m-3.0m
17pcs/set
The popular color is as following, other color is also available
2> Rail
Size: 50x50mm, 40x40mm (Angle Iron)
Thickness: 5.0-6.0mm
Finishing: galvanized and polyester powder coated or hot dipped galvanized
Holes: with 19 holes drilled on one edge side
Length: 2.7m
Screw Size: M8
3> Post
The post is made of square tube with a metal anti-pull cappost profile dimension:60x60mm,80x80mm.
Post height has 1000 mm- 3000 mm.
6.Palisade Fence Type:
Either traditional 'D' section pales or 'W' section pales in a full range of heights from 1.2 meter up to 3.6 meter
7.Specification of Palisade Fence
height | post dimensions | rail dimensions | support legs | corrugated steel palisades |
1.2m | 102x44or100x55 | 40x40x6mm | 1 | W-2.0mm or D-3.0mm |
1.5m | 102x44 or 100x55 | 40x40x6mm | 1 | W-2.0mm orD-3.0mm |
1.8m | 102x40 or 100x55 | 40x40x6mm | 1 | W-2.0mm or D-3.0mm |
2.0m | 102x44 or 100x55 | 45x45x6mm | 1 | W-2.0mm or D-3.0mm |
2.1m | 102x44 or 100x55 | 45x45x6mm | 1 | W-2.0mm or D-3.0mm |
2.4m | 102x44 or 100x55 | 45x45x6mm | 1 | W-2.0mm or D-3.0mm |
2.7m | 102x44 or 100x55 | 50x50x6mm | 1 | W-2.0mm or D-3.0mm |
3.0m | 127x76 | 50x50x6mm | 2 | W-2.5mm or D-3.5mm |
3.6m | 127x76 | 50x50x6mm | 2 | W-2.5mm or D-3.5mm |
9.Packing:
10.Shipping
11.Certification:
