8x8 fence panels/temporary galvanized wire mesh fence

Specifications

8x8 fence panels
1.factory price
2.ISO9001:2008
3.big discount
4.FREE SAMPLE



Different specifications are available according to customer's request

following are three style of fence we manufacture



Style 1, Temporary Fence for Australia Market



1. Main markets:

Australia, New Zealand, Canada, America, European countries, and Asia countries.



2. Material:

Superior quality low carbon steel wire Q195,Q235



3. Surface treatment:

Hot-dipped galvanized



4. Temporary Fencing Panel

 Material: Low carbon steel wire, hot-dipped galvanized wire

 Wire diameter: 3mm, 3.76mm, 4mm, 4.5mm...etc

 Hole distance: 50*50mm, 75*75mm, 50*100mm, 75*100mm, 60*150mm,...etc

 Height*length: 2.1*2.4m,1.8*2.4m



5. Temporary Fencing Pipe

 Pipe out diameter: 30mm, 32mm, 38mm, 40mm, 42mm, 48mm, ... etc

 Pipe thickness: 1.7mm, 1.8mm, 2.0mm, etc



6. Temporary fencing MOST POPULAR specs table for reference:

Frame	Mesh Size	Wire Thickness	Surface Treatment	Panel Width	Heitht
32*1.5m 42*1.5m 48*1.5m	50*150mm 50*200mm 75*150mm 75*300mm 100*300mm	3.0mm 3.5mm 3.8mm 4.0mm	1. Galvanized & Electrostatic Polyester Coated 2. Hot Dipped Galvanized	2.50m 3.00m	1800mm 2100mm 2400mm



7. Temporary Fecning Clips:

Galvanized iron bars 4mm thickness



8. Temporary fencing feet:

size: 600*220*150mm;  30kg with concrete, or as customer's request

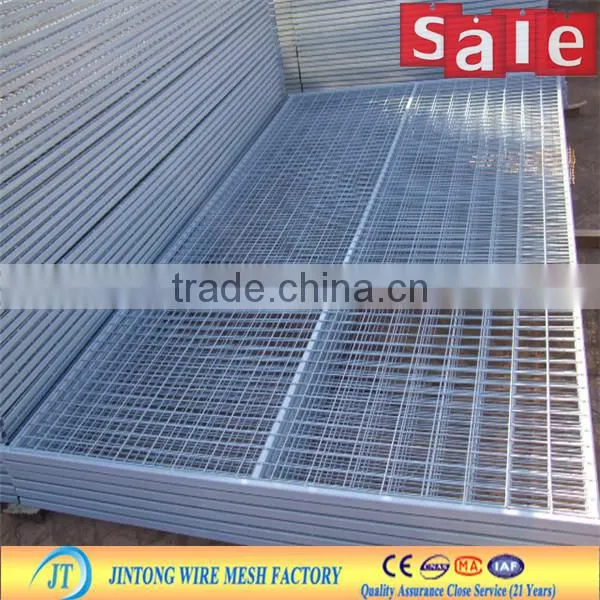

Pictures as following:









Style 2, Temporary fence for Canada Market



1. Main markets: Canada, Brazil, Poland and the United States ,and other countries.



2. Product Material:   Carbon steel wire.



3. Surface treatment: electric galvanized twice

                                 electric galvanized then PVC /powder coating.



4. Process of production:  cutting wire and tubes---welding to mesh fence- grinding the welds - powder/pvc coating-drying- container loading



5. Normal specification of Temporary Fence American/Canada-Removble fencing :

Different specifications and colors are available according to customers' special inquiry or detailed drawings.



6. Usage:

Secure construction sites, private property, major public, events, sports, concerts, festivals and gatherings etc.



Pictures as following:











Style 3, Crowd control barrier





5. ONE POPULAR SPECS AS FOLLOWING:



6. Other specifications for choose:

• Panel size( (HxL) ): 1100X2100mm,1100X2200mm,1100X2500mm
• Frame pipe: 20mm, 25mm, 32mm, 40mm, 42mm, 48mmO.D
• Infill Picket: 14mm, 16mm, 20mm, 25mmO.D
• Spacing: 60mm, 100mm, 190mm, 200mm



7. Feet styles:

flat feet and claw feet

flat feet; 600*60*6mm

Pictures as following:
