Parking Lot Barrier (ISO Factory)

Parking Lot Barrier (ISO Factory) thumbnail-1
Parking Lot Barrier (ISO Factory) photo-1
US$ 15 - 26.6 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Jintong
Model Number:
JT1201
Contact Supplier Request Quote Chat Now
Anping Jintong Wire Mesh Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang port tianjin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Jintong
Model Number JT1201
Frame Material Metal
Metal Type Steel
Pressure Treated Wood Type Heat Treated
Frame Finishing Powder Coated
Feature Easily Assembled, Eco Friendly, FSC, Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, Tempered Glass, TFT, Waterproof

Specifications

parking lot barrier
1.Big mateiral in store
2.Free samples
3.Factory price
4.Qulity assurance close service



Different specifications are available according to customer's request

following are three style of fence we manufacture


Product Description





Style 1, Temporary Fence for Australia Market



1. Main markets:

Australia, New Zealand, Canada, America, European countries, and Asia countries.



2. Material:

Superior quality low carbon steel wire Q195,Q235



3. Surface treatment:

Hot-dipped galvanized



4. Temporary Fencing Panel

 Material: Low carbon steel wire, hot-dipped galvanized wire

 Wire diameter: 3mm, 3.76mm, 4mm, 4.5mm...etc

 Hole distance: 50*50mm, 75*75mm, 50*100mm, 75*100mm, 60*150mm,...etc

 Height*length: 2.1*2.4m,1.8*2.4m



5. Temporary Fencing Pipe

 Pipe out diameter: 30mm, 32mm, 38mm, 40mm, 42mm, 48mm, ... etc

 Pipe thickness: 1.7mm, 1.8mm, 2.0mm, etc



6. Temporary fencing MOST POPULAR specs table for reference:

Frame Mesh Size Wire Thickness Surface Treatment Panel Width Heitht

32*1.5m

42*1.5m

48*1.5m

50*150mm

50*200mm

75*150mm

75*300mm

100*300mm

3.0mm

3.5mm

3.8mm

4.0mm

1. Galvanized & Electrostatic Polyester Coated

2. Hot Dipped Galvanized

2.50m

3.00m

1800mm

2100mm

2400mm



7. Temporary Fecning Clips:

Galvanized iron bars 4mm thickness



8. Temporary fencing feet:

size: 600*220*150mm;  30kg with concrete, or as customer's request





Pictures as following:

 parking lot barrier (ISO factory)parking lot barrier (ISO factory)



parking lot barrier (ISO factory)parking lot barrier (ISO factory)





Style 2, Temporary fence for Canada Market



1. Main markets: Canada, Brazil, Poland and the United States ,and other countries.



2. Product Material:   Carbon steel wire.



3. Surface treatment: electric galvanized twice

                                 electric galvanized then PVC /powder coating.



4. Process of production:  cutting wire and tubes---welding to mesh fence- grinding the welds - powder/pvc coating-drying- container loading



5. Normal specification of Temporary Fence American/Canada-Removble fencing :

Specification

Normal size

Wire

3.0mm, 3.5mm(popular), 4.0mm and so on.

Opening

popular 50 x 100mm (2’’ x 4’’),60*120mm,100*300mm

Height x Length

H:3.75’, 4’, 5’ 6’,7’ & 8’;          L: 8’, 9.5’ & 10’ etc

Frame &

Middle pipe

30*30*2mm, 30*30*1.5mm, 25*25*2mm, 25*25*1.5mm, 20*20*2mm ,etc

Feet

863mm x 89mm x 7mm

Different specifications and colors are available according to customers' special inquiry or detailed drawings.



6. Usage:

Secure construction sites, private property, major public, events, sports, concerts, festivals and gatherings etc.



Pictures as following:

parking lot barrier (ISO factory)parking lot barrier (ISO factory)



 parking lot barrier (ISO factory)parking lot barrier (ISO factory)

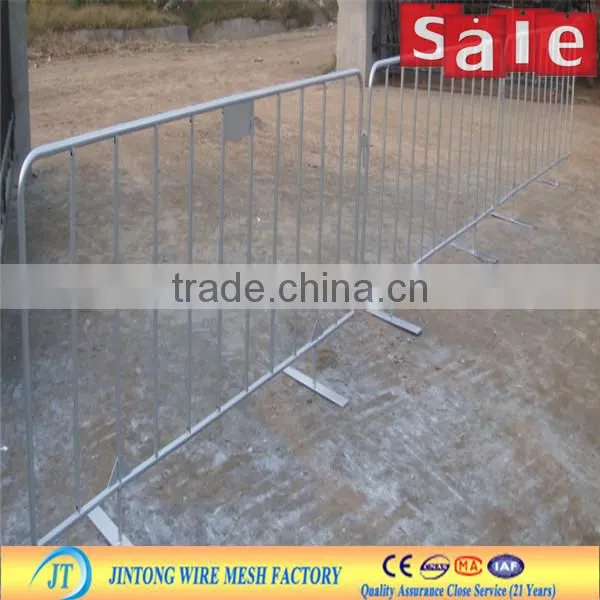

Style 3, Crowd control barrier



1. Name : high quality welded then hot-dipped galvanized crowd control barrier

2. Features: good material, long life time.

3. Application: road, farm,concerts, gathering,swimming pool

4. Surface treatment: hot-dipped galvanized



5. ONE POPULAR SPECS AS FOLLOWING:

  • material:Q235 steel
  • height: 1.1m
  • length;2.1m
  • spacing: 190mm
  • frame pipe:25mm
  • infill:20mm



6. Other specifications for choose:

  • Panel size( (HxL) ): 1100X2100mm,1100X2200mm,1100X2500mm
  • Frame pipe: 20mm, 25mm, 32mm, 40mm, 42mm, 48mmO.D
  • Infill Picket: 14mm, 16mm, 20mm, 25mmO.D
  • Spacing: 60mm, 100mm, 190mm, 200mm



7. Feet styles:

flat feet and claw feet

flat feet; 600*60*6mm

Pictures as following:

parking lot barrier (ISO factory)parking lot barrier (ISO factory)



parking lot barrier (ISO factory)parking lot barrier (ISO factory)
