Specifications
concrete block size1.factory price
2.big discount
3.big in stock
4.FREE SAMPLE

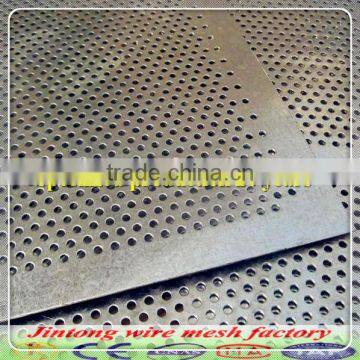

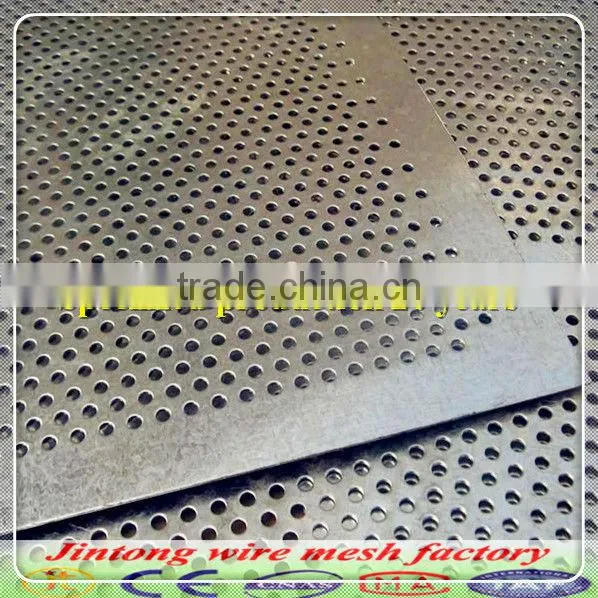

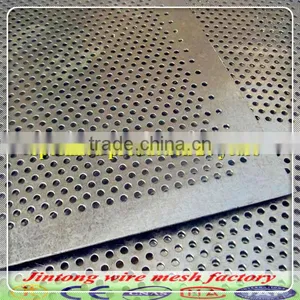

Round hole perforated metal sheet/punching hole wire mesh
Punching Hole Wire Mesh material:
1)Carbon Steel (mild steel, or galvanized treatment)
A.Carbon steel cold rolled. It has a quite bright surface. It is used in thickness from 0.3 to 3.0mm
B.Carbon steel hot rolled pickled or black. The former has an opaque surface and the second has a quite black surface. They are used for the thickness from 1.5mm and above.
2)Stainless Steel
Stainless steel is a general name for different kinds of steel alloyed with nickel and chrome, combined with other elements. The three most common types are EN 1.4301 (AISI 304), EN 1.4404 (AISI 316L) and EN 1.4016 (AISI 430) (chromatic steel). EN 1.4301 (AISI 304) is resistant to corrosion from humidity, and EN 1.4404 (AISI 316L) is resistant to corrsion form humidity and less aggressive acids. EN 1.4016 (AISI 430) is less corrosion resistant than the other two types.
3) Aluminium and its alloys
This meterial is particularly interesting because of its weight advantages, being only one-third the weight of steel.
4) Titanium
Titanium is characterized by an excellent resistance to corrosion, from the most oxidant acids to saline atmospheres.
Punching Hole Wire Mesh information:
Length 2m-20m
Width 1m-2m
Thickness:7 Gauge 10 Gauge 11 Gauge 12 Gauge 15 Gauge 20 Gauge 28 Gauge, as require
Hole diameter 0.3mm-10mm
Hole distance 1mm-15mm,as request
Process:Stamping, leveling, cutting, bending, reeling, welding, shaping and surface treatment.
Hole shape: Round;Rectangular hole; Square; Triangle; Diamond; Hexagonal; Cross; Slotted; and other patterns according to your drawings or application requirement.
Punching Hole Wire Mesh usages:
insulating the sound in the municipal facilities, such as highway and railroad, the material of the ceiling and wall to absorb the sound, good shelves in the market, decorative exhibiting and selling platform, ventilate of grain depot.
Punching Hole Wire Mesh specifications:
|
Plate Material |
Thickness of Metal (mm) |
Hole Dia. (mm) |
Pitch (mm) |
Sheet Width (m) |
Sheet Length (m) |
Porosity (%) |
Weight (kg/m2) |
|
Rolling plate |
0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 | |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 | |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 | |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2.0 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5.0 | 8.0 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
|
Stainless steel plate |
0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
|
Aluminum plate |
0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 | 4.23 |
Remind: we can produce the perforated metal mesh/punching hole mesh according your require.

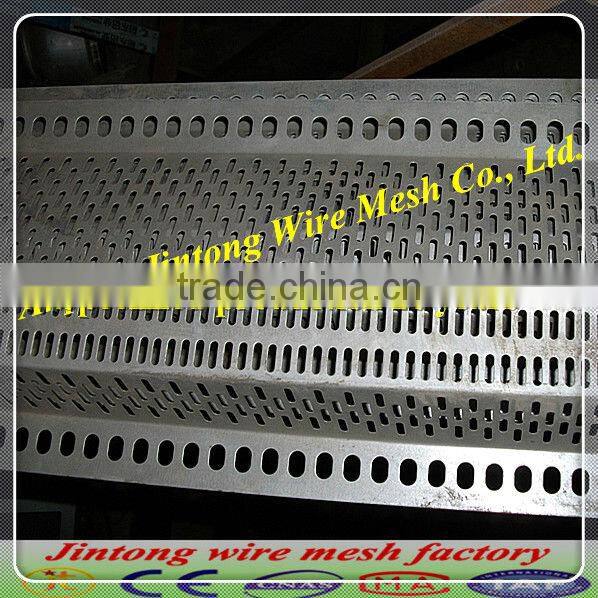

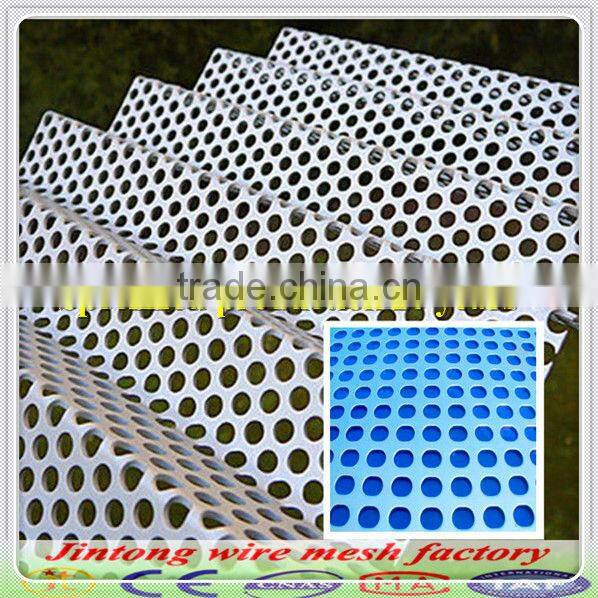

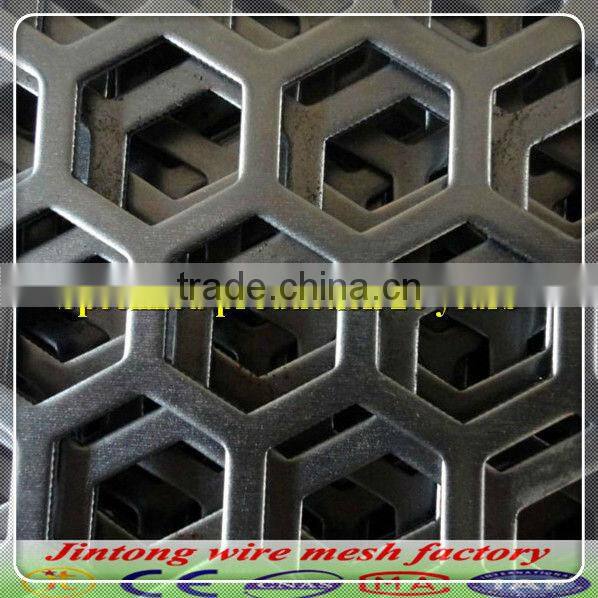

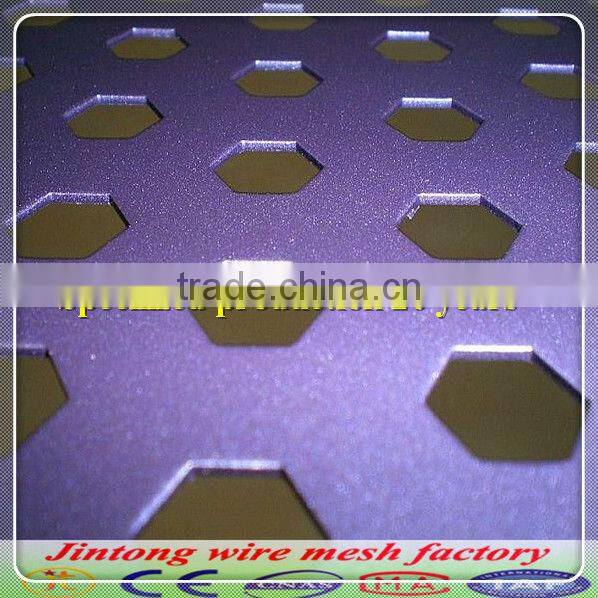

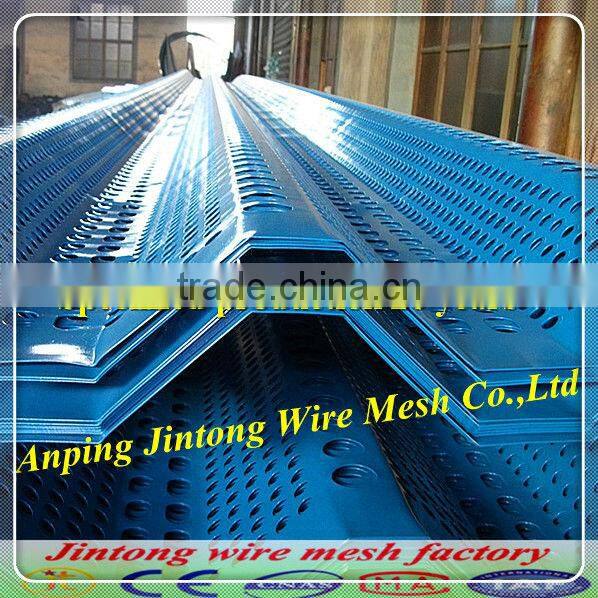

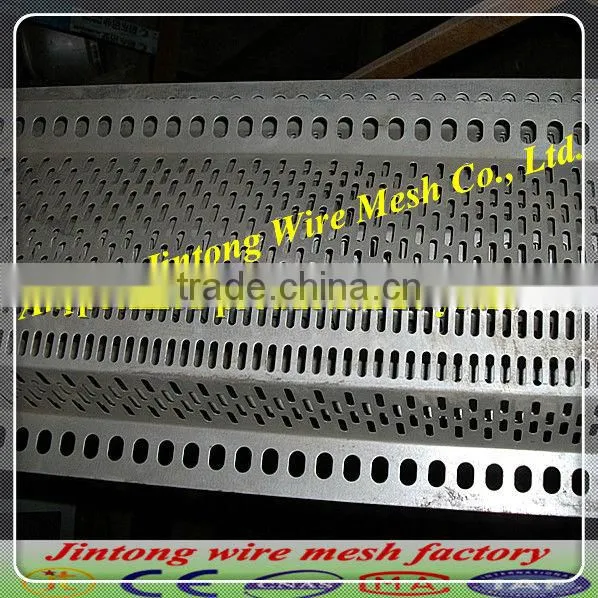

Punching Hole Wire Mesh pictures:
