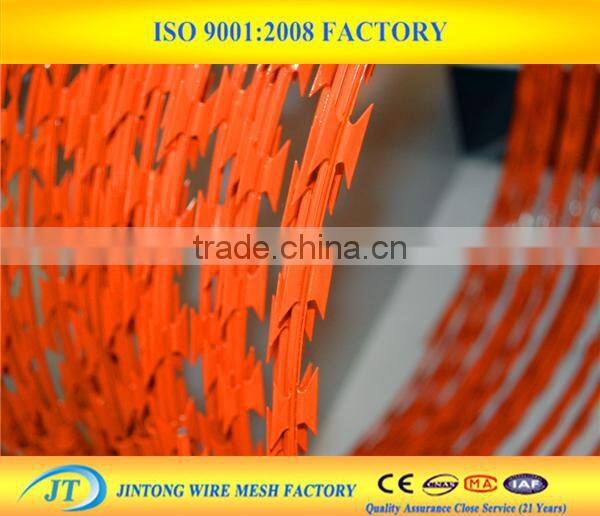

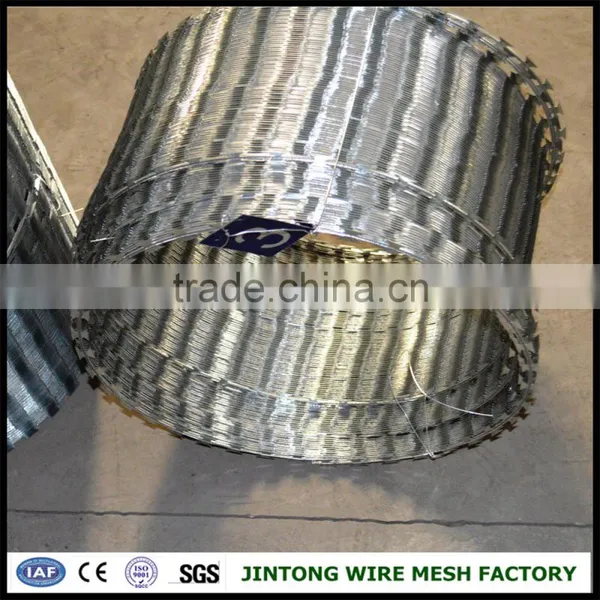

BTO22 blade type razor blade barbed wire concertina wire
1. Material:High Carbon Steel/Stainless Steel Wire, Hot Dip Gal. Iron Blade/Stainless Steel Blade
2.Type:hot dip galvanized/powder coated
3.Razor blade specifications BTO22 hot Galvanized Razor Wire/razor blade barbed wire
Reference Number | Thickness | Wire Dia | Barb Length | Barb Width | Barb spacing | |
JT-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | |
JT-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | |
JT-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |
JT-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 | |
JT-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 | |
JT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | |
JT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
BTO22 hot Galvanized Razor Wire/razor blade barbed wire
| Barbed Tape Wire Specification | ||||
| Loop Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil |

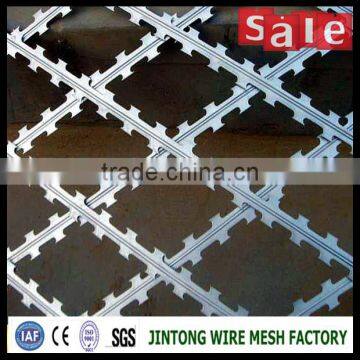

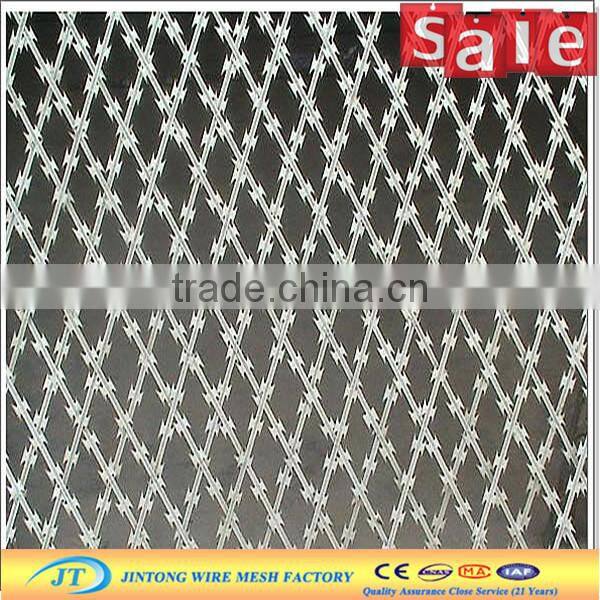

| 450mm | 56 | 8-9m(3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11M(3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
4.Features: BTO22 hot Galvanized Razor Wire/razor blade barbed wire

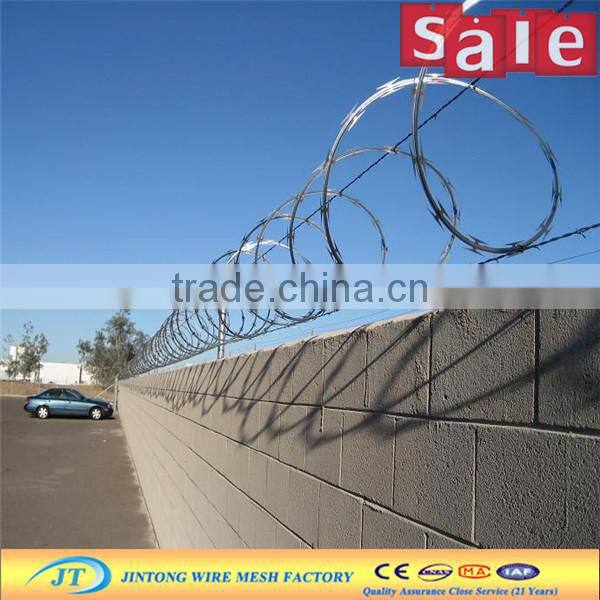

Razor Wire is also named Tape Wire, Razor Tape Wire, Barbed Tape or Barbed Tape Wire. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

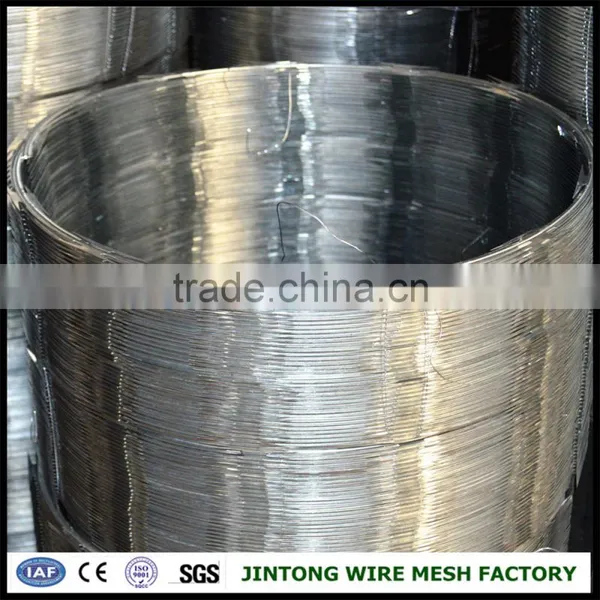

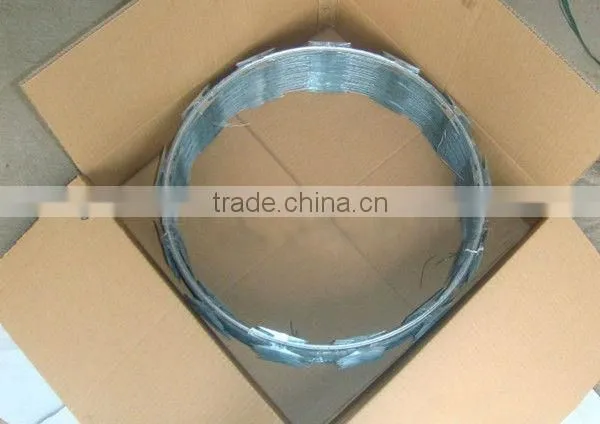

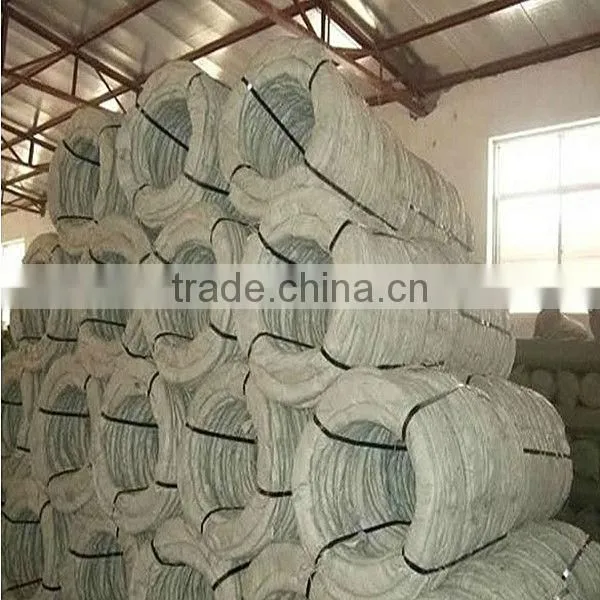

5.Packing: In coils by bulk, carton or pallet according to custmoers request.
BTO22 hot Galvanized Razor Wire/razor blade barbed wire
6.Application: Razor Wire is widely used by in military field, prisons, detention houses, government
buildings and other national security facilities; it is also used as fence for cottage and society fence, and
other private buildings.
BTO22 hot Galvanized Razor Wire/razor blade barbed wire
If you want to more informaiton,please send e-mail to me. Thanks in advance.
