electro galvanized razor barbed wire
1. Material:
Material:High Carbon Steel/Stainless Steel Wire, Hot Dip Gal. Iron Blade/Stainless Steel Blade
2.Type:
Barbed Wire, Electro Barbed Wire, Hot Dipped Barbed Wire and PVC Barbed Wire
3.Razor blade specifications
Reference Number |
Thickness |
Wire Dia |
Barb Length |
Barb Width |
Barb spacing |
|
JT-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
|
JT-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
|
JT-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
|
JT-28 |
0.5±0.05 |
2.5 |
28 |
15 |
45±1 |
|
JT-30 |
0.5±0.05 |
2.5 |
30 |
18 |
45±1 |
|
JT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
|
JT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
| Barbed Tape Wire Specification | ||||
| Loop Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11M(3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
4.Features:
Razor Wire is also named Tape Wire, Razor Tape Wire, Barbed Tape or Barbed Tape Wire. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

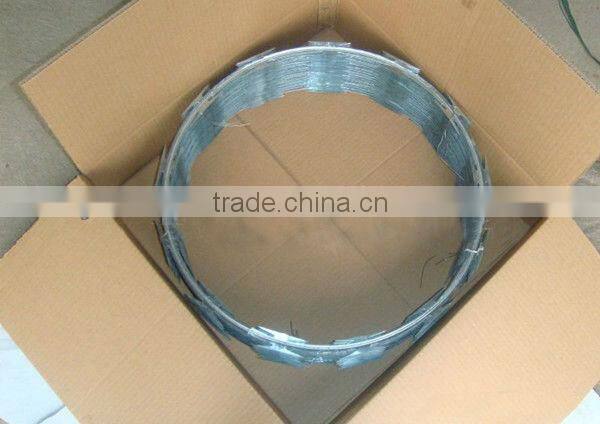

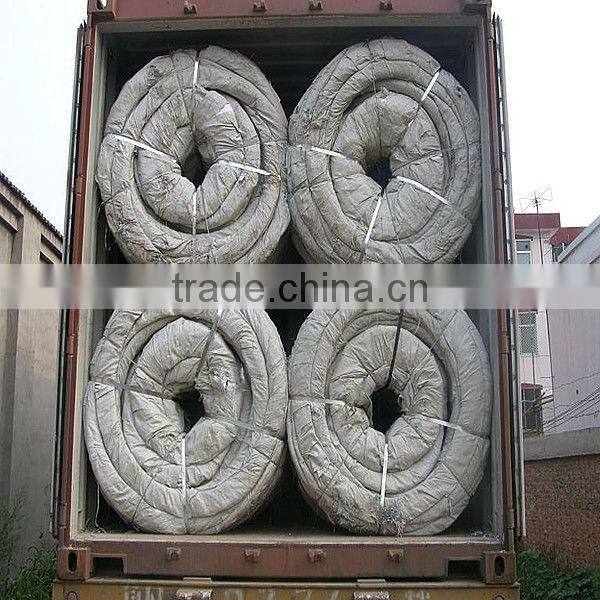

5.Packing: In coils by bulk, carton or pallet according to custmoers request.
6.Application: Razor Wire is widely used by in military field, prisons, detention
houses, government buildings and other national security facilities; it is also
used as fence for cottage and society fence, and other private buildings.
