anping hexagonal mesh/gabion baston/gabion box
1 Material:
Hot dipped galvanized wire, PVC coated Wire, Galvanized aluminum alloy wire etc.
2 Details:

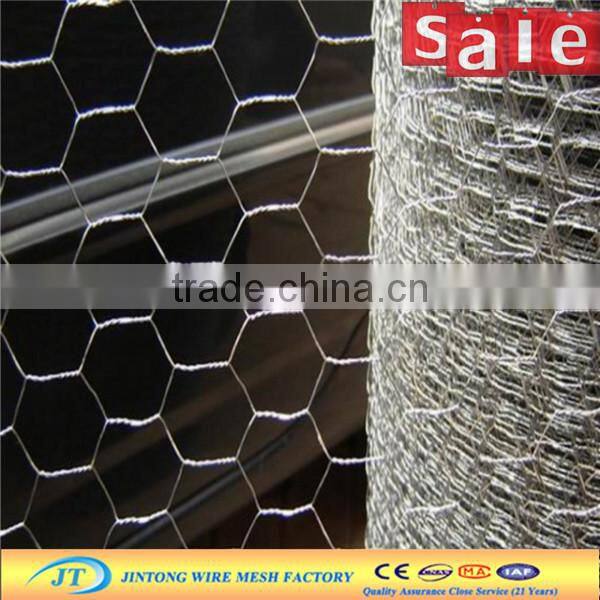

(1)Gabion Boxed is made of steel mesh with the type 6x8 mesh 8x10 mesh.
(2) The diameter of the wire mesh has two types: 2.7 or 3.0 mm.

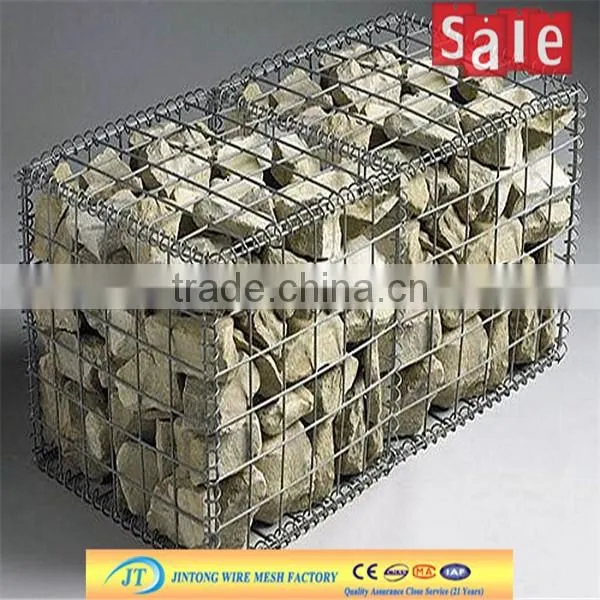

(3)The gabion element is in the shape of block or regular cube size. These special wire bins are made of robust wire, filled with the vibrations at the quarry and transport are accompanied by the lifting straps.

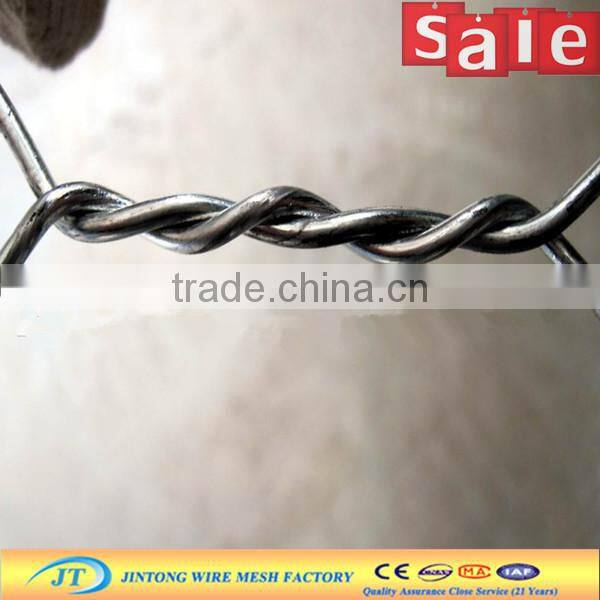

(4)The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.

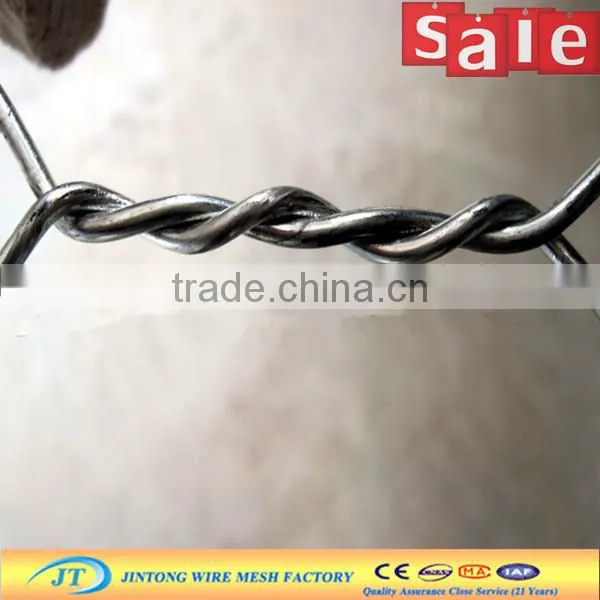

(5) Wires of gabion basket can be classified into mesh wire, selvedge wire and tie wire. The selvedge wire is thicker than the other two wires.

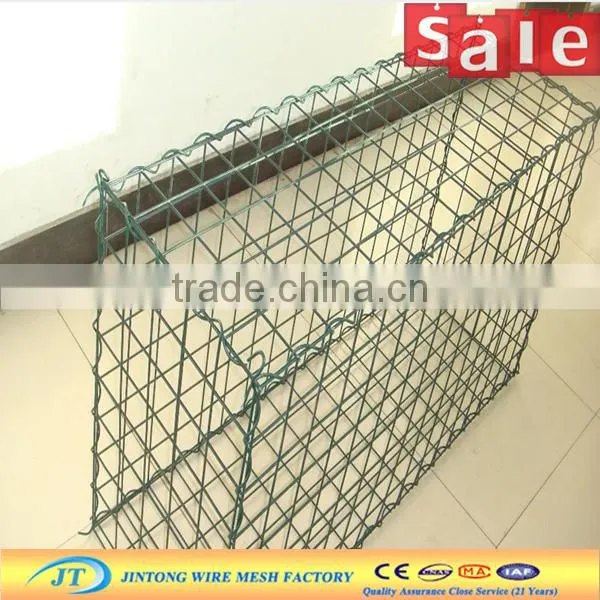

(6) The basket also can be produced by welding

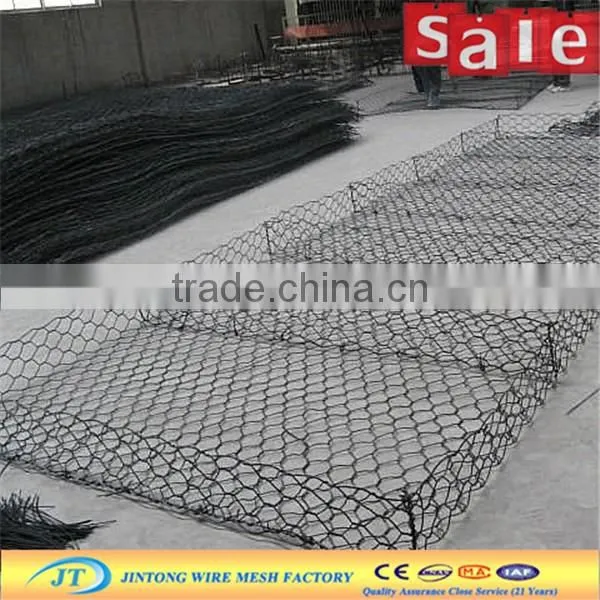

(7) Types:hexagonal gabion box,welded gabion box
3 Specification:
Mesh sizes |
Numbers of diaphragm |
Approximate dimensions and volumes |
Tolerance |
Color |
Wire diameter (mm) |
|||
|
Length (m) |
Width (m) |
Depth (m) |
Capacity (m³) |
|||||
|
60*80
80*100
80*120
100*120
120*150 |
1 |
2.00 |
1.00 |
0.30 |
0.60 |
Length±5%
Width±5%
Depth±5% |
Blue
Red
Green
Black
|
Heavily galvanized or galfan coated wire 2.00-3.00 Or PVC coated on heavily galvanized or galfan coated wire 2.0/3.0, 2.2/3.2, 2.4/3.4, 2.7/3.7, 2.0/4.0. |
1 |
2.00 |
1.00 |
0.50 |
1.00 |
||||
1 |
2.00 |
1.00 |
1.00 |
2.00 |
||||
2 |
3.00 |
1.00 |
0.30 |
0.90 |
||||
2 |
3.00 |
1.00 |
0.50 |
1.50 |
||||
2 |
3.00 |
1.00 |
1.00 |
3.00 |
||||
3 |
4.00 |
1.00 |
0.30 |
1.20 |
||||
3 |
4.00 |
1.00 |
0.50 |
2.00 |
||||
3 |
4.00 |
1.00 |
1.00 |
4.00 |
||||
1 |
2.00 |
0.50 |
0.50 |
0.50 |
||||
2 |
3.00 |
0.50 |
0.50 |
0.75 |
||||

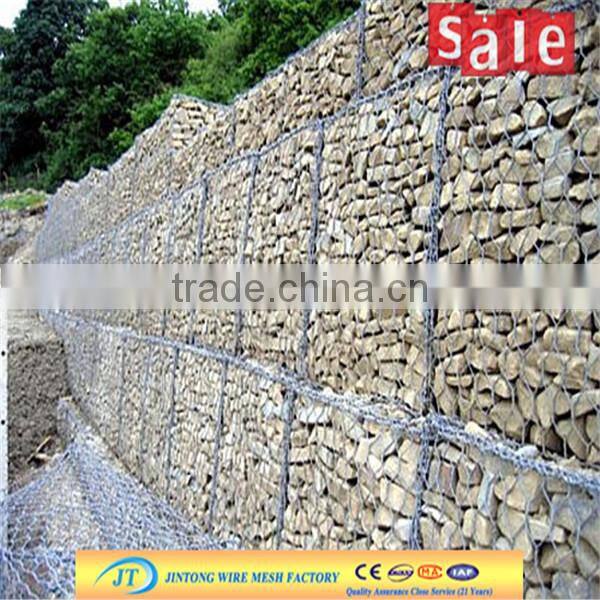

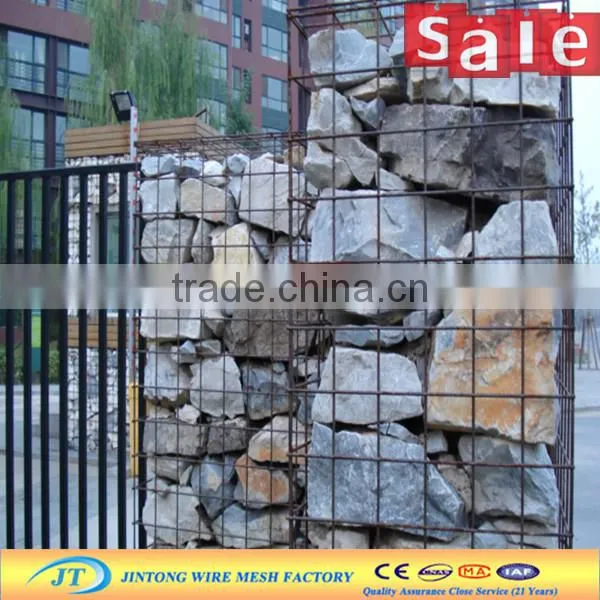

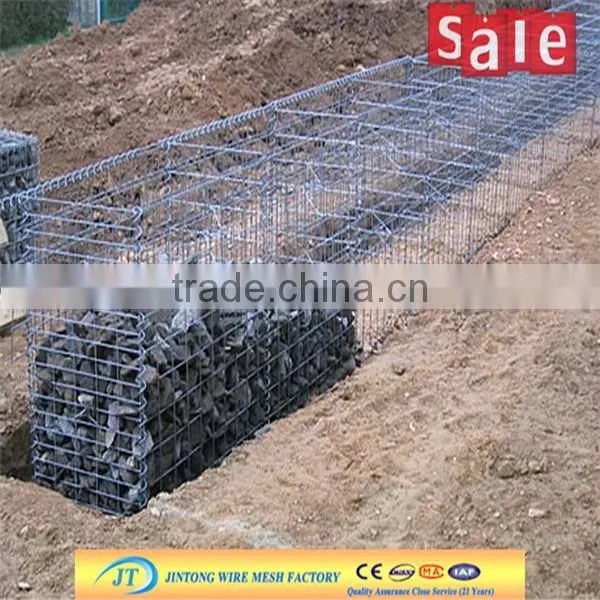

4 Application:
(1)Control and guide of water or flood
(2)Flood bank or guiding bank
(3)Preventing of rock breaking
(4)Water and soil protection
(5)Bridge protection
(6)Strengthening structure of soil
(7)Protection engineering of seaside area.

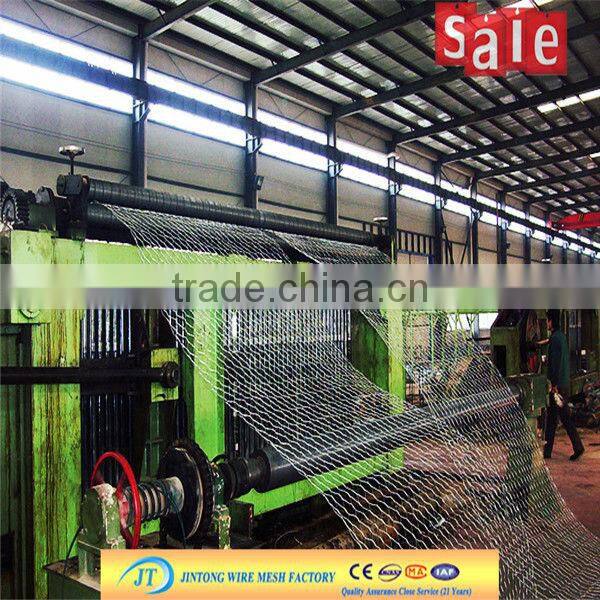

5 Manufacturer Line Of Hexagonal Gabion Box:
gabion box materials
1.Galvanized steel wire :low carbon steel wire
2.Zinc-5% aluminum-mixed mischmetal alloy steel wire ,a new-type material
3.Galvanized steel wire ,PVC or PE coating
Gabion Box Process

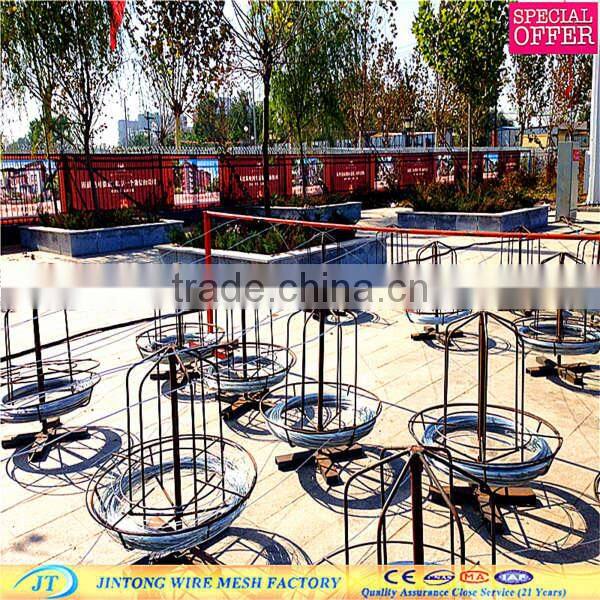

wire drawing-galvanized-galvanized after weaving or galvanized before weaving

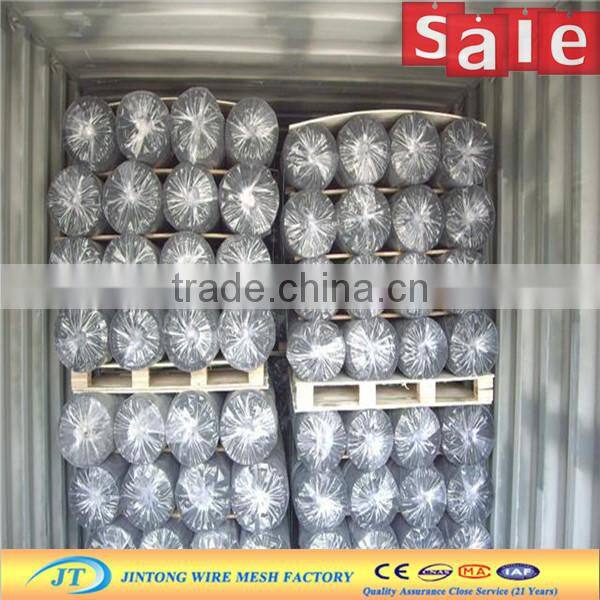

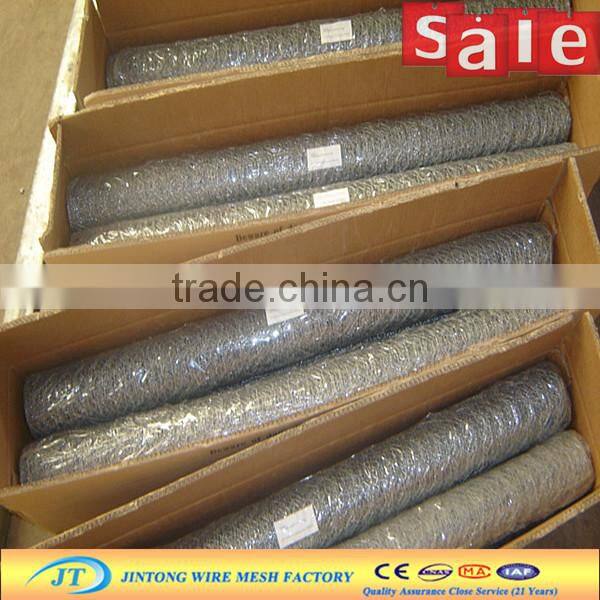

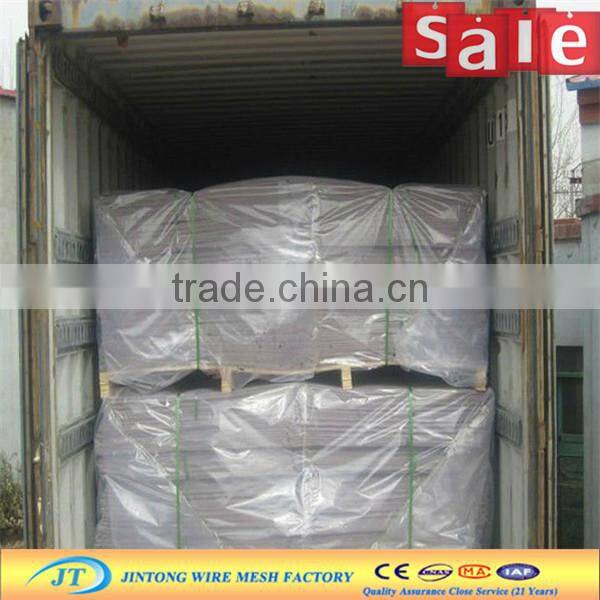

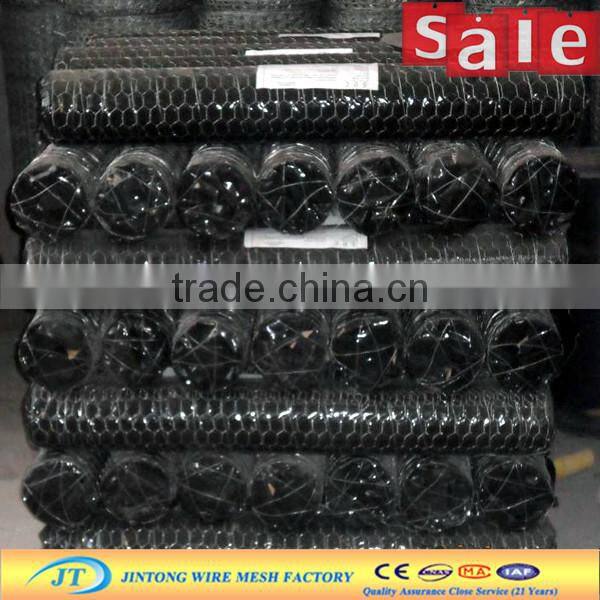

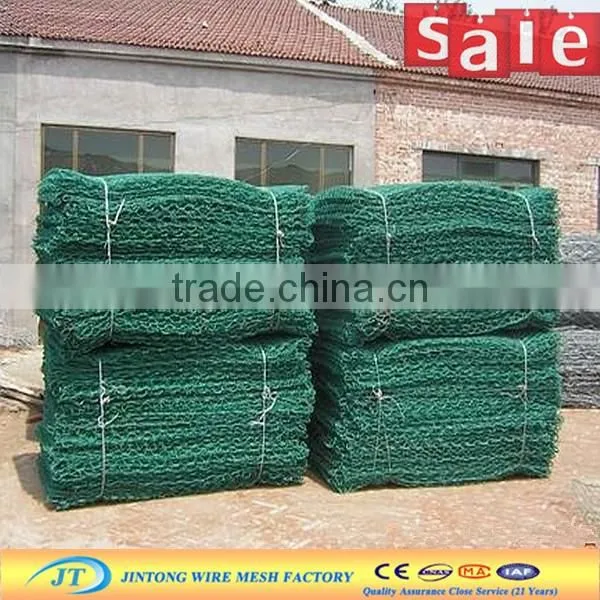

Gabion Box Packing
50-100 gabion wire mesh/per bundle,wrapped with 2 to steel strips
6 About Us
we will supply FREE samples.
