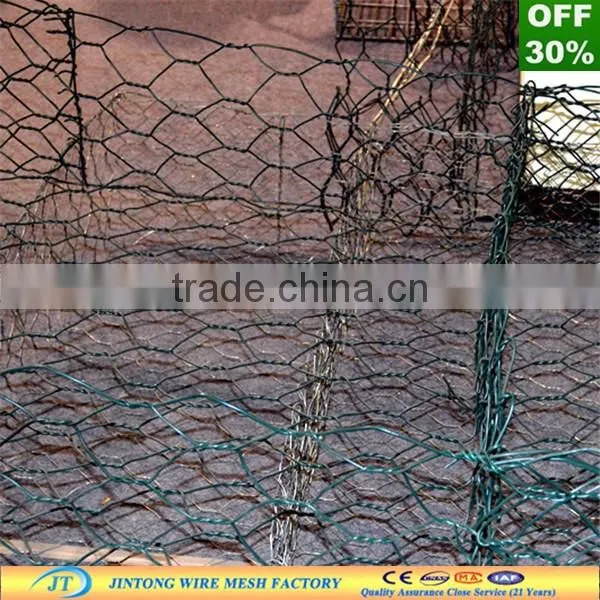

rock cage
Material: Electric Galvanized Gabion Mesh, Hot-Dipped Galvanized Gabion Mesh, Galfan Gabion Mesh,PVC Coated Gabion Mesh
Stone Gabions Basket Mesh Size:
2x1x1;3x1x1;4x1x1;5x1x1;6x1x1;3x1.5x1;4x2x1;5x2x1; 2x1x0.5;3x1x0.5;4x1x0.5;5x1x0.5;6x1x0.5;3x1.5x0.5;4x2x0.5;5x2x0.5.
Stone Gabion Basket(Box) Introduction:
1. Gabion is made of steel mesh with the type 8x10 mesh.
2. The diameter of the wire mesh has normally two types: 2.7 or 3.0 mm.
3. The gabion element is in the shape of block or regular cube size. These special wire bins are made of robust wire, filled with the vibrations at the quarry and transport are accompanied by the lifting straps.
4. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.
5. Wires of gabion basket can be classified into mesh wire, selvedge wire and tie wire. The selvedge wire is thicker than the other two wires.
Gabion boxes applications: Control and guide of water or flood ;Flood bank or guiding bank Preventing of rock breaking;and soil protection Bridge protection ;structure of soil;Protection engineering of seaside area.
Opening |
Wire Diameter(Metal Wire) (mm) |
Wire Diameter (PVC Coate)/ Inner/Outside(mm) |
60X80 |
φ2.0-2.8 |
φ2.0/3.0-2.5/3.5 |
80X100 |
φ2.0-3.2 |
φ2.0/3.0-2.8/3.8 |
80X120 |
φ2.0-3.2 |
φ2.0/3.0-2.8/3.8 |
100X120 |
φ2.0-3.4 |
φ2.0/3.0-2.8/3.8 |
100X150 |
φ2.0-3.4 |
φ2.0/3.0-2.8/3.8 |
120X150 |
φ2.0-4.0 |
φ2.0/3.0-3.0/4.0 |
1.Welded Gabion Box :
2.Hexagonal Gabion Box/Basket/Mesh:
3.Uesage:

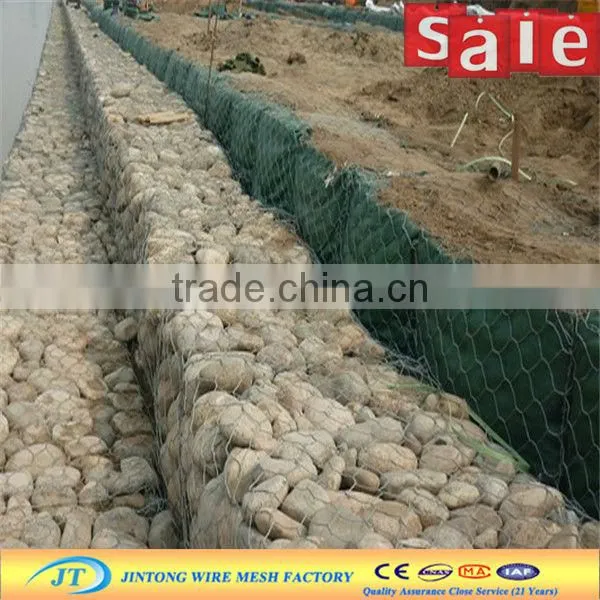

<1>.For river bank:
<2>. Preventing of rock breaking
With the development in production technology, All kinds of wire mesh and wire that we produced have reached advanced level, the products are exported to Southeast Asia, the Middle East, Canada, the United States and other countries and regions, Our company rely on the high quality, good reputations, the high quality after sale service,
we get the best reputations from most of our customers.
Following are some photos which shown our meeting with customers.
We are professional sales team, Please feel free to contact with us.
All your questions will receive our careful attention and prompt reply.
