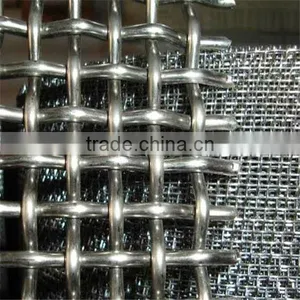

Crimped wire mesh
Material:
1.stainless steel wire (301 302 304 304L 316 316L 321)
2.High carbon steel wire, low carbon steel, medium carbon steel, white steeel wire, black wire
3. Galvanized iron wire, galvanized steel wire
4.Aluminum wire,copper wire,non-ferrous metal wire,Other materials are available on request
Weaving Patterns:Being pressed and then weaved. weave and crimping methods include plain/tabby weave, twilled weave, bidirectional intermediate crimp, tightened lock crimp, flat top crimp, bidirectional crimp, unilateral crimp, double crimped, single crimped, etc.
Characteristic:Good resistance against heat, acid, alkaline, corrosion. Firm structure.
General Use: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.
Quote data needed:
material + diameter + mesh + weight + weaving
Following is the specification :
Crimped Wire Mesh | ||||
Wire No. SWG | Wire diameter | Mesh/inch | Aperture mm | weight |
14 | 2.0 | 21 | 1 | 4.2 |
8 | 4.05 | 18 | 1 | 15 |
25 | 0.50 | 20 | 0.61 | 2.6 |
23 | 0.61 | 18 | 0.8 | 3.4 |
24 | 0.55 | 16 | 0.1 | 2.5 |
24 | 0.55 | 14 | 0.12 | 4 |
22 | 0.71 | 12 | 0.14 | 2.94 |
19 | 1 | 2.3 | 0.18 | 1.45 |
6 | 4.8 | 1.2 | 2 | 20 |
6 | 4.8 | 1 | 2 | 20 |
6 | 4.8 | 0.7 | 3 | 14 |
14 | 2.0 | 5.08 | 0.3 | 12 |
14 | 2.0 | 2.1 | 1 | 2.5 |
14 | 2.0 | 3.6 | 1.5 | 1.9 |
Some crimped wire mesh pictures for reference:
1.Crimped wire mesh weaving patterns
2.Crimped wire mesh panels:
3.Crimped wire mesh in rolls:
4.Crimped wire mesh application for pig:
