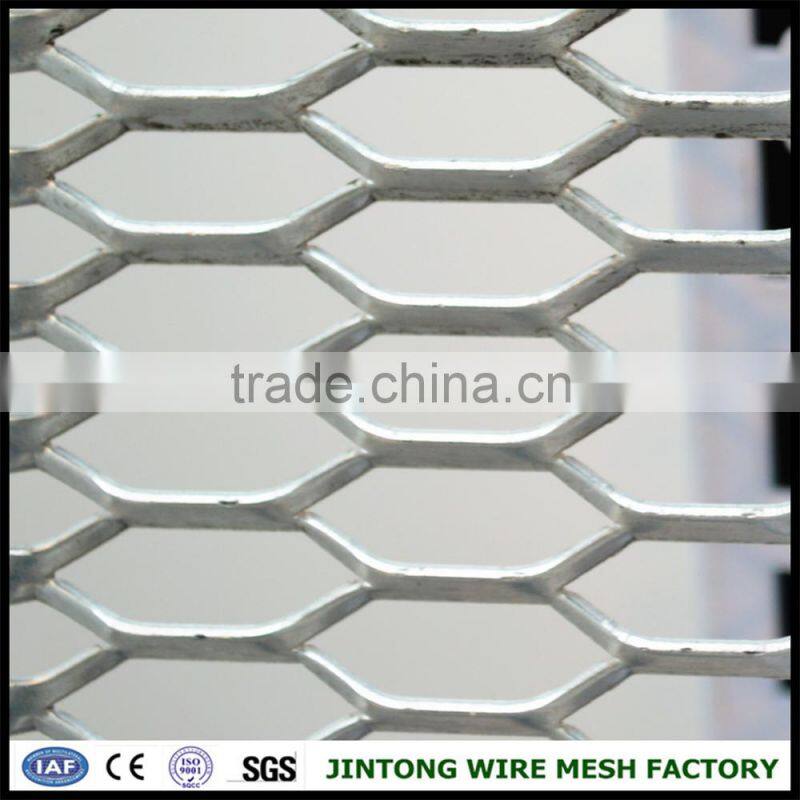

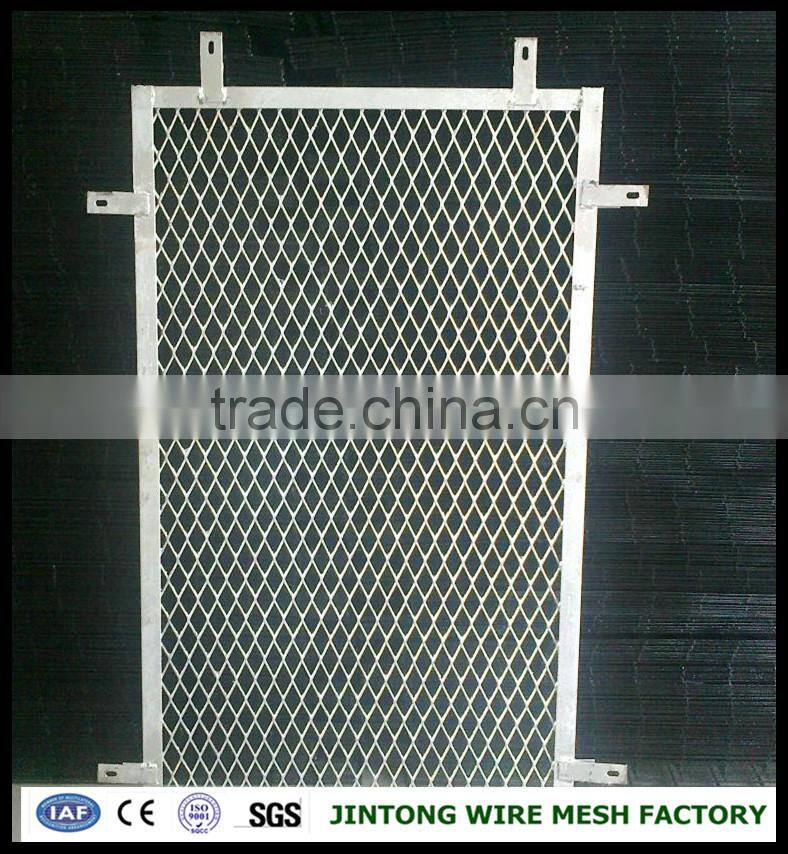

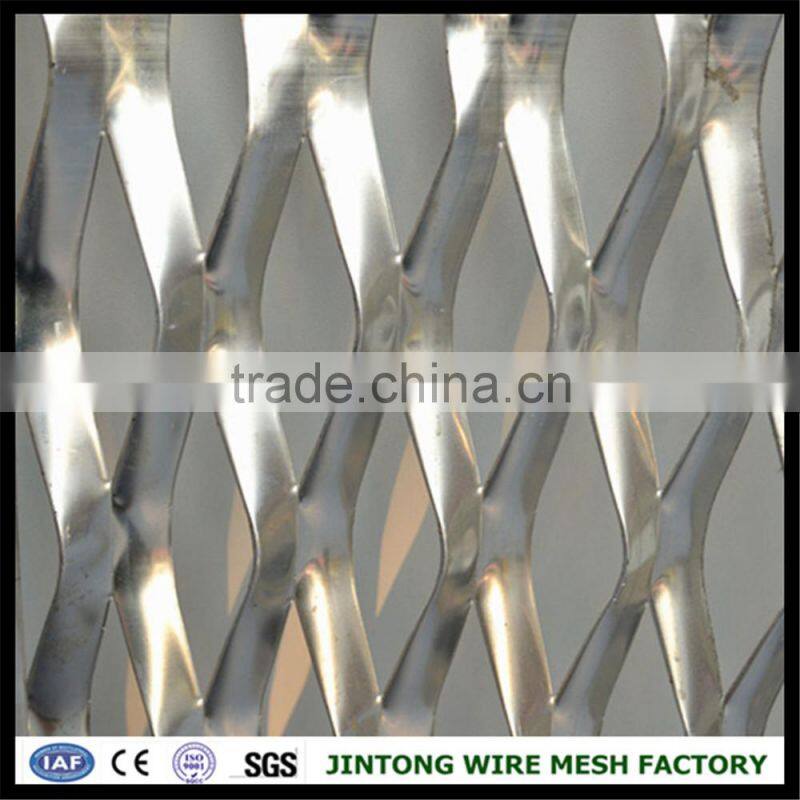

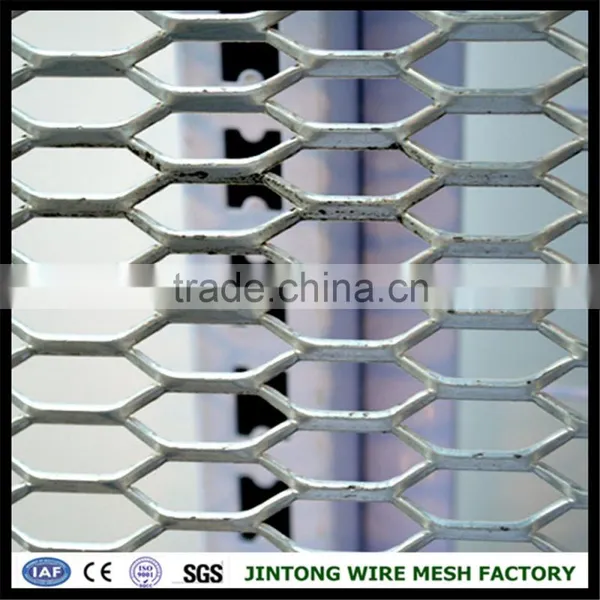

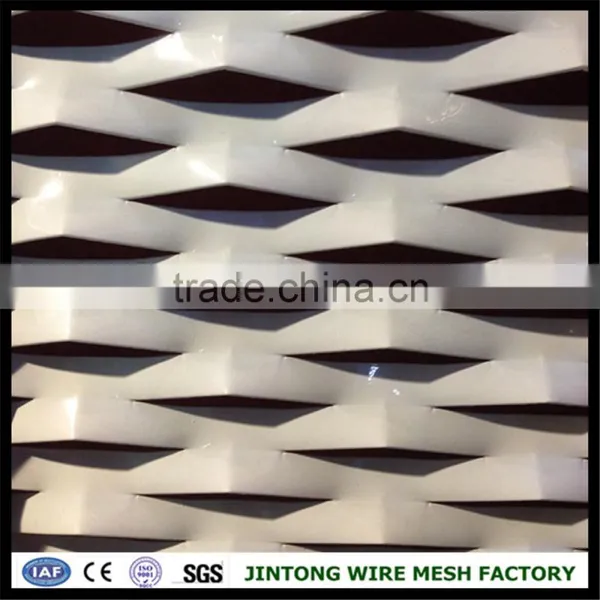

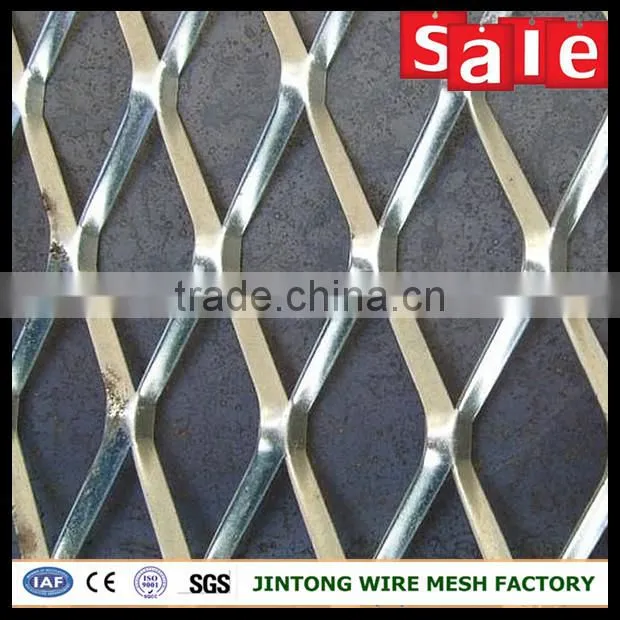

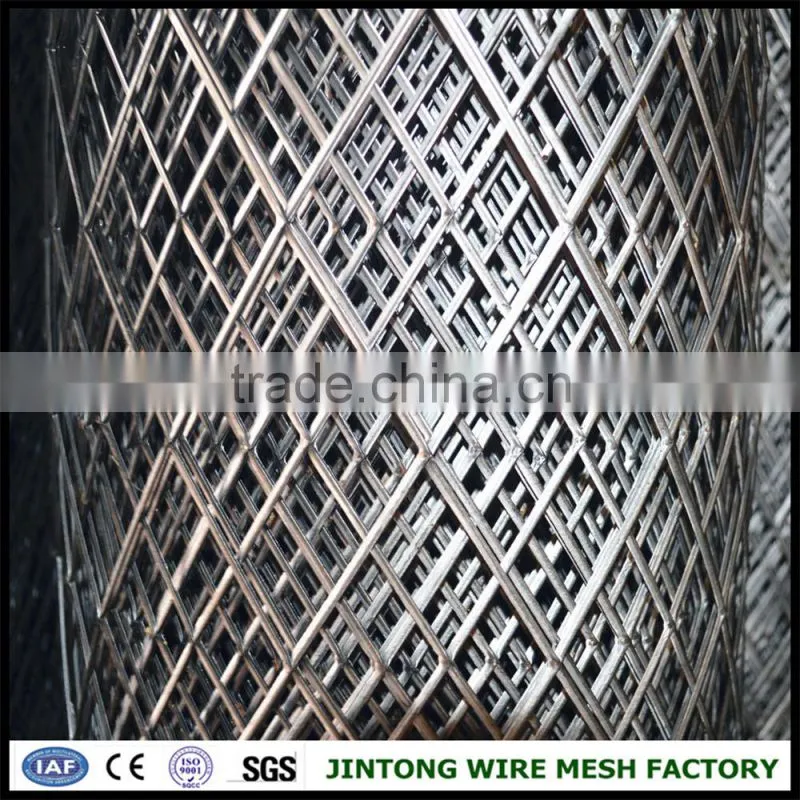

Expandable Sheet Metal Diamond Mesh

Name: Expandable Sheet Metal Diamond Mesh
Brand: Jintong
SKU: 140611568
Availability: InStock

Anping Jintong Wire Mesh Products Co., Ltd.

US$ 10.5 - 35 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Jintong

Model Number:

expanded metal sheet

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang Port Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name Jintong

Model Number expanded metal sheet

Material Other, Galvanized Iron Wire, Galvanized Iron Wire

Type Other, Expanded Mesh, diamond pattern light expanded metal mesh

Application Fence Mesh

Hole Shape Other, diamond mesh, Diamond,Hexagonal

Aperture at your request, 25*50mm

Wire Gauge at your request, 4mm

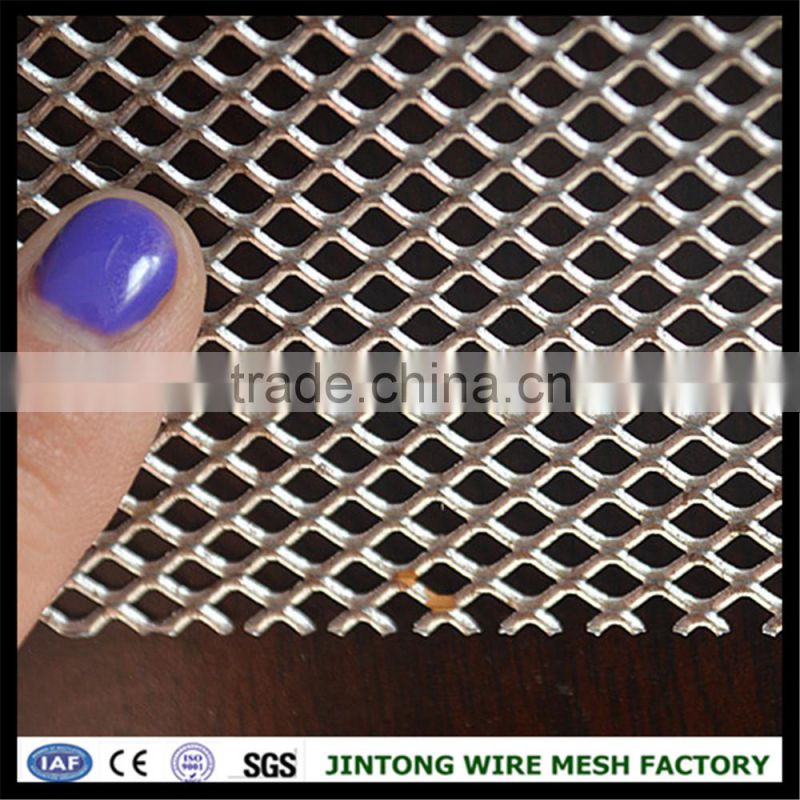

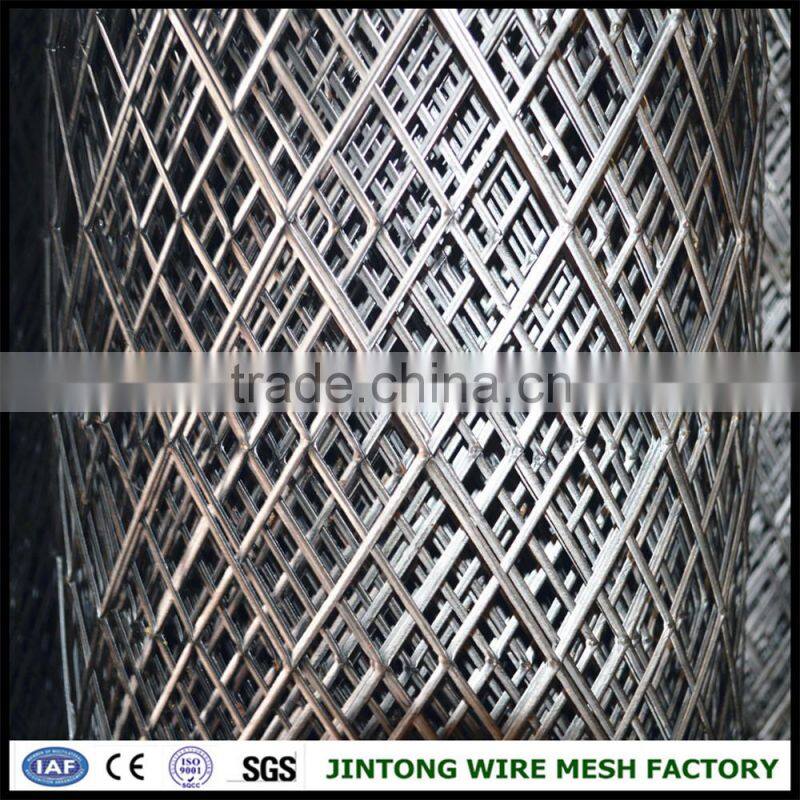

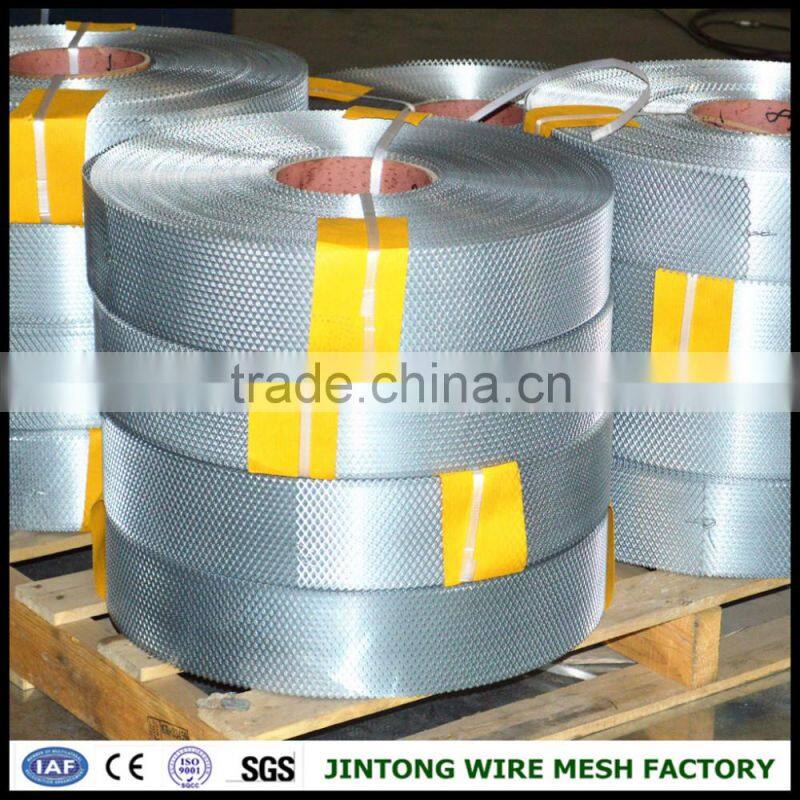

expandable sheet metal diamond mesh

Product Description

1)Materials For Expanded Metal:

Usual use carbon steel, aluminum metal, stainless steel metal, nickel metal and so on.

2)Hole Shapes:

Long holes, round holes, triangle holes, lightly pull scale holes, other pull wire netting, etc.

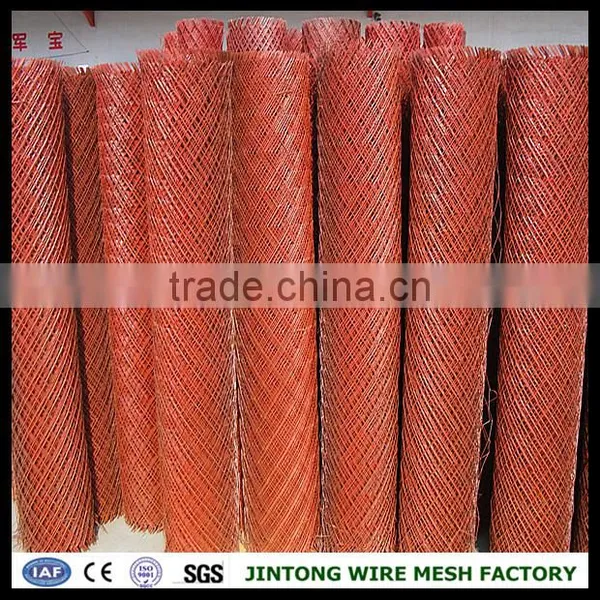

3)Surface Treatment For Expanded Metal Mesh:

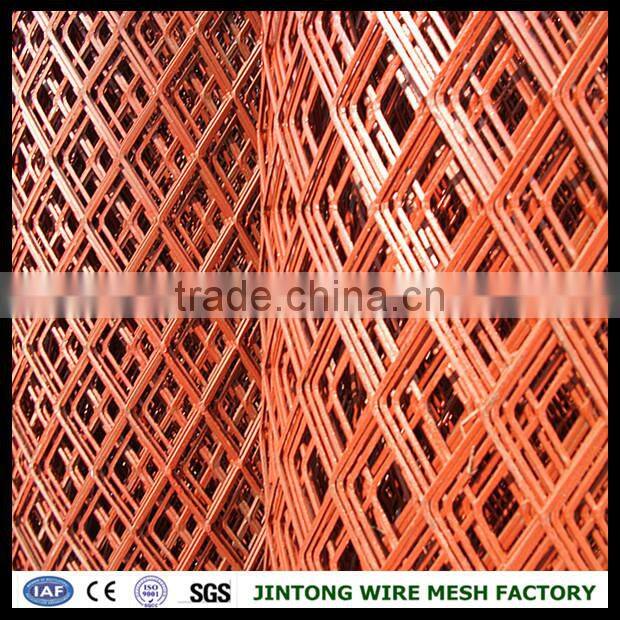

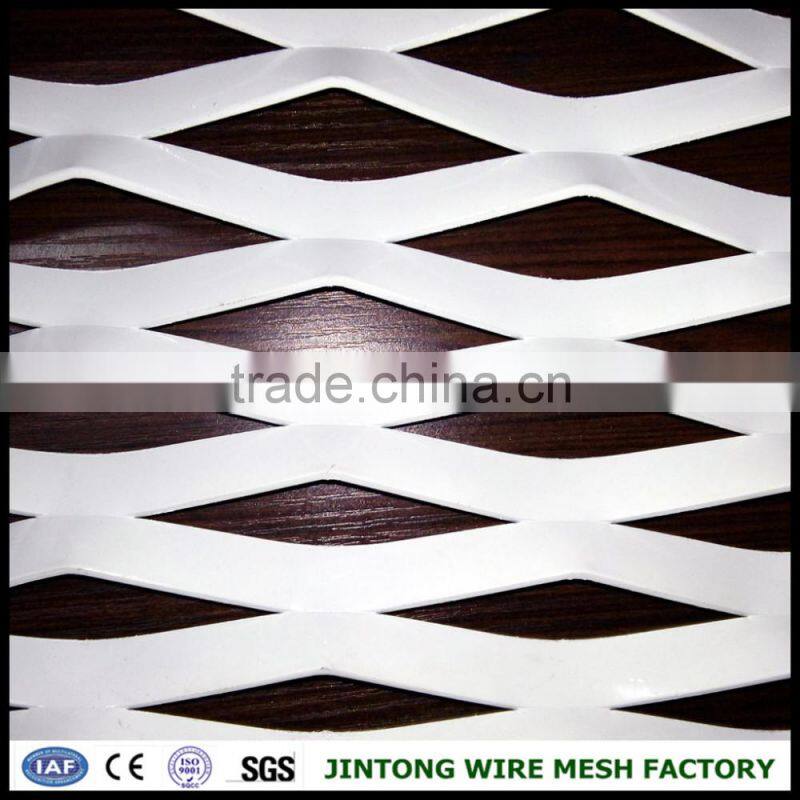

Hot-dipped, electrol galvanized, pvc-coated.

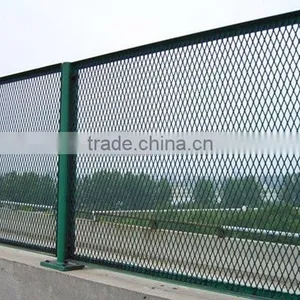

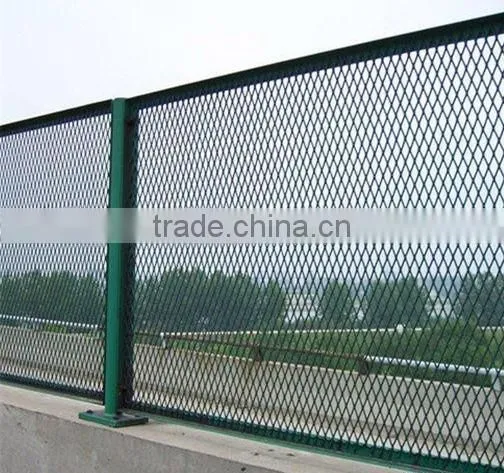

4)Usage For Expanded Metal Mesh:

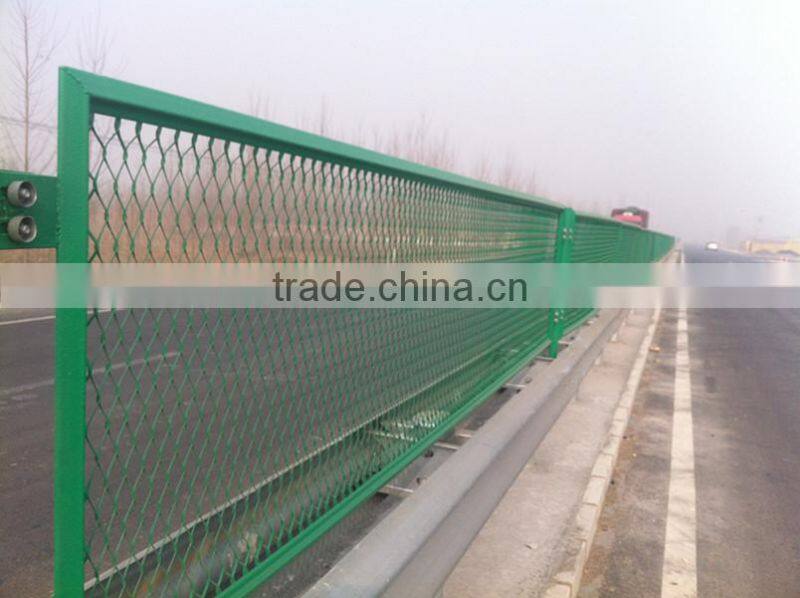

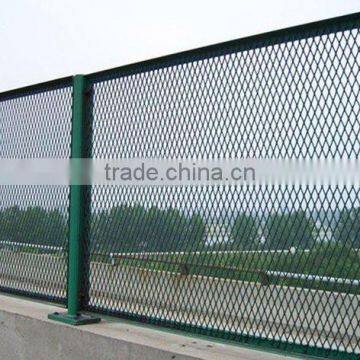

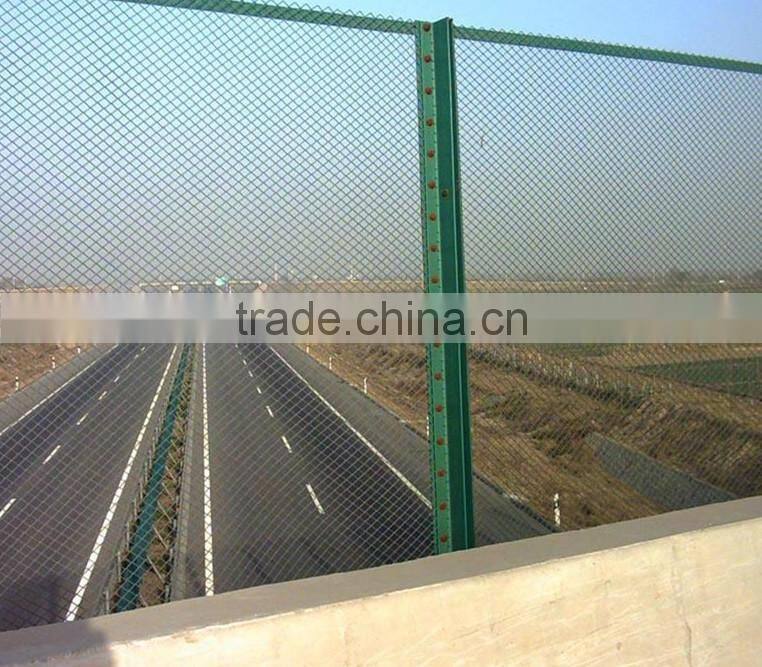

It is widely used in highway, railway, civil construction, water conservancy and

other construction; kinds of machinery, electrical appliances, windows protection

and aquaculture etc.

Special specification can be made according to customers specific requirements.

We also accept the supplied material.

5)Specifications

specifications: Expanded wire mesh				width (m)	length (m)	weight (kg/m²)
mesh thickness(mm)	distance short(mm)	distance long(mm)	strip(mm)	width (m)	length (m)	weight (kg/m²)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26
