Highway Guardrail hydraulic static pile driver
- 1000 Set / Sets per Month
- Shanghai Port Qingdao port Tianjin Port
- T/T Credit Card
Product Details
Condition: | New | Efficiency: | 2000mm/min,More than 300 posts per day | Piling Speed(m/min): | 1.2m/min |
Place of Origin: | Henan, China | Brand Name: | Allraising | Model Number: | OR-XYC230 |
Weight: | 2500kgs | Dimension(L*W*H): | 2600*2200*2900 | Certification: | ISO9001:2008 |
Product Description

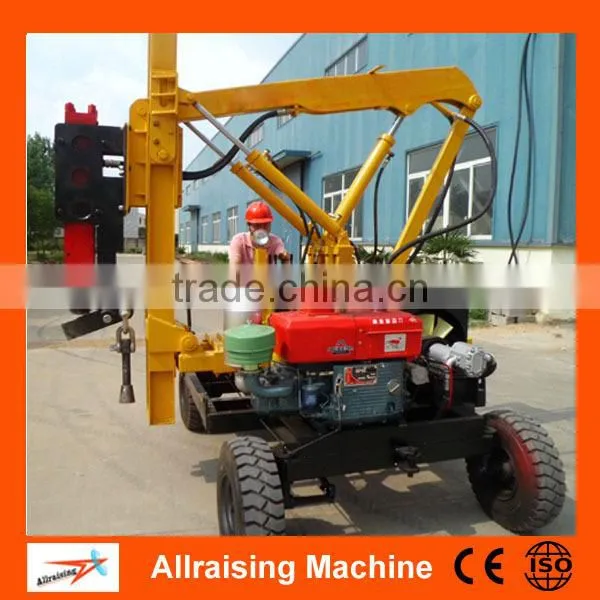

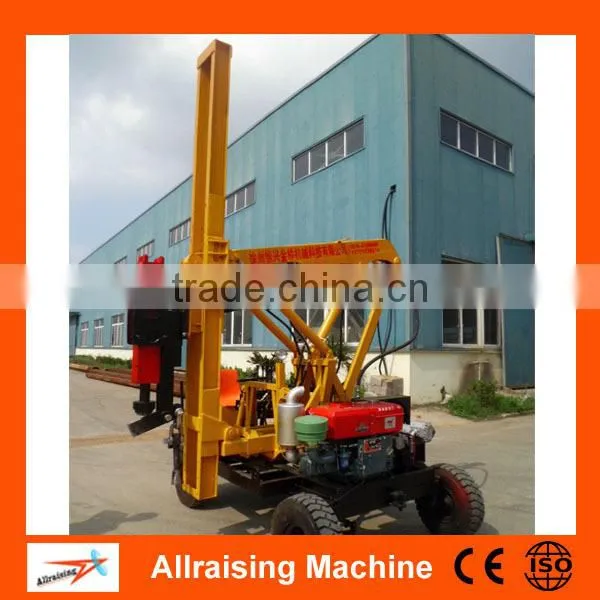

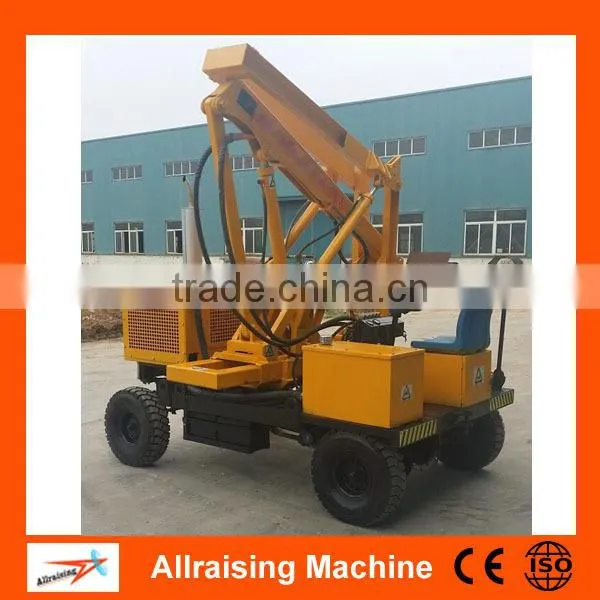

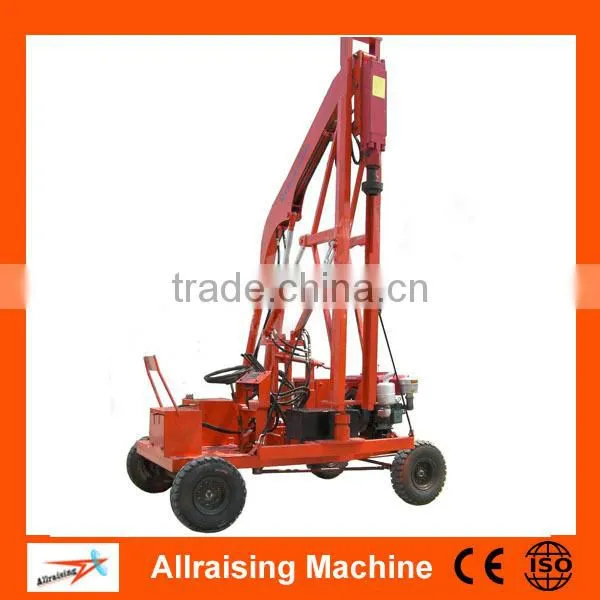

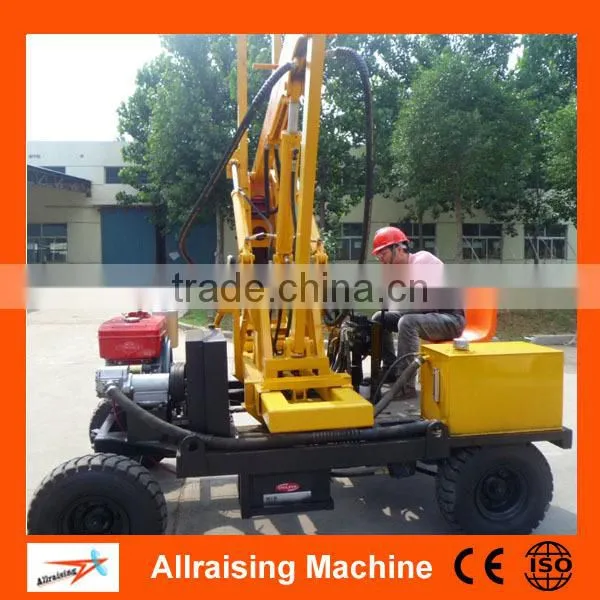

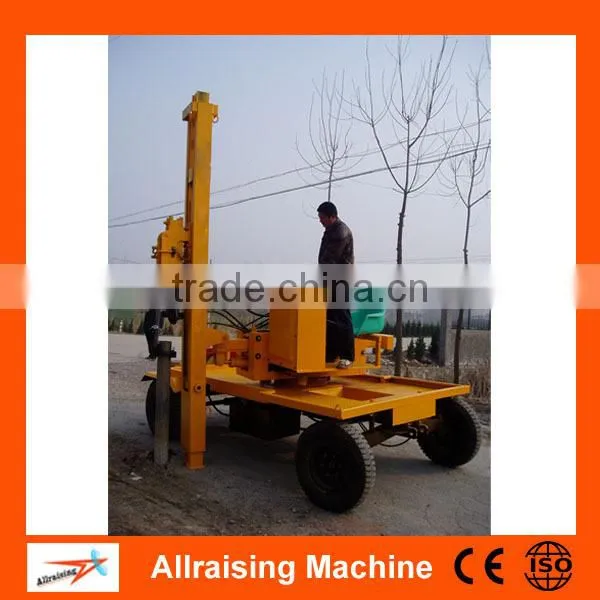

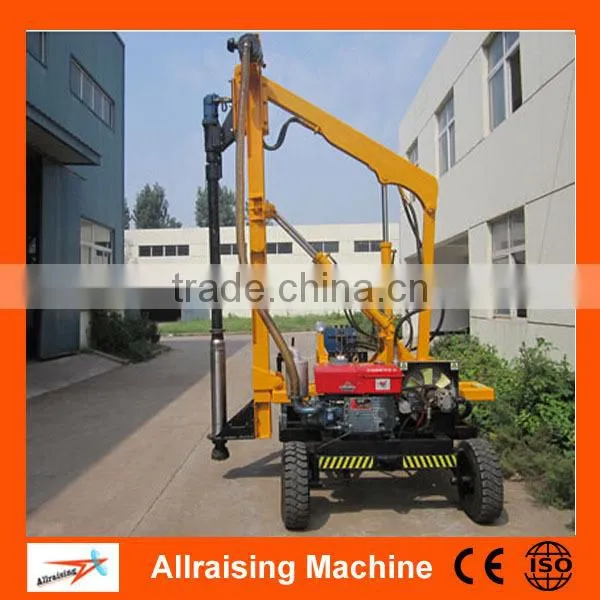

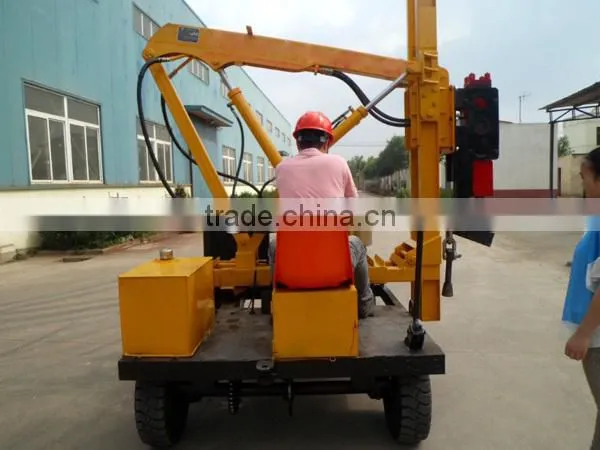

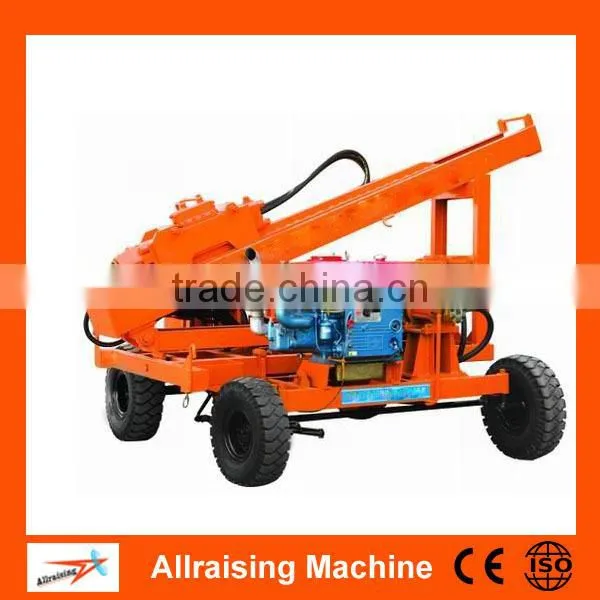

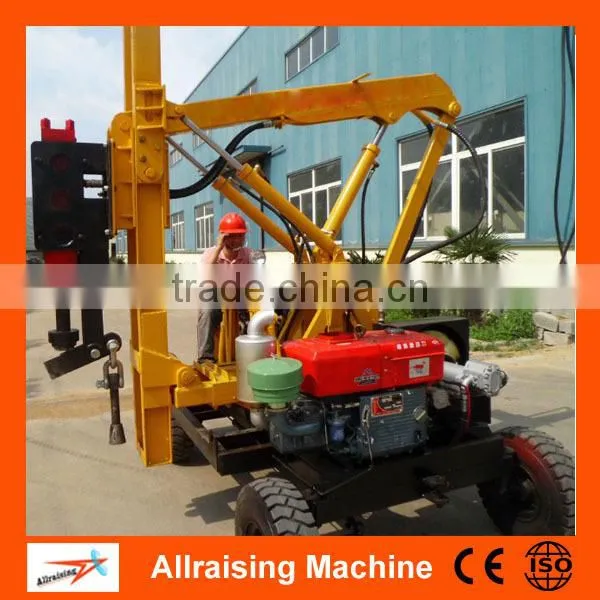

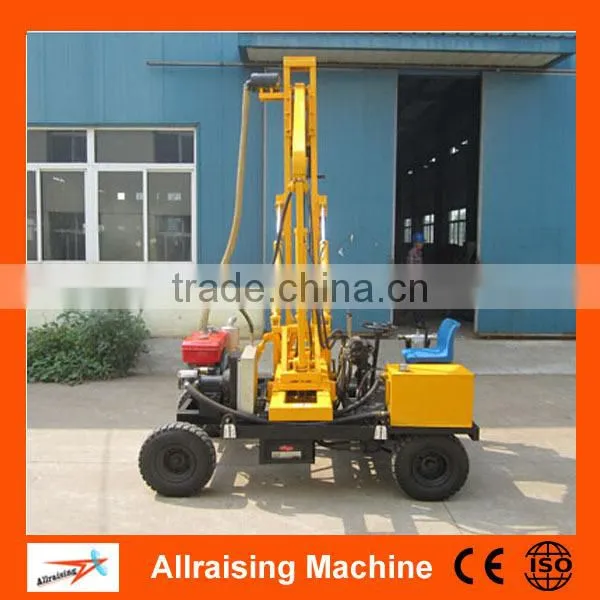

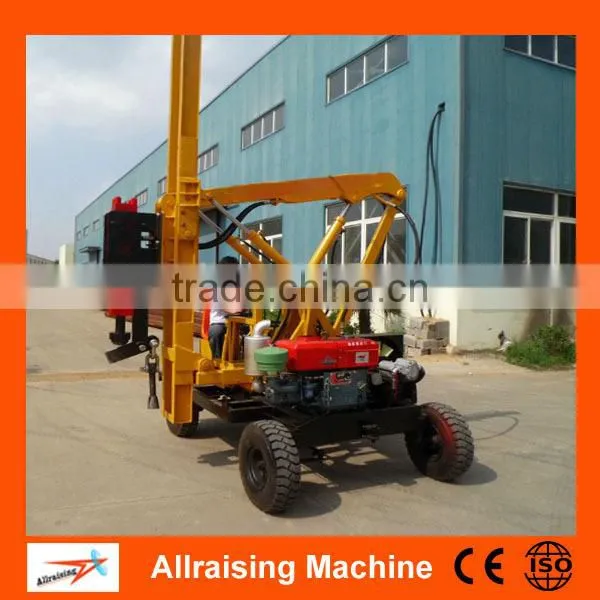

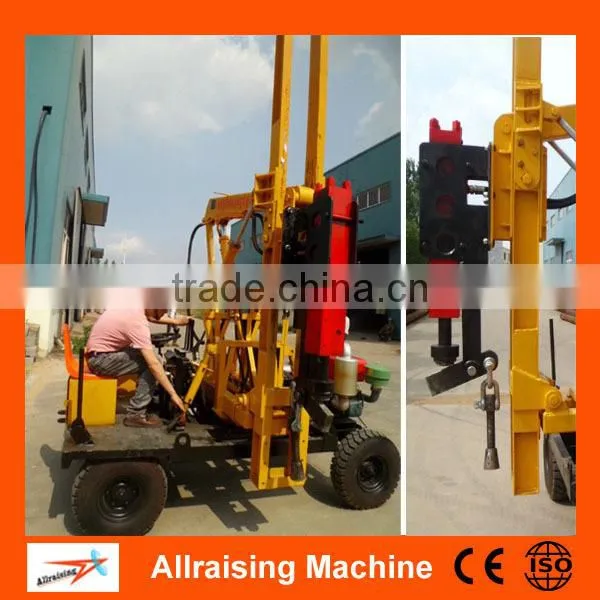

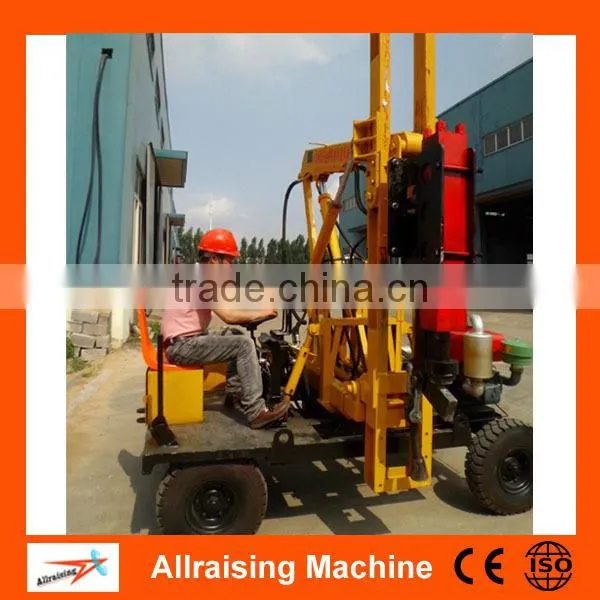

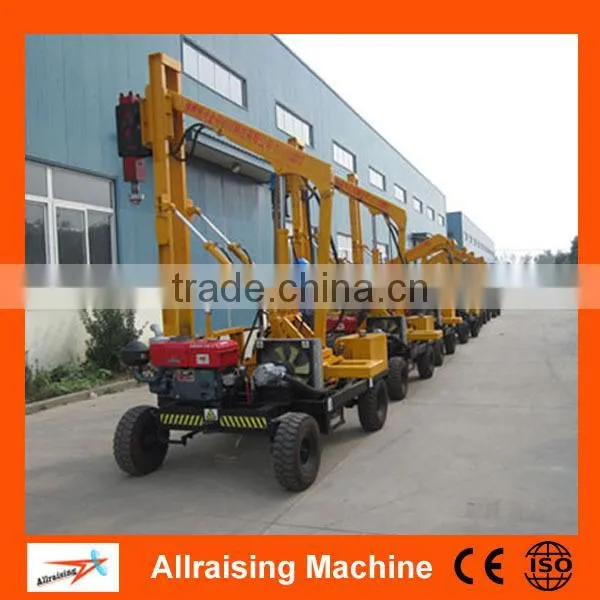

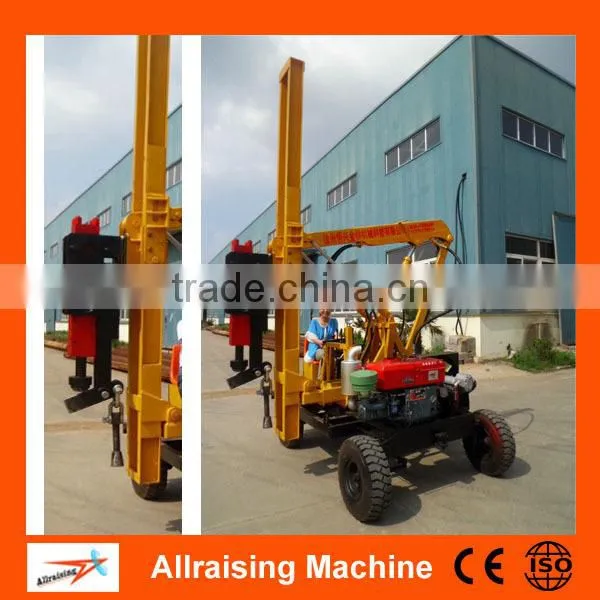

Highway Guardrail hydraulic static pile driver
The hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling.
Specification of pile driving machine
Models | Unit | OR-XYC-230 | OR-XYC-260 | OR-XYC-330 |
Hydraulic hammer model | Yc230 | Yc260 | Yc330 | |
Drill rod diameter | mm | 70 | 75 | 80 |
Engine power | hp/kw | 28/20 | 28/20 | 32/23 |
Hydraulic system pressure | mpa | 20-25 | 20-25 | 20-25 |
The hydraulic system flow | ml/r | 63 | 63 | 63 |
Nitrogen gas pressure range | mpa | 1±0.1 | 1.7±0.1 | 1.7±0.1 |
Hydraulic hammer impact frequency | bpm | 500-900 | 400-800 | 400-800 |
Hydraulic hammer work flow | l/min | 40-70 | 50-90 | 50-90 |
Working pressure of hydraulic hammer | mpa | 9-11 | 11-14 | 12-15 |
Working stroke of hydraulic hammer | mm | 450-2800 | 450-2800 | 450-2800 |
Piling efficiency | mm/min | 1200 | 1500 | 2000 |
Net weight | kg | 2000 | 2100 | 2200 |
Piling steel pipe diameter | mm | 114*4.5,140*4.5,130*130*4.5-6 | ||
Drilling diameter | mm | 120,150,160,180 | ||
Drilling depth | mm | 1700 | ||
Maximum traction speed | km/h | ≤30 | ||
Traveling Speed | km/h | 8-12 | ||
Hydraulic tank volume | l | 84 | ||
Dimension(L*W*H) | mm | 2600*2200*2900(folded)*4100 |
Features of pile driving machine
1. Using hydraulic hammer imported from Korea, with greatly reduces the failure rate.
2. The borer pole and borer pole cap is connected with safety rope to prevent accidental injury.
3. Dangerous parts with eye-catching mark, to enhance the safety awareness of construction workers.
4. Sliding frame using alloy material, with which the yield strength and wear resistance are increased.
Applications of pile driving machine
1. Pile driving or drilling holes for highway guardrail install.
2. Pile pulling, drilling holes or pile driving for ordinary road security guardrail install.
3. Screw pile install for PV power station.
4. Pile driving for other site (Such as farms, pasture, orchard etc.)
We also supply other models of pile driving machine, Pile pulling machine, Drilling machine
Packaging & Delivery of pile driving machine
Packaging Details: | wooden case or what is required. |
Delivery Detail: | 3-6 days after payment |

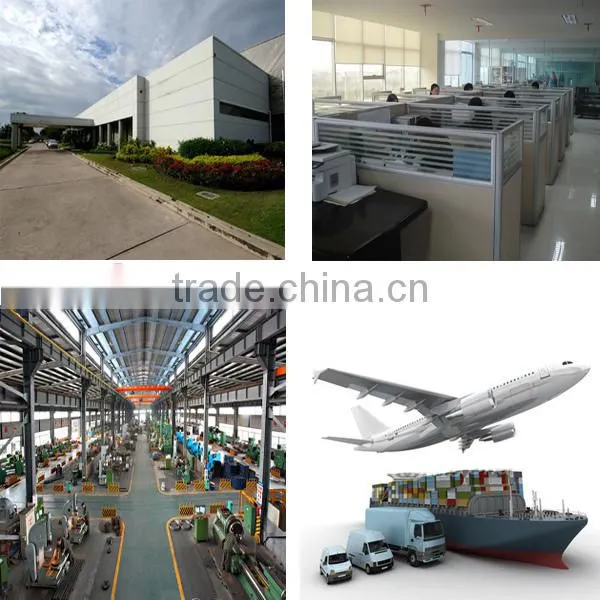

Our factory & Certification
Zhengzhou Allraise Machinery Company Ltd have been designing, developing, manufacturing and marketing Machinery for more than 10 years. After these years of development, we have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system. So choose us, equaling to choose the competitive price and stable quality both.
Don't worry your TT payment,we do make the shipment as S/C,B/L for your reference!
Please feel free to contact me if any interest!
