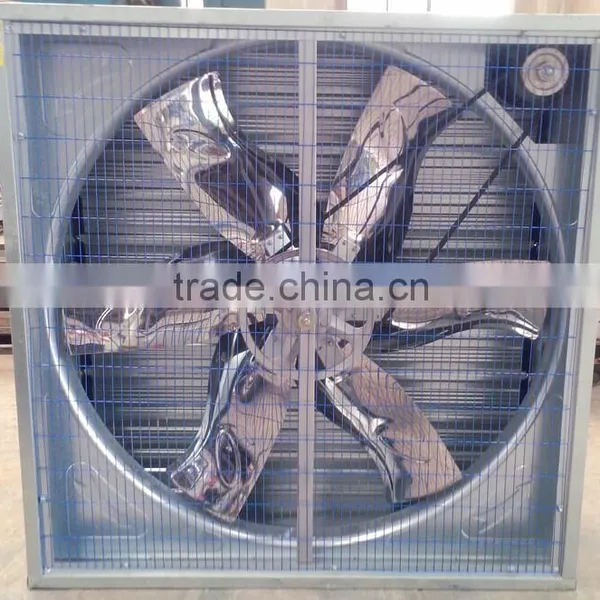

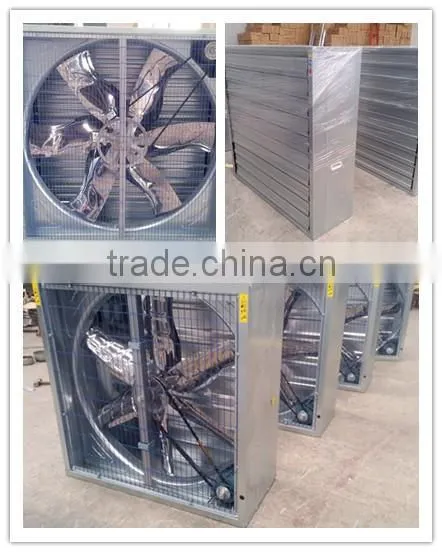

High Quality Push-pull Centrifual Fan
US$ 150 - 160
MOQ: 1 Set
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Stainless Steel
Mounting:
Wall Fan
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG CHINA.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Auto Push-pull Fan/ Exhaust FanUS$ 150 - 160MOQ: 1 Set -
Ventilation Fan for Greenhouse and Poultry With PusherUS$ 150 - 160MOQ: 1 Set
-
Push-pull Fan/Electric Ventilation Fan/US$ 150 - 160MOQ: 1 Set
-
Axial Flow Fan/ High Temperature Ventilation FanUS$ 150 - 160MOQ: 1 Set
-
Exhaust Fan/ Box Fan for Poultry and Green House.US$ 150 - 160MOQ: 1 Set
Electric Current Type
AC
Blade Material
Stainless Steel
Mounting
Wall Fan
Brand Name
Yunpeng brand
Model Number
YP-900
Power
750
Voltage
Rated voltage 380
Air Volume
35000m³/h
Speed
600r/min
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.S.S blade, louver-type window.2.Great capacity blower
3.Steady long circulation.
4.Centrifugal shutter system.
Push-pull centrifual fan for green house or poutry feed. Ventilation fan made of stainless steel or galvanized steel.
Product instruction:
1), This type of fans is good for the inner environment airflow so as to achieve the proportionate target.
2), Use International advanced energy-saving technology and automatically thermal protection system .
3), The frame is made of stainless steel or steel covered with spraying plastic,
4), Applied to ventilation in greenhouse, culture mining,civil construction, etc.
Push-pull Centrifual ventilation fan (Features)
- Shutter:With a centrifugal system which can ensure the shutter open and close automatically, and makes it dustproof, waterproof.
- Motor: The high efficient and energy-saving moter with protection grade: Ip55, insulation class:F
- Belt: Automatic tensioner to prevent the belt loosing and droping off.
- Component:Centrifugal shutter system was made of 100% nylon, high intensity and long life.
Main components
- Belt tensioner is made of aluminum magnesium alloy. It extend service life and avoid distortion.
- Nylon orented poles are fixed on the flange which could avoid distorion of nylon and guarantee total concentrictiy of front and back bearings.
- Handles are designed as recessed type,=. It is easy to carry, transport and have no effect on installation and outlook.
Technical data
| Model | Blade daimeter(mm) | Blade speed(r/min) | Moter spped(r/min) | Capacity(M 3/h ) | Power(w) | Noise(db) | Voltage(v) | Size(mm) | |
| YP-900 | 900 | 600 | 1400 | 35000 | 750 | <=70 | 380 | 1000*1000*450 | |
| YP-1250 | 1250 | 439 | 1400 | 43000 | 1100 | <=70 | 380 | 1380*1380*450 | |
| YP-1400 | 1400 | 439 | 1400 | 55800 | 1500 | <=70 | 380 | 1530*1530*450 |
The other ventilation fan & Accessories
1. Negative-pressure fan.
2. Cow house ventilation fan.
3. Four blade exhaust fan.
4. Cooling pad/ Cooler accessories
5. Cross wind window.
6. Roof ventilation fan
