Bluetooth 1D 2D barcode scanner with wearable IOS /android / win data collector

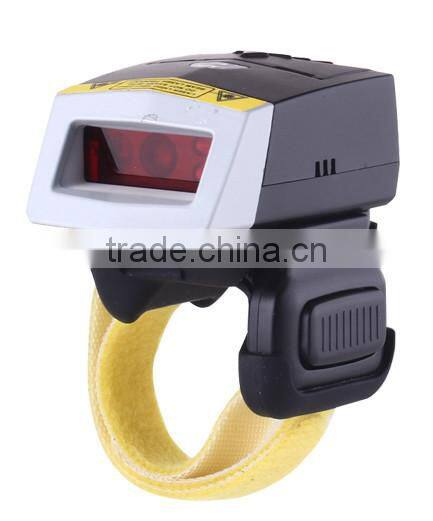

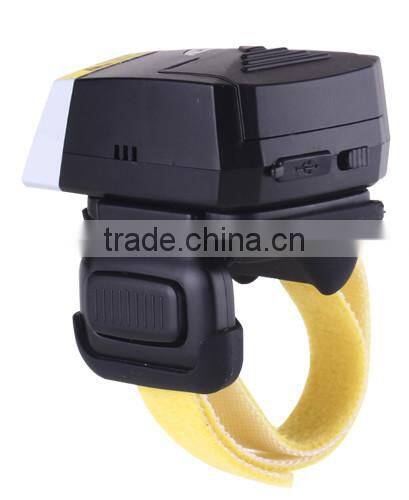

2D barcode scanner FS02:
2D Bluetooth Wearable Ring-style Barcode Scanner UL-FS02 is a powerful new generation barcode scanner with small size and charming appearance. it can read 1D and 2D barcode. It is designed for picking and sorting application, enable your operator to free hand and improve operational efficiency in your warehouse, distribution center and retail store. You never need setting an item down to check paper work order or picking up handheld scanner. Operator even no need to put heavy package to the desktop for scan, it will save more time and physical strength. Compare with common wired handheld scanner, UL-FS02 can increase 15%-30% productivity!
UL-FS02 wearable ring scanner enable operator to move package , products and materials, helping to increase more efficiency, It is very comfortable to wear it in whole working day, with high performance laser scan engine, even poor printed barcode can be read. The rugged rubber shell makes daily use reliable even in the roughest environments.
UL-FS02 wireless function allowing unparalleled freedom for movement in scanning, it can be avoid drop down and damage scanner when you wearing on the finger. Super Class2 Bluetooth technology and long range 2.4G antenna make you transfer data with 20M distance. You never need add more headcount to finish more work equip with UL-FS02 wearable ring-style scanner. At the same time, we provide RS232 and USB version to connect PC and Electronic label shelf
UL-FS02 can connect with iOS and android smart phone easily. Special design Bluetooth protocol, you can scan barcode into support Bluetooth Human Interface Device Drive directly without install any software, double push trigger button, you can display and hide soft keyboard in iOS.
Specification |
FS02 Wearable Ring 2D Laser Scanner |
||||||||||||
Mechanical |

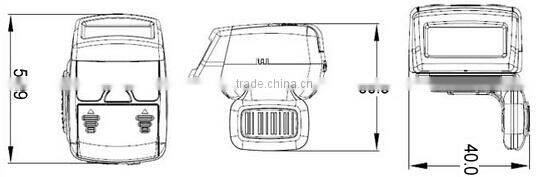

Length:53.9mm, Width: 40.0mm, Height:50.3mm |
||||||||||||
Weight |
60g |
||||||||||||
Electrical |
Power: DC5V Typical: 75mA DC5V |
||||||||||||
CPU |
32bit ARM CPU |
||||||||||||
Data storage |
100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional). |
||||||||||||
Working mode |
Bluetooth mode, USB mode, offline mode and RS232 mode(optional) |
||||||||||||
Scan mode |
Manual mode, Continuous, Host, Sense mode |
||||||||||||
Ambient illumination |
0~100,000 lux |
||||||||||||
Scanner performance |
Sensor Type: 752×480 CMOS Light: RED LED 625±10nm Scanner Rate: 30 times Scanner Angle: ±50°,±50°,±360°(skew, pitch, Roll) View angle: horizontal: 36°, Vertical: 23°. Contrast: ≥30% Reading accuracy: ≥5mil |
||||||||||||
Battery power |
Internal Battery: Changeable 350mAh Li-ion Battery, Standby 5 days, working time after full charge with good decode as below:
Charge Time: About 1.5hours.
|
||||||||||||
Barcode Type |
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (including FNC1, FNC2 and FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey. 2D: PDF417,QR Code(Model 1/2, Micro),Data Matrix (ECC200,ECC000,050,080,100,140)
|
||||||||||||
Decoding depth & Max. resolution |
(1 mil = 0.0254 mm) UPC-A (13mil): 55mm - 270mm Code 39 (20mil): 50mm - 340mm PDF 417 (6.67mil): 70mm - 165mm Data Matrix (10mil): 55mm - 180mm QR Code (20mil): 35mm - 275mm |
||||||||||||
Communication |
Class 3 Bluetooth Human Interface Device, SPP with 20M distance, USB, RS232 cable(optional) |
||||||||||||
OS |
IOS, Android, Windows, Mac |
||||||||||||
Certificate |
CE, Rohs, FCC, EN60950, IEC60825, IP64, EMC, 1.2m drop test(500 times). Utility Model Patent No.: ZL201420211350.8 |
||||||||||||
Laser safety |
IEC60825-1-2007, Class 1 |
||||||||||||
Temperature |
Operating: -10°C to 60°C (-4°F to 140°F); Storage: -40°C to 70°C (-40°F to 158°F) |
||||||||||||
Humidity |
5% to 90% (non-condensing) |
||||||||||||
Accessories |
1X FS02: 1X 3.7V 14250 Li-ion battery: 1X Velcro: 1X Silicone Case: 1X USB cable |

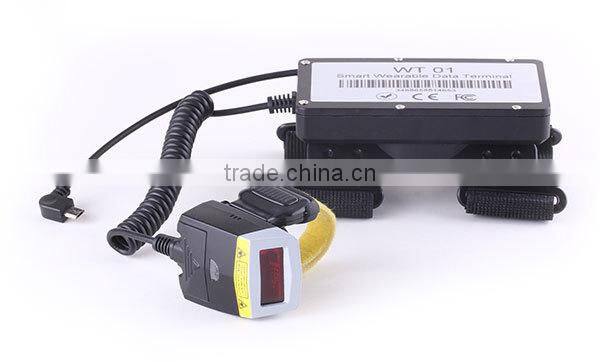

Data Ternimal WT01:

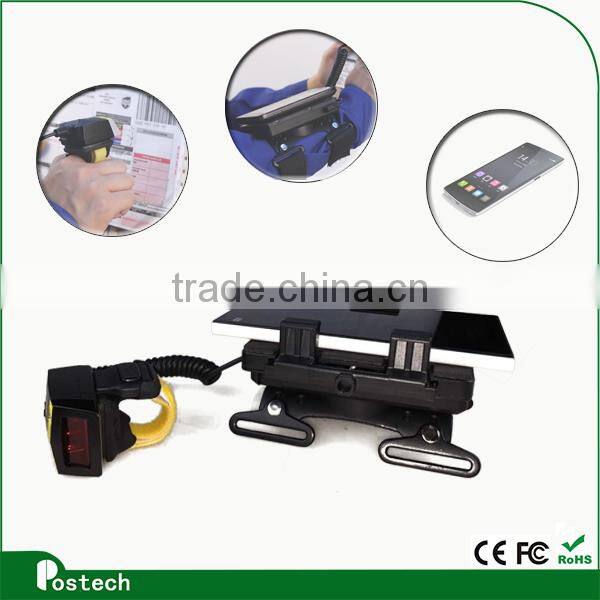

WT01new smart wearable data terminal is a wearable barcode data collection terminal, which is different from traditional data acquisition terminal.

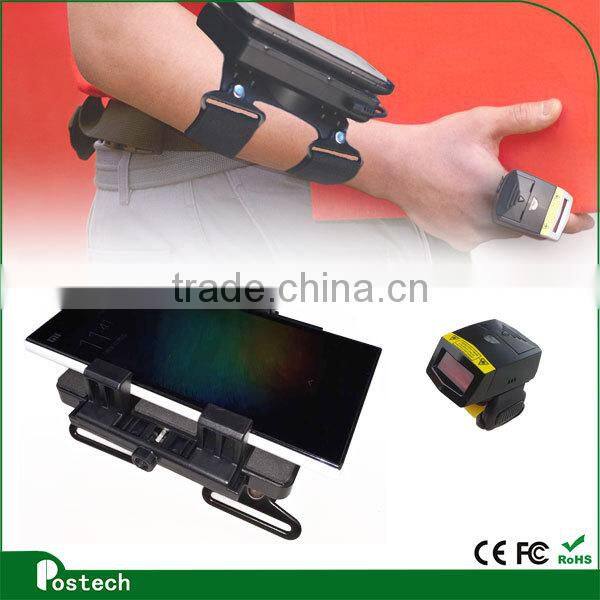

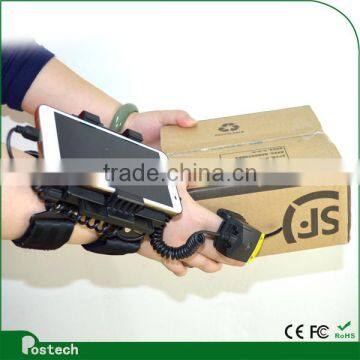

It inherited the merits of the ring type barcode scanner, much convenient to scan terminals fixed on your hands, so that you can upgrade the mobile phone or tablet pc into a professional barcode data collection terminal, you can easily use it for items selection, sorting, recording.smart wearable data terminal can make your workers keep their hands and eyes on the materials when they are handling and capture barcode on the fly with ring barcode scannerIn warehouse management, freight forwarding, pipeline material tracking, product barcode traceability, shopping malls and so on, it plays an important part in application value, improve your working efficiency, reduce the personnel allocation, as well as exempting the expensive barcode data collection system.
Specialty:
1.WT01smart barcode scanning terminals only need to install a Tablet PC or a mobile phone barcode scanning , then it can be performed, and handle the barcode data as well as scan the barcode, meanwhile, compatible with a wide range of mobile phones and tablet pc available in the market.

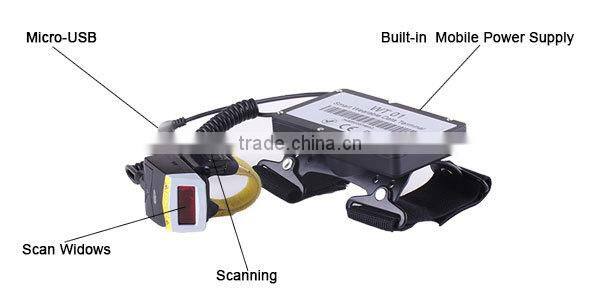

2.WT01smart bar code scanning terminal arm support built-in 3000 mA mobile power supply, and carry on the power supply for the scanner and mobile phones. Such degign make it have longer battery life.

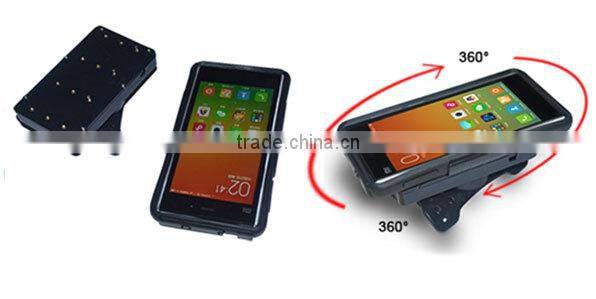

3. WT01smart barcode terminal accords with human body engineering structure design, and the rotate stent platform, it make it easy for you to see the data information from every angles.With rotate ring style barcode scanners, wherever you wear in theleft hand or right hand can easily finish the work of barcode scanning.
4. You can fix your mobile phone sleeve on the stent platform through the screws, or use the non-fixed residual rubber to stick your phone
or tablet PC.Surely, you also can choose to customize your exclusive cell phone protective sleeve.
5. Phone barcode scanning terminal, working with the powerful smartphone applications, which can realise data processing, voice broadcast and other functions.
| Smart wearable data terminal | |

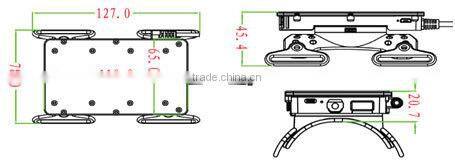

| size | |
| Weight | 270g |
| Power | DC5V±5% |
| Battery | 3000mah Rechargeable lithium ion battery external trigger mode work for 10 hours for 10 second interval scan |
| Communication | Android USB Accessory |
| Compatibility |
wired version: android mobile phone/table pc, wireless version: android/IOS/WP/windows
|
| Barcode Type |
Support 1D Brcode PC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII,Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5,Codabar (NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey,UK/Plessey, UCC/EAN 128, China Post, GS1 DataBar (formerly RSS) variants
|
|
Support 2d Barcode 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (including FNC1, FNC2 and FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey. 2D: PDF417,QR Code(Model 1/2, Micro),Data Matrix (ECC200,ECC000,050,080,100,140)
| |

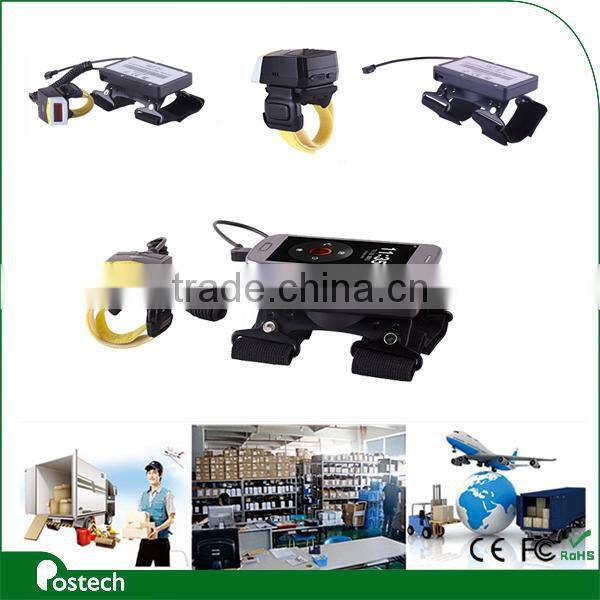

Application

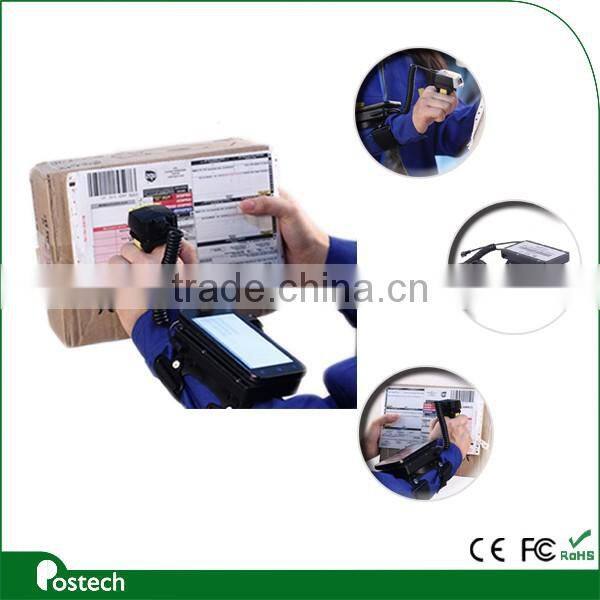

1.Logistics freight management access to warehouse
2.Materials production barcode traceability
3.Factory asset management
4.Supermarket inventory
What are the common between wired one and wireless one?

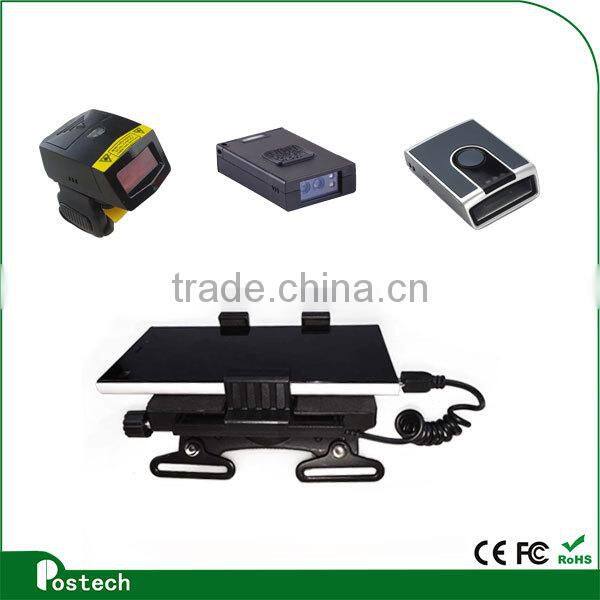

They both can work with Ring barcode scanner FS01(1D)/FS02(2D) perfectly in area of Logistics, warehouse, Library , Traffic etc
What are differences in using wired and wiresless solution?

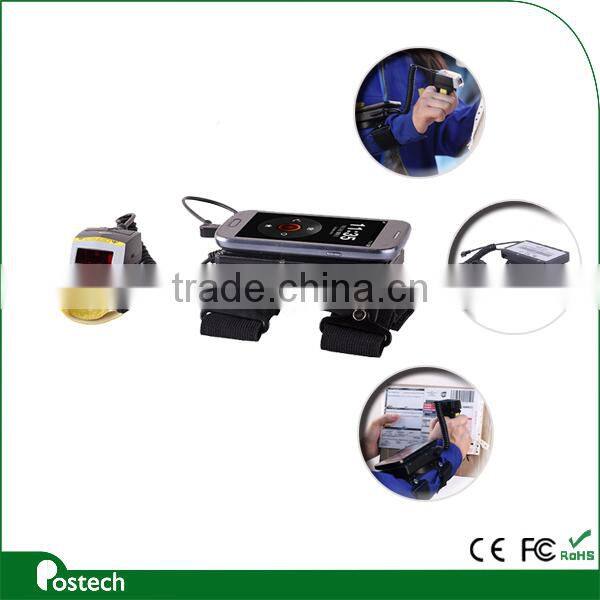

1). FS01+ wired WT01: inside of the scanner, there is only a scan engine without battery and bluetooth,
the data only can be transmitted connecting with WT01. The data can be transferred to the phone via
usb cable, it will not be stored in the chip of WT01. Meanwhile , the WT01 also can supply power for the
scanner.
(2). FS01+wireless WT01: FS01 has bluetooth, the data stored in the scanner, which can be transmitted
into the phone or PC via bluetooth or usb cable. FS01 itself can be used seperately, and WT01 only supply
the power for the phone and also can be regarded as the stand.
(3). Sdk for them are different.
On WT01, there are two models as below:
(Pls contact us for more details if possbile, SKYPE: unique-sara1, thanks)
Welcome To connect online soon
*********************************Good Luck***********************************
Skype: unique_sara1
Tel: +86 0755-23325317
Mobile: +86 13823305526
************************************************************************************************************************
