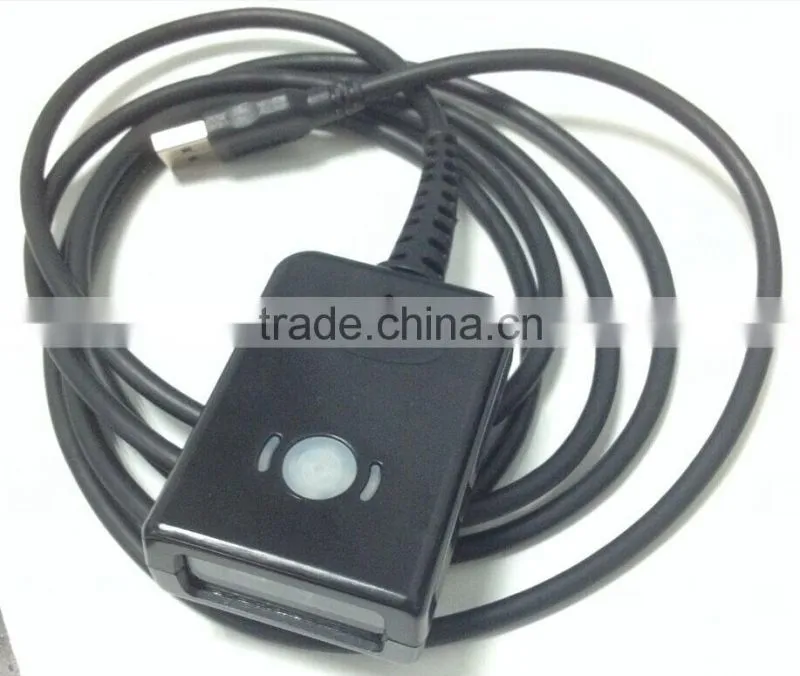

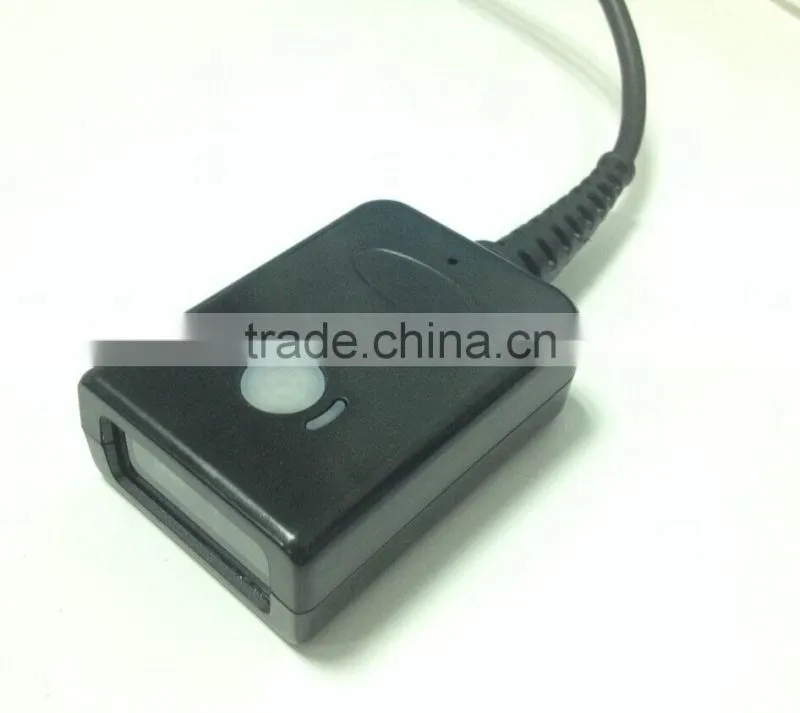

BS4100 Qr Code Scanner, Induction bar code scanner, 1D / 2D Induced Scanning Barcode Scanner Module
- 10000000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
MS4100 bluetooth qr code scanner, cheap Supermarket Qr Code Scanner
-
MS8100 Warehouse Supermarket USB / RS232 serial port / PS2 handheld programmable barcode scanner for 1D 2D barcode
-
OEM ODM BS3391 Factroy Cheap Handheld Anti Static Barcode Scanner/Reader
-
Golder barcode scanner supplier for barcode scanner machine
-
Handheld 2D scanner, portable barcode scanner guns
-
2D barcode scanner, cheap barcode scanner made in China
Product Details
Products Status | Stock | Type | Barcode Scanner | |
Scan Element Type | CMOS | Colour Depth | 32 Bit | |
Interface Type | USB, Other | Max Paper Size | 600*600mm | |
Optical Resolution | 2592x1944 | Scan Speed | 200 Scans/sec | |
Brand Name | Unique | Model Number | BS4100 | |
Place of Origin | Guangdong, China |
Product Description
BS4100 Qr Code Scanner, Induction bar code scanner, 1D / 2D Induced Scanning Barcode Scanner Module:
Miniature imager offers comprehensive data capture - and versatility
The flexible and compact LonWi 4100 Series offers high performance 1D and 2D bar code scanning, image capture and direct part mark (DPM) reading, wherever an extremely small footprint and fixed mounting are required. One of the smallest charged couple device imaging products available today, the Symbol MS4400 is designed to fit in tight spaces - from a check-in kiosk at an airport gate, in point-of-sale (POS) areas with very limited counter space, in manufacturing cells where space is at a premium, in clinical diagnostic equipment, as a standalone device and more. Ready to mount, this small plug-and-play device can be integrated quickly and easily into your existing environment.
Easy to use and integrate
The LonWi 4100 offers features that make bar code capture easy, regardless of the user - your employees or customers at self-service kiosks. The omni-directional scan pattern eliminates the need to position items precisely. The clear aiming pattern enables users to visually see the area that is to be captured, ensuring first time every time accurate capture. And an audible tone and visible LED light, let users know that the data capture is accurate- and complete.
Features and benefits:
l Accurate Aimer
l Fast speed sensor
l Industrial leading scan platform
l High speed, Omni directional scanning
l Read all mainstream 1D/2D barcodes
l Read barcode off cell phone screens
l Miniature- easy to integrate
l Extremely easy to use
l Support RS232 and USB interface
Applications:
Healthcare, Mobile coupon or ticketing (event, airline, cinema, etc), Pharmacy, Patrol Vehicles, Retail, Lottery, Banking, etc.
Physical Characteristics | |
Dimensions: | 70mmX23mmX50mm(LxHxD) |
Weight: | 150g |
Voltage and Current: | 5 VDC +/-10% @ 400 mA |
Performance Characteristics | |
Image (Pixels): | 640 pixels (H)x 480 pixels (V) |
Light Source: | Aiming: 617 nm LED; illumination: 6500K LED |
Field of View: | 40° (H) x 26° (V) |
Roll / Pitch / Yaw: | 360°, ±65°, ±60° |
Print Contrast: | 25% minimum reflective difference |
Symbology Decode Capability | |
1-D: | UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat |
2-D: | PDF417, MicroPDF417, Composite Codes,Data Matrix, Maxicode, QR Code, MicroQR, Aztec |
Motion Tolerances: | up to 25 in. (63.5 cm) per second |
Interfaces Supported: | USB, RS232 |
User Environment | |
Operating Temperature: | 32° to 122° F / 0° to 50° C |
Storage Temperature: | -40° to 158° F / -40° to 70° C |
Humidity: | 5% to 95%, non-condensing |
Drop/Shock Specifications: | Withstands 10Gs 0.06" double amp |
Ambient Light Immunity: | Immune to normal lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux. |
Decode Ranges | |
Symbol & Density | Range |
Code 39 (5 mil) | 50mm-120mm |
100%UPCA (13 mil) | 20mm-300mm |
Code 39 (20 mil) | 25mm-340mm |
PDF417 (6.8mil) | 30mm-120mm |
DataMatrix (10mil) | 20mm-120mm |
QR Code (20mil) | 15mm-240mm |
Resolution 1D Code 39 | 4.8mil (0.122mm) |
Resolution 2D Data Matrix | 6.6mil (0.168mm) |
Performance may be impacted by bar code quality and environmental conditions |
