2016 New Emv Card Reader Writer, MCR200 Emv Chip Card Reader With Free SDK
Description:
MCR200 can read write magnetic card and EMV chip card, it can provide reliable magnetic stripe and EMV chip card reading/ writing solution. It's an ideal choice for retail, payment, security and other related systems.
Features:
- Compact size, easy to use
- Support Magnetic card and EMV chip card
- Read/ write PBOC2.0, IBM, ISO, DIN, ANSI card
- Read/ write all 1&2&3 tracks, 300-4000 oe
- Manual swipe to read/ write data with a single pass
- Tri-color LED & beeper for power on/ reading/ writing operation
- PIN pad port & two extra serial port expander available
- Module structure technology applied to ensure high efficiency and reliability
Specification:
Model | MCR200 |
Card standard | IBM, ISO, DIN, ANSI |
Manual feeding speed | 20~120mm/s |
Writing density | 1st track 210 BPI (max 76 characters) |
2nd track 75 BPI/210 BPI (max 36/104 characters) | |
3rd track 210 BPI (max 104 characters) | |
Interface | RS232, 2400/4800/9600 bps at option |
Reliability | MTBF > 20000H, MTTR < 30 MIN |
Lifetime | Magnetic head: over 300,000 times IC card: over 100,000 times SAM card: over 5,000 times |
Power supply | AC 110V~240V |
Working condition | 0~40° C, 15%~85% RH non-condensing |
Dimensions | 210 x 60 x 60mm |
Weight | 1.4Kg |
Housing | Plastic Case, ivory color |

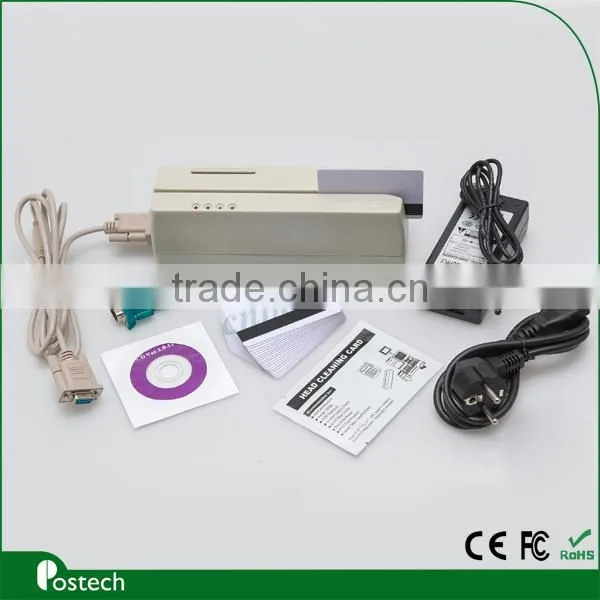

EMV chip card reader Package:
1). 1x Brand New MCR200
2). 1x Power Adapter
3). 1x USB Adapter
4). 1x Software CD
5). 1x Head cleaning card
6). Some blank magnetic cards






Warranty:
1. All the products come with 1 year warranty; Offer lifetime maintenance.
2. MCR200 is a very professional product which need professional engineer to reprogram the software for EMV Chip Card Reading Writing.
