Help CenterMini Android Barcode Scanner, Easy Programmable Barcode Scanner
US$ 66 - 110
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Barcode Scanner
Scan Element Type:
CMOS
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Unique Wired Barcode Scanner Machine, 2D Handheld Pda Barcode ScannerUS$ 110 - 155MOQ: 1 Piece -
Warehouse Barcode Scanner, Mini Bluetooth Pda Barcode ScannerUS$ 85.5 - 160.5MOQ: 1 Piece
-
FS01 Finger 1D Barcode Scanner, Cheap Omnidirectional Barcode ScanneUS$ 85.5 - 160.5MOQ: 1 Piece
-
FS02 Wearable Barcode Scanner, 1d 2d qr Code Scanner for AIDC SystemUS$ 85 - 195MOQ: 1 Piece
-
Finger Barcode Scanner, Mini Portable Barcode Scanner for LogisticsUS$ 150.5 - 190.5MOQ: 1 Piece
Products Status
Stock
Type
Barcode Scanner
Scan Element Type
CMOS
Colour Depth
16 Bit
Interface Type
PS/2, USB, Other, PS/2, USB, RS232
Max Paper Size
N/a
Optical Resolution
1024*768
Scan Speed
100 Times
Brand Name
Postech
Model Number
MS5100
Place of Origin
Guangdong, China
Mini android barcode scanner, easy programmable barcode scanner
Product Description

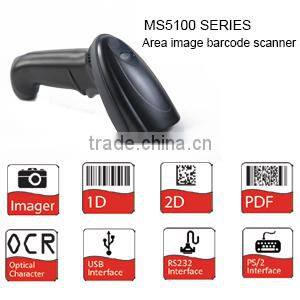

MS5100 series handheld area image barcode scanner is the second generation imager product designed by Postech corporation, it is designed with the most advanced hardware and software platform therefore it offers the industrial-leading scan performance and reliability. MS5100 series offers versatility of area-imaging technology to fulfill different industrial application demands; in category of different focal length it offers Standard Version, High Density Version, and DPM (direct part mark) Version. Standard Version is widely considered as best cost effective product, but it offers promoted poor barcode reading performance especially on bad printed bardcode or broken barcode (both 1d and 2d). High Density Version is capable to read to minimum 3 mil barcode and all above (both 1d and 2d), it offers wide range of scanning element and scanning capability. DPM Version offers ideal solution forreading DPM codes (etching by laser) on various materials, for instance PCB-boards, resin products, and metal. MS5100 has very compact but ergonomic design, from where it is designed with high quality standard and performance to be widely used in versatility industrial applications including Auto motor, Medical industry, Logistical, Quality tracking and so on.
Fetures
- Omni directional scanning capability: No need to adjust barcode
- Promoted image processing: High quality image
- Multiple Focal Options: Three product versions (Standard, HD and DPM), leading to improved productivity
- Multi-interface: auto interface detection
- Support mobile screen reading: capable to read coupons on mobile phone
- Medical standard material: anti- bacteria material
- High IP rating: IP43
- High Drop performance: 6 inches
Specification
| Physical Characteristics | ||
| Dimensions | 18.0 cm H x 7.0cm L x 8.5 cm W | |
| Weight | 160g | |
| Power | 5 VDC ± 10% @ 450 mA | |
| Power Supplies | Power supplies are available for applications that do not supply power over the host cable |
|
| Operating Temp | 0° C to 40° C | |
| Storage Temp | -40° C to 70° C | |
| Humidity | 5% to 95%, non-condensing | |
| Drop Spec | Withstands multiple 6 ft. drops to concrete | |
| Symbology Decode Capability | |
| Motion Tolerances | Up to 25 in. / 63.5 cm per second |
| Interfaces Supported | USB Keyboard (default mode),COM Port Emulation |
| Standard | |
| Minimum Resolution | -SR: Code 39 4.8mil; UPC 60% 5 mil; PDF417 5 mil,1:1048576Datamatrix 7.5 mil |
| -HD: Code 39 3 mil; UPC 60% 5 mil; PDF417 4 mil,Datamatrix 4.8 mil | |
| 1D | UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat |
| 2D | PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec |
| Decode Ranges | |||||||
| Typical Performance* | Typical Working Ranges | ||||||
| HD Focus Range | SR Focus Range | ER Focus Range | |||||
| Bar Code Type | Symbol Density | Near | Far | Near | Far | Near | Far |
| Code 39 | 5.0 mil | 5mm | 90mm | 30mm | 120mm | 80mm | 180mm |
| 100% UPCA | 13.0 mil | 8mm | 200mm | 15mm | 350mm | 10mm | 480mm |
| Code 39 | 20.0 mil | 8mm | 250mm | 15mm | 350mm | 20mm | 550mm |
| PDF 417 | 6.8 mil | 5mm | 95mm | 10 mm | 150mm | 70mm | 220mm |
| Data Matrix | 10.0 mil | 5mm | 110mm | 10mm | 180mm | 65mm | 260mm |
| QR Code | 20.0 mil | 10mm | 150mm | 10mm | 350mm | 20mm | 450mm |
| Resolution 1D Code 39 | 2.8 mil (0.071mm) | 4.8 mil (0.122mm) | 4.8mil (0.122mm) | ||||
| Resolution 2D Data Matrix | 4.8 mil (0.122mm) | 6.6 mil (0.168mm) | 7.5mil (0.191mm) | ||||
| *Performance may be impacted by bar code quality and environmental conditions | |||||||

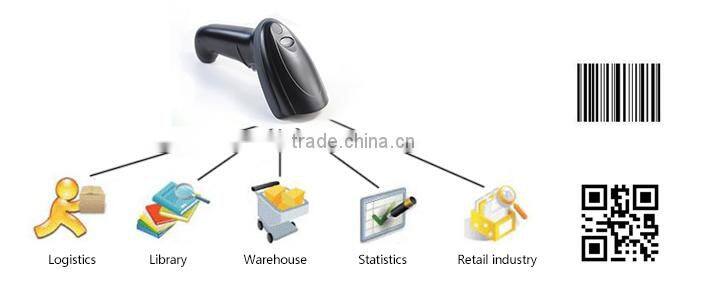

Application
Warranty
|
Service | Packaging |
|
|
