Specifications
CCD bar code readers:-Bar code reader
-Support different mobile and tablet
-Bluetooth SPP and HID
-Conventent for use

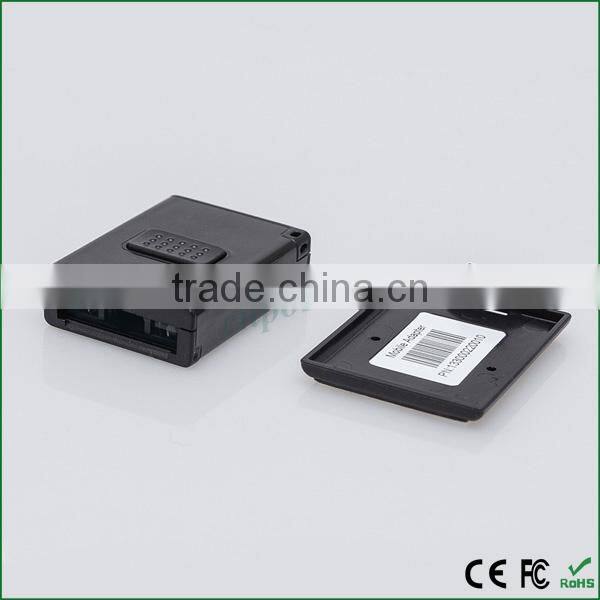

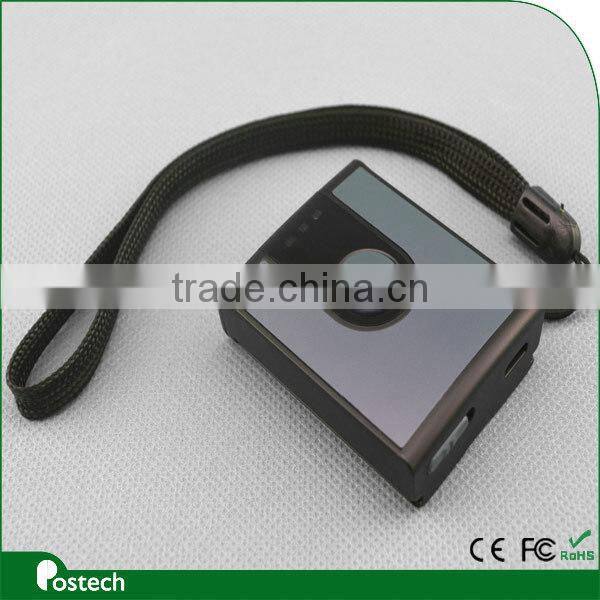

MS3391 Manufacturer Certificated wireless unique MObile CCD Barcode Scanner/bar code reader
-SmallestHandheld 1D Bluetooth Scanner with Glove for Android Tablet PC IOS

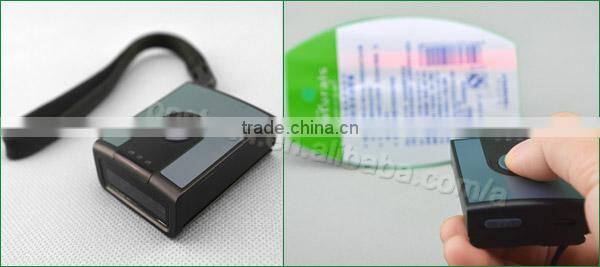

MS3391 barcode scanner is a very light weight, small, intelligent Bluetooth Barcode Scan Jacket.
It can read ultra high density and long distance barcode label. Because of high mobility, cross-platform design and flexible way of using, it is a perfect solution for mobile barcode scanning.

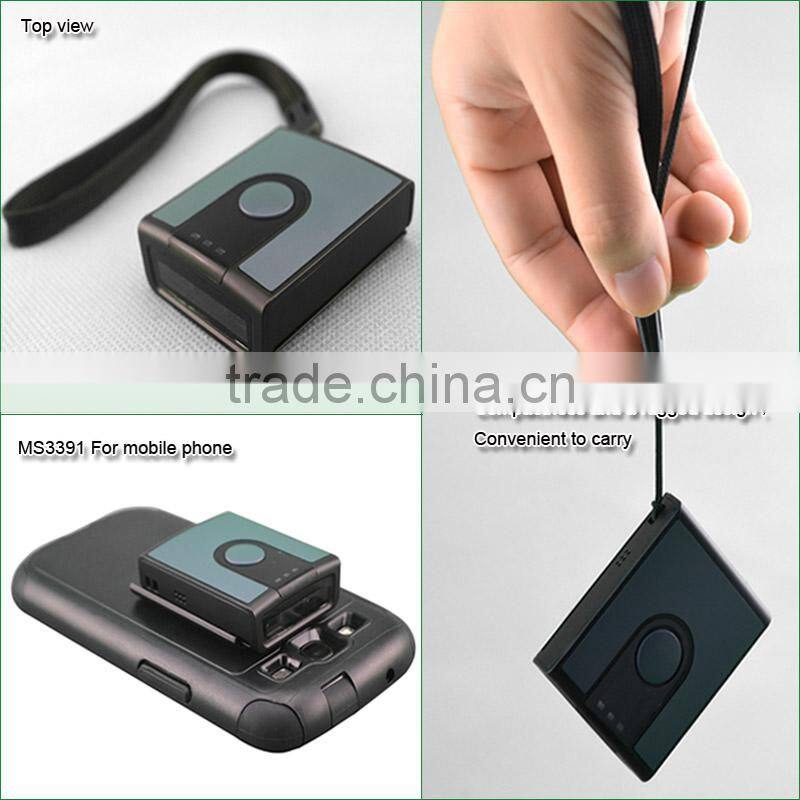

MS3391 barcode scan jacket can be easily fixed on The smart mobile devices support all kinds of android smart phone, it will make your smart mobile devices become a professional barcode collecting terminal.
Through Bluetooth transmission communication protocol, you can scan barcode into your smart phone andtransfer your barcode data to unique server from anywhere and anytime.
With unique service, you can easily to share your data to your partner.
MS3391’s barcode scanner superior performance, excellent reading ability comes from Unique Dyna ExpoTM algorithm.
With Off line storage capacity, makes your work more convenient and flexible, you can store more than 10000 pcs15bit character barcode.With handheld adapter, you can make MS3391 barcode scanner as traditional USB handheld barcodescanner work with PC. Tiny size, easy to carry;
- Tiny size, easy to carry;
- Using high resolution linear CCD sensor, no
- moving parts, increasing product longevity and reliability;
- read 3mil easily for ultra high density barcodes;
- Unique Dyna ExpoT Malgorithm for continuous decoding speed up to 280 times per second;
- Good response speed, TTR<20ms, (see TTR documentation);
- Using Bluetooth technology, convenient and flexible connectivity with Bluetoothdevices, improving the mobility of the work;
- Built-in memory, and offline;store 10,000 15-bit character barcode;
- Built-in battery support big amount of data scanned;
- Not only support all kinds of bar code media, but support for screen scraper directly;
| Scan Performance: | |
| Scan Speed: | 280 times / sec |
| Continuous Decoding Speed: | 280 times / sec |
| Time to Read: | < 20ms BER: <5 PPM |
| Depth of Field: | 20mm ~ 490mm |
| Electrical: | |
| Input Voltage: | DC5V |
| Operating Power: 1 | 00mA @ DC5V |
| Startup Time: | <100ms |
| Decode Capabilities | Code 39, C odabar, Code 128, Interleaved 2 of 5, Code 93, UPCA, UPCE, EAN13, EAN8,Pharm code, ISBN, ITF14 |
| Scan parameters: | |
| Sensor Pattern: | Linear CCD |
| Scan Angle: | 40 ° |
| Print Contrast: | > 20% |
| Light Source: | 620nm LED |
| Power Management: | |
| Power Supply Capacity in scanner: | 300mAh |
| Power Supply Capacity with arm: | 900mAh |
| Continuous Working Time: | 15 days Continuous decoding life ability |

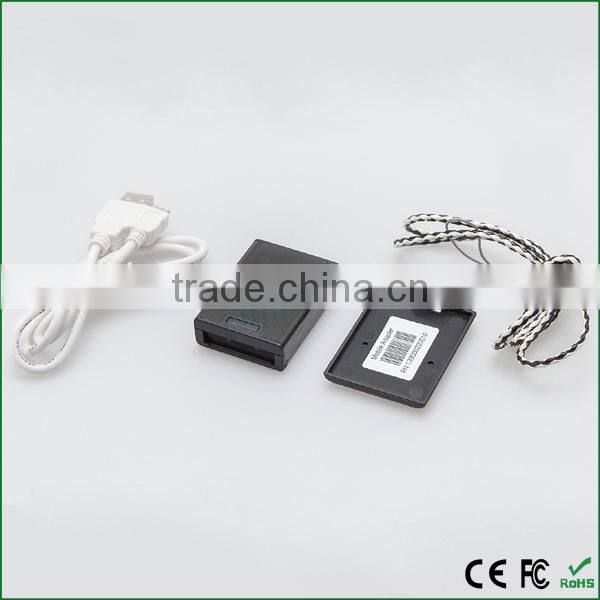

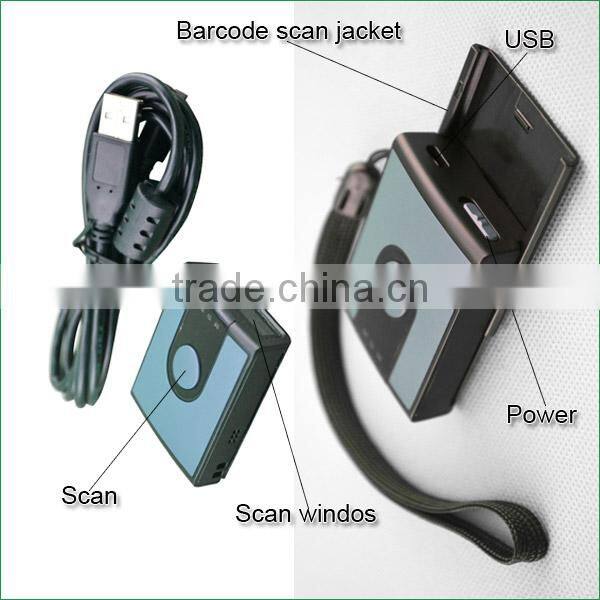

-Accessories services:
USB for charing and communication
Armed with the handle: equipped with
the ability to run strong (joystick built-inbattery can change)
Mobile Jacket:fixed the scanner to mobiledevice
Bluetooth adapter:add Bluetooth on computer
-
You can buy the other compatible glove from us:
With our special Glove, It is designed for picking and sorting application, enable your operator to free hand and improve operational efficiency in your warehouse, distribution center and retail store. You never need setting an item down to check paper work order or picking up handheld scanner. Operator even no need to put heavy package to the desktop for scan, it will save more time and physical strength. Compare with common wired handheld scanner, it can increase 15%-30% productivity!
Warranty:
1: scanner is guaranteed for one year
2: battery warranty half a year
3: offer lifetime maintenance

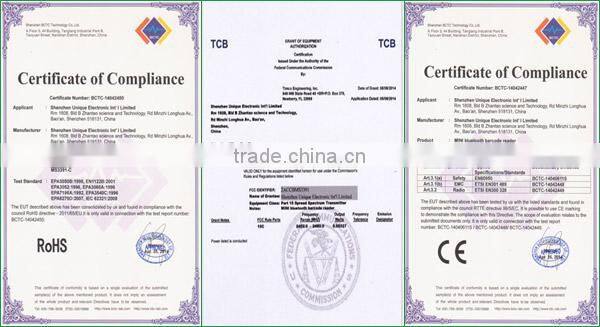

CE FCC ROHS Certificate:
