Double Stud Fitting L Track Fitting
ducts description
Double stud fitting has a larger opening than our standard stud fitting allowing for bigger hooks and attachment hardware. Just to install a double stud fitting, lift the clip on the end and insert the two discs on the bottom of the fitting into the track slots. This fitting snaps into two airline-style L-track slots for a stronger option than the single stud fitting. Slide the fitting so it's halfway between two slots and release the clip so it falls into a slot in the track.

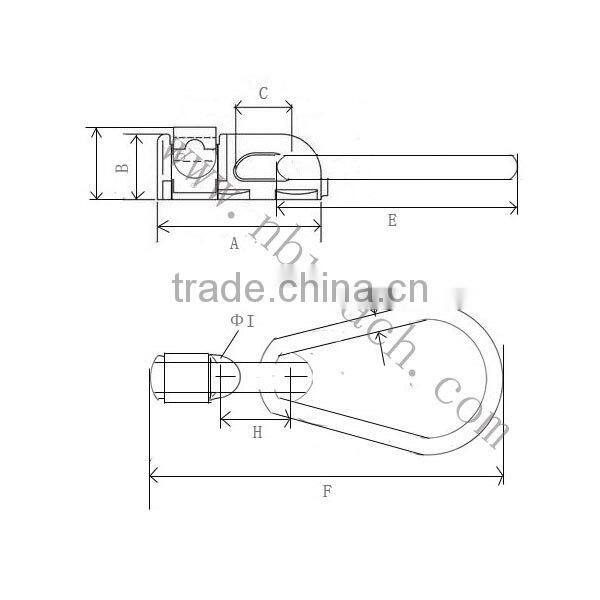

Item |
A |
B |
C |
D |
E |
F |
G |
H |
ΦI |
RSSF033 |
62mm |
24mm |
21mm |
21mm |
74mm |
120mm |
8mm |
22mm |
19mm |
Assembly Breaking Strength: 6000lbs
Work Load Limit: 2000lbs
2.More Stud Fitting Products
Double Stud Fitting with Round Ring
Single Stud Fitting
Single Stud Fitting with Triangel Ring
Plastic Base Single Stud Fitting
