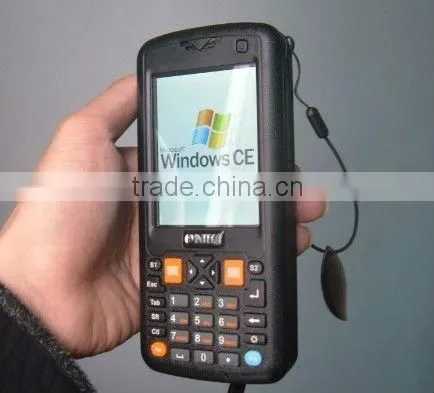

HY2800WBH HF RFID&Barcode Rugged Industrial Handheld Computer

Physical Characteristics

Size 150x70x25mm

Wight 200g (with standard battery)

Operation Environment

Operating Temperature -15 ^oC to +50 ^cC

Storage Temperature  -20 ^oC to +80 ^oC

Sealing Standard IP54

Drop Proof Sustain 1.2m multiple drops on concrete floor

Battery    Ni-ion battery  3.7v 2700mah

Operating System Windows CE 5.0

CPU   SAMSUNG 533 MHz CPU

Storage  Flash 256 MB  RAM  128MB,Support up to 16GB Micro SD Card

Display  3.2” QVGA (240x320 pixel) 64K color, TFT-LCD,LED backlit

Keyboard   backlit keyboard  soft touch, support handwriting input

Sound Track support Dual Speaker

Standard Communication

USB1.1 Host and Client

BlueTooth Class2 V1.1 (Optional)

RS232 Port

Integrated GSM/GPRS Communication Module (900/1800/1900MHz) (Optional)

Wireless Network IEEE802.11b/g Standard (11Mb/S-54Mb/S) (Optional)

HF RFID Reader&Writer

13.56MHZ , ISO14443A/B ,ISO 15693 .Reading Distance<5cm

Bar Code Scanning System

Integrated Bar Code Laser Scanner (Selective)  Support EAN, UPC, JAN, Code11, Code 39, I 2 of 5 and more

WLAN Security

WPA, 802.11i(WPA2), WEP, TKIP, TLS, TTLS, AES, PEAP, LEAP, MD5

Battery Charger    Standard battery charger 5V 3A Vehicle charger port also available

Accessory USB Data Cable, Vehicle Charger, Serial/USB/battery charge Cradle 1-Slot,pouch, carrying case, screen protector
