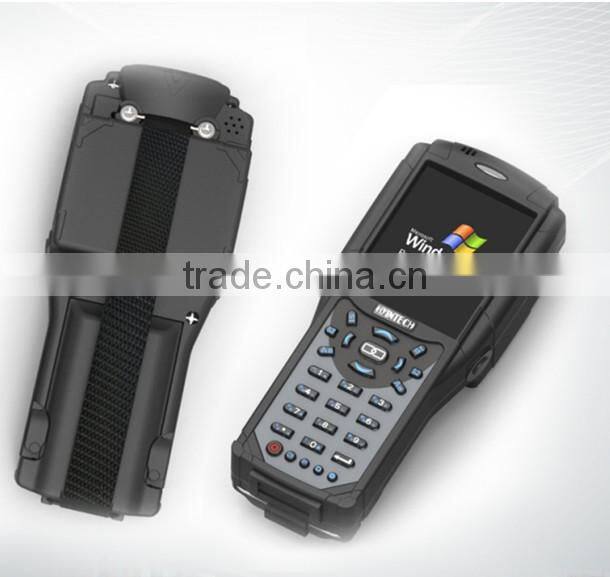

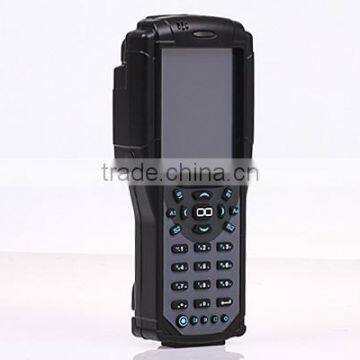

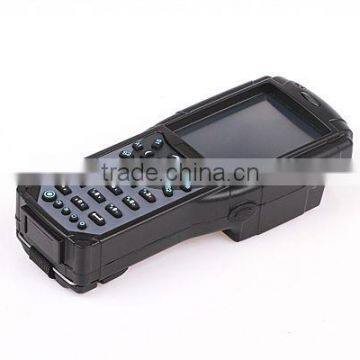

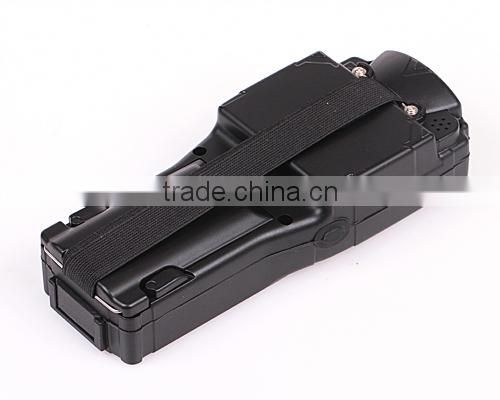

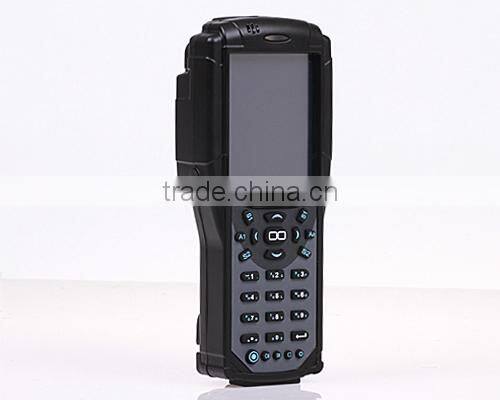

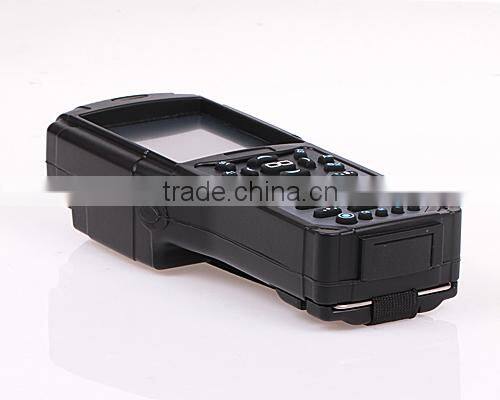

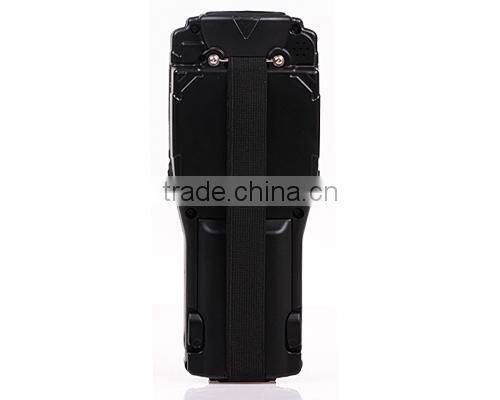

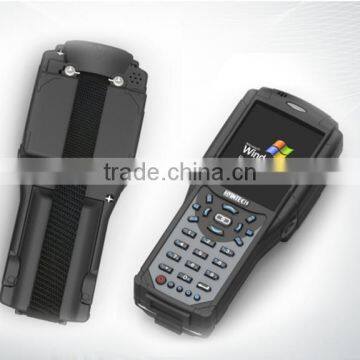

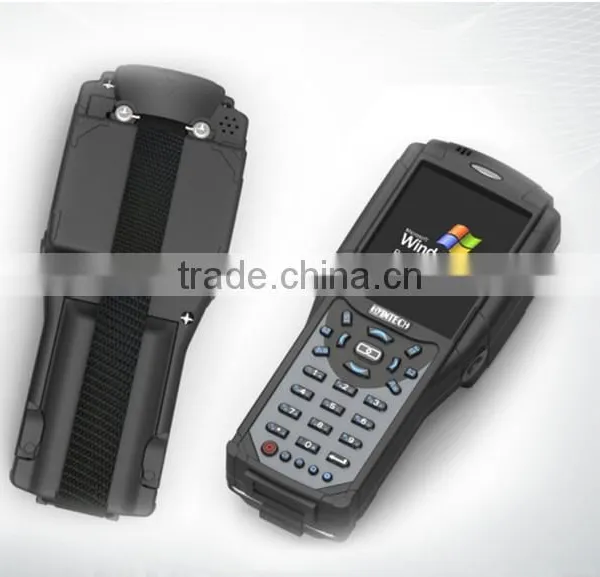

HY3800S
Industrial Handheld Computer
Industrial Handheld Computer
IP65 , 1.2 Meters Anti-Drop
Super Power Battery
WinCE 6.0 R3, Language Customizable
Introduction
1 Compact structure design, multi internal plastic buffer, sustain 1. 2 meters drop, Water proof, IP65 Industrial Standard
2 Super Power Battery 7.4V,2500MAH/3.7V,5000MAH, Long Working Time. Sustain consecutive Working above 20 hours (depends on specific situation), 10 days standby. Extended battery life.
3 Stable PXA3XX CPU,efficiency data processing
4 Readable under sun-shine 3.5 inch LCD
5 Multi-Thread WinCE 6.0 R3 System
6 Hardware extendable functions
7 High capability Barcode scanner engine, Designed for 10 years using.
8 Sensitive RFID (LF/HF/UHF) Module
9 Wifi ( Standard), GPRS/3G(optional),GPS/Optional, Camera/Optional
10 Support further software development, SDK(Software Development Kit ) provided
Specification
CPU |
| PXA3XX (624MHZ) |
OS |
| Windows CE 6.0 R3 (Language Customizable) |
Memory | RAM | 128MB |
F-ROM | 128MB/256MB | |
Barcode Scan engine | Scanner | 1D /2D Laser Barcode Scanner |
Module | Opticon /Moto | |
Scan Speed | 100 times per second +-2 times | |
Scan Distance | 60-650mm | |
Angle | 54±5 | |
Width | 60-360mm At Max Reading Distance | |
Resolution | 0.127-1.00mm | |
Code | UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Bookland EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Codabar; MSI; GS1 DataBar 14; GS1 DataBar Limited; GS1 DataBar Expanded; | |
RFID | LF 125KHZ | Max Reading 10cm |
LF 134.2KHZ | Max Reading 10cm | |
HF 13.56MHZ | Max Reading 10cm | |
UHF 860-928M | Max Reading above 400cm | |
LCD | Type | TFT-LED QVGA Touch Screen |
Resolution | QVGA(240X320)Readable Under Sun Shine | |
Size | 3.5 inch | |
Input | Soft Keyboard | English, Chinese Input(Multi Language Customizable) |
Hard Keyboard | 30 Key | |
ScanKey | At the Middle | |
Function Modules | Standard | WPA 802.11i(WPA2),WEP,TKIP,TLS,TTLS,AES,PEAP,MD5 |
Optional | BT V2.1+EDR | |
Optional | Internal 3M camera | |
Optional | Internal GPS Signal 48,Accuration 2.5m,Speed below 0.01m/s | |
Optional | Internal LF/HF/UHF RFID Reader | |
Optional | Internal GPRS/3G WCDMA | |
Power | Main Power | 7.4V,2500mah/3.7V 5000mah Li-ion |
RTC Battery | Chargeable Button battery | |
Standby | 10 days | |
Working | Above 20 hours, depends on specific situation | |
Extension |
| Micro SD/TF Slot |
Industrial Standard |
| IP65 |
Size | Human Engineering Design | 190(L)×78(W)×40(T) mm |
Weight |
| 430g( Including Battery) |
Working Environment | Operation Temp. | -15~+50℃ |
Storable Temp. | -20~+60℃ | |
Working Wet | 5-95% | |
Storage Wet | 5-95% | |
Anti-Drop | 4 inch(1.2Meters)Multi Drop |
Long Range Handheld Computer
with RFID Software Solutions
Inventory/ Warehouse/ Animals/ Attendance/ Laundry/ Jewelley Management
CE
FCC
RoHS
