One Time Off Disposable Ntag213 RFID Paper Wristband for Events
Product Description
Features of NTAG213/215/216
NFC Forum Type 2 Tag compliant IC with 144/504/888 bytes
user memory
The RF-interface is based on the ISO/IEC 14443 Type A standard
- Contactless transmission of data and supply energy
- Operating frequency of 13.56 MHz
- Data transfer of 106 kbit/s
- Data integrity of 16-bit CRC, parity, bit coding, bit counting
- Operating distance up to 100 mm (depending on various parameters as e.g. field
- strength and antenna geometry)
- 7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
- UID ASCII mirror for automatic serialization of NDEF messages
- Automatic NFC counter triggered at read command
- NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message
- Fast read command
- True anticollision
- 50 pF input capacitance
EEPROM
- 180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page
- 144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages)
- 4 bytes initialized capability container with one time programmable access bits
- Field programmable read-only locking function per page for the first 16 pages
- Field programmable read-only locking function above the first 16 pages per double
- page for NTAG213 or per 16 pages for NTAG215 and NTAG216
- Configurable password protection with optional limit of unsuccessful attempts
- Anti-tearing support for capability container (CC) and lock bits
- ECC supported originality check
- Data retention time of 10 years
- Write endurance 100.000 cycles
Available Chips of 13.56MHz RFID Wristband
Chip Name |
Protocol |
Frequency |
Memory Capacity |
Save |
Function |
Read&Write Time |
FM 11RF08 |
14443A |
13.56MHZ |
1Kbyte |
10year |
Red/Write |
100000 |
MF Classic 1k S50 |
14443A |
13.56MHZ |
1Kbyte |
10year |
Red/Write |
100000 |
MF ultralight |
14443A |
13.56MHZ |
64byte |
5year |
Red/Write |
10000 |
|
NTAG203
|
14443A |
13.56MHZ |
144byte
|
10year |
Red/Write |
100000 |
NTAG213 |
14443A |
13.56MHZ |
144byte |
10year |
Red/Write |
100000 |
NTAG215 |
14443A |
13.56MHZ |
504byte |
10year |
Red/Write |
100000 |
NTAG216 |
14443A |
13.56MHZ |
888byte |
10year |
Red/Write |
100000 |
I-CODE SLI |
15693 |
13.56MHZ |
128byte |
10year |
Red/Write |
100000 |
I-CODE SLI-X |
15693 |
13.56MHZ |
128byte |
10year |
Red/Write |
100000 |
I-CODE SLI-S |
15693 |
13.56MHZ |
256byte |
10year |
Red/Write |
100000 |
MF Classic 4k S70 |
14443A |
13.56MHZ |
4Kbyte |
10year |
Red/Write |
100000 |
MF plus S2KX2K |
14443A |
13.56MHZ |
2Kbyte |
10year |
Red/Write |
200000 |
MF plus S4KX4K |
14443A |
13.56MHZ |
2Kbyte |
10year |
Red/Write |
200000 |
MF Desfire D21 |
14443A |
13.56MHZ |
2Kbyte |
10year |
Red/Write |
500000 |
MF Desfire D41 |
14443A |
13.56MHZ |
4Kbyte |
10year |
Red/Write |
500000 |
MF Desfire D81 |
14443A |
13.56MHZ |
8Kbyte |
10year |
Red/Write |
500000
|

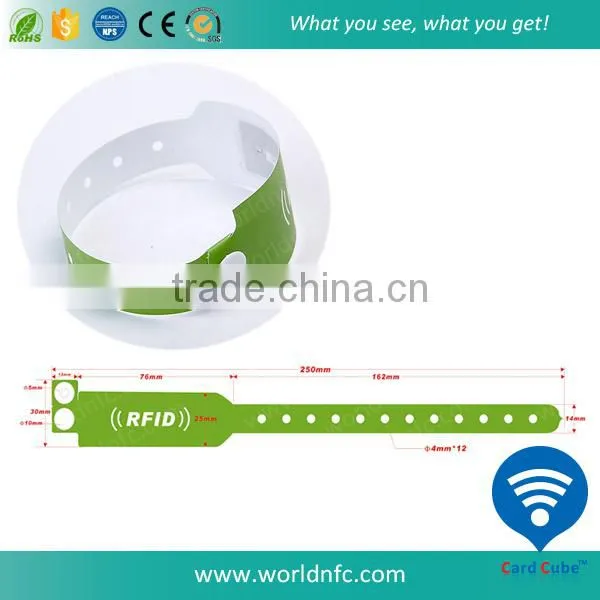

♦Different Design For RFID Paper Wrtistband
More Products for RFID Wristband
Applications of RFID Wristband
-Access Control&Security
-E-payment electronic wallet
-Time Attendance
-loyalty&Membership Management
-rfid asset tracking
-Ticket&Payment
-Club/SPA membership management,reward sand promotion
Factory Photo:
Exhibition:
Payment
♦Packing & Shipping
100pcs/bag, 1000pcs/carton, carton size: 20.5*23*17CM
2000pcs/carton, carton size: 48*23*14 CM
