PVC 5*5 Ultralight RFID Inlay Sheet
Specification of PVC 5*5 Ultralight RFID Inlay Sheet
-1. Material: PVC
-2. Thickness: 0.4/0.45/0.5/0.6mm, Customize
-3. Layout: 2*5, 4*5, 5*5, 4*6, 4*7, 4*8, 3*6, 3*7, 3*8, 4*8, 6*8, 4*10
-3. Color: white, or transparent color
Basic Data of Ultralight
-1. Chip model: Ultralight
-2. Operating frequency: 13.56MHz
-3. RF interface: ISO/IEC 14443A
-4. Opreating distance: up to 10cm
-5. Fast data transfer: 106 kbit/s
-6. True anticollision
-7. Memory: 384 bytes user w/r memory area
-8. Data retention: 5 years
-9. Write endurance: 10000 cycles
Available Chips for RFID Inlay Sheet
LF | TK4100, EM4100, EM4200, EM4305, T5577 |
HF | MF1 IC S50, FM11RF08, MF1 IC S70, FM11RF32, I Code SLI, I Code SLI X, I Code SLI X, Ultralight, Ultrlaight-C, NTAG203, NTAG213, NTAG216 |
UHF | Alien H3 |
Combo Inlay | LF+HF, HF+UHF |
Applications of RFID Inlay sheet:
RFID Inlay sheet is customized for RFID Card production, laminating the inlay sheet with printed printed PVC sheet to be finished RFID Card.

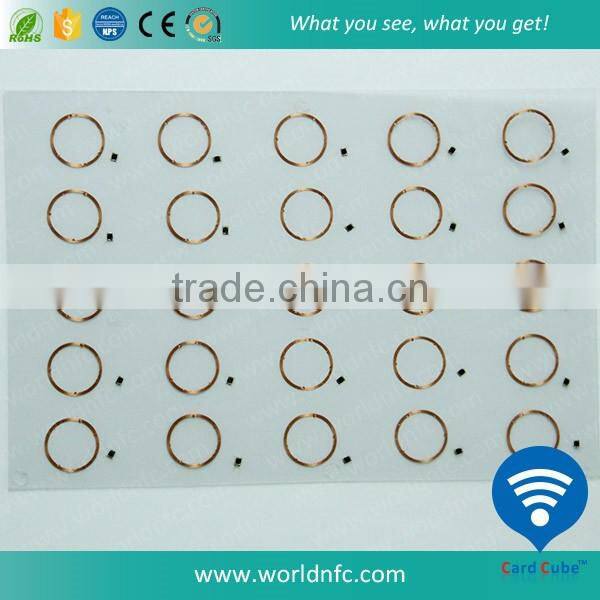

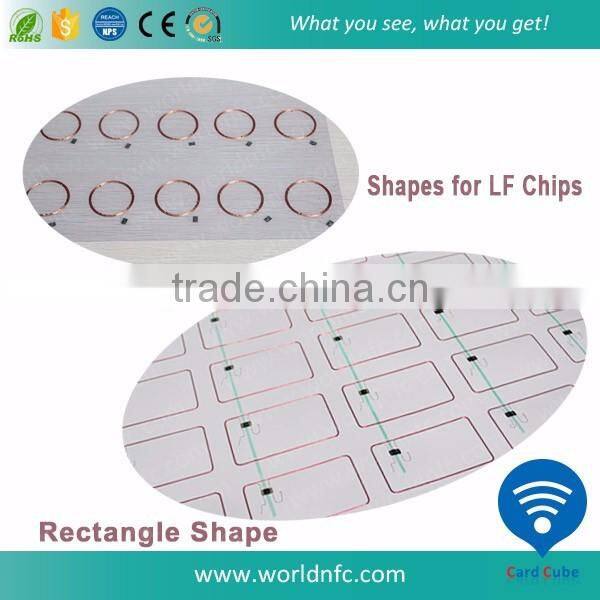

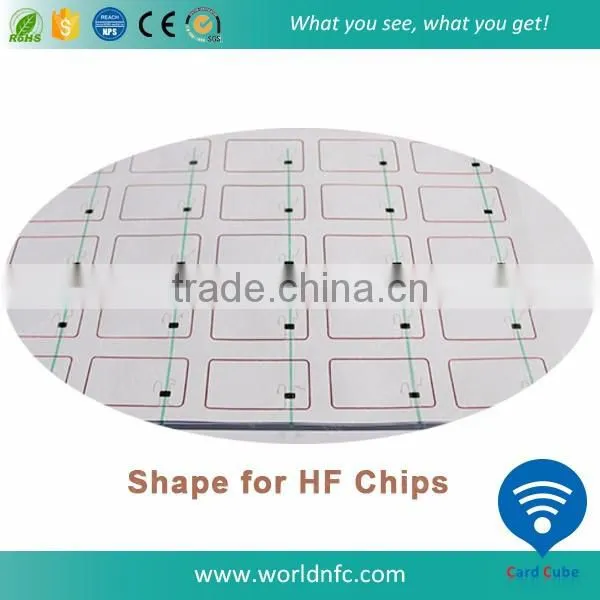

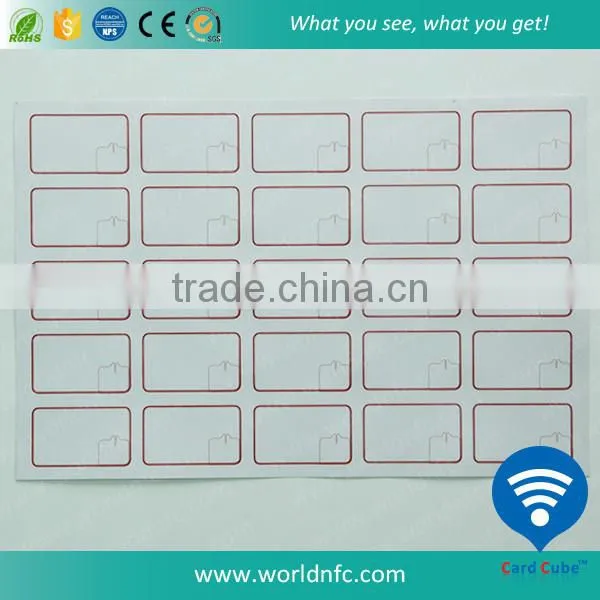

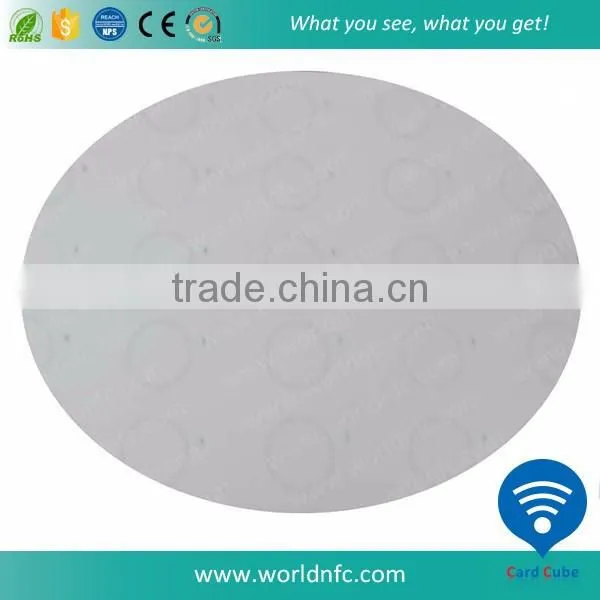

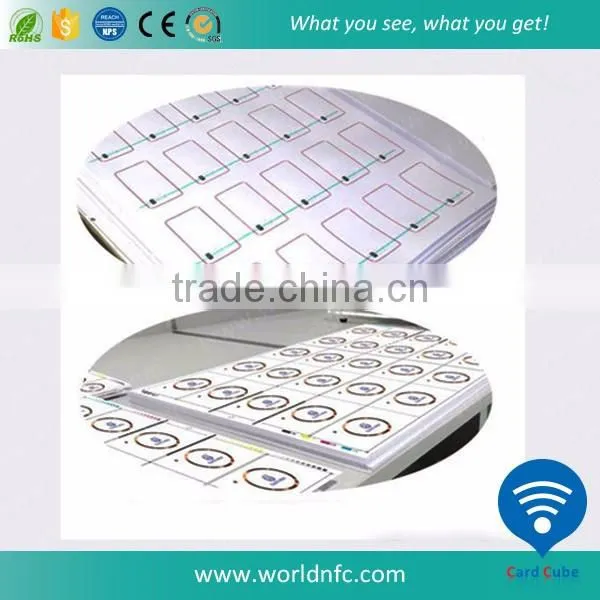

More PVC 5*5 Ultralight RFID Inlay Sheet Pictures:
400sheets / carton; 500sheets /carton; 600sheets/carton;
Payment:

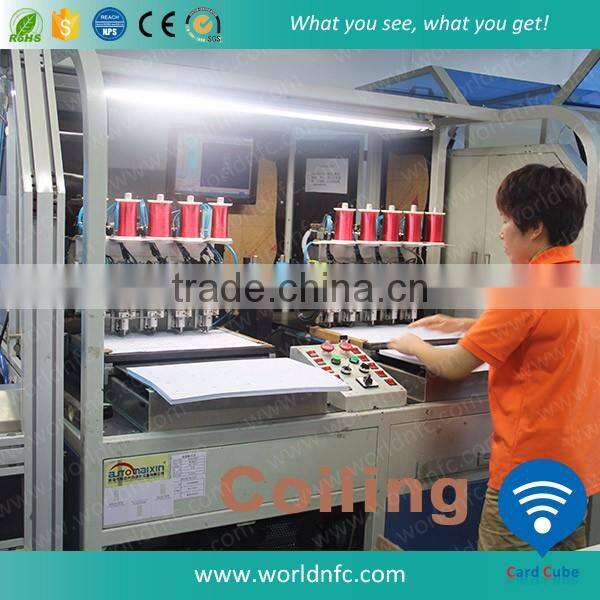

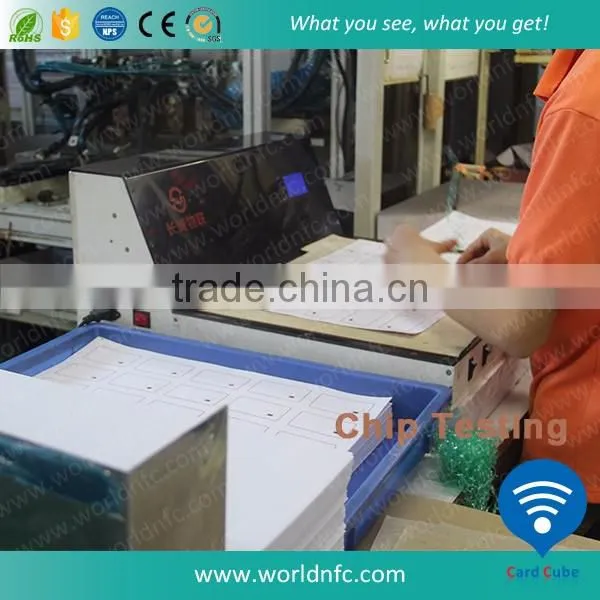

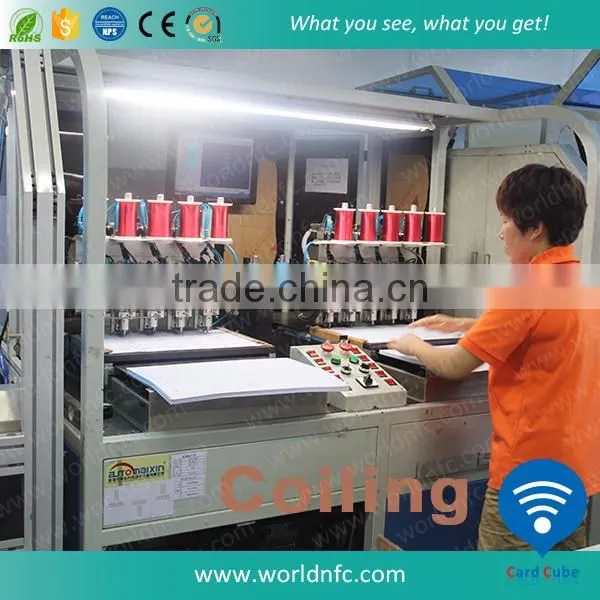

Factory Photo:
Exhibition:
Thanks for your time. Welcome your inquiry for more information and details.
You can also click the button "Send" to send me inquiry.
Free samples are available when you request.
