Product Details
♦Available Chips of RFID Epoxy Tag
|
Available Chips |
Capacity |
Frequency |
Potocol |
Write/Reading |
Reading distance |
Data storage |
TK4100 |
64bits |
125KHz |
ISO7816 |
100000 times |
Up to 10cm(depends on the size of the antenna, and environment) |
more than 10 years |
EM4200 |
64bits |
ISO11784/85 |
||||
em4305 |
512bits |
|||||
T5577 |
363bits |
|||||
S50 |
1k |
13.56MHz |
ISO14443A |
|||
S70 |
4k |
|||||
|
Utralight |
512bits |
|||||
I-Code SLI |
1024bits |
ISO15693 |
||||
Alien H3 |
96bit EPC/512 user memory |
915MHz |
ISO18000-6C |
>5m (depends on the size of the antenna, and environment) |

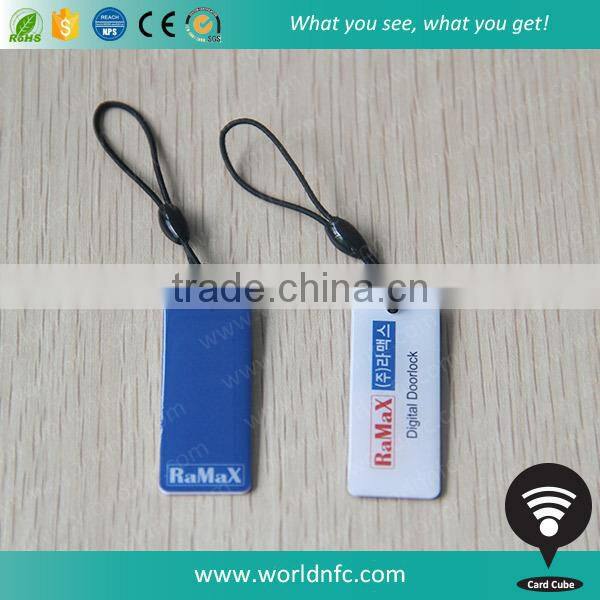

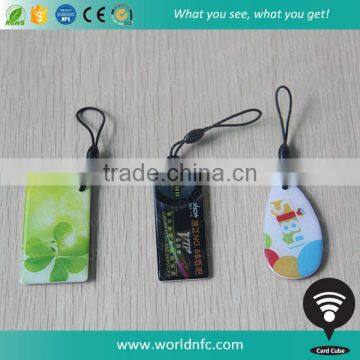

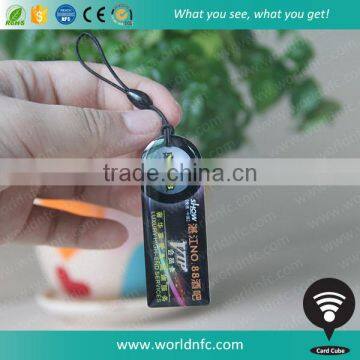

Physical Parameter for Factory Price ISO/IEC 14443A MF Classic 1K NFC Passive Epoxy Tag
1.Material |
Antenna Material |
Copper foil |
Surface material |
Epoxy |
|
2.Chip Available |
MF Classic 1K |
|
3.RFID Parameters |
Frequency |
13.56MHz |
Protocol |
ISO14443A |
|
Operation distance |
Up to 10CM (depend on reader and the size of Cu wire ring) |
|
User memory |
1K |
|
R/W |
Yes |
|
Data retention |
>10 years |
|
4.Dimension |
Size |
25MM, 30MM, 40MM, diameter or customized size |
5.Printing |
Custom logo printing/Silk-screen printing/Off-set printing |
|
6.Environment |
Operation temperature |
-20°C~+75°C |
Storage temperature |
-20°C~+75°C |
|
Features of MF Classic 1K
RF Interface (ISO/IEC 14443 A)
Contactless transmission of data and supply energy (no battery needed)
Operating distance: Up to 100mm (depending on antenna geometry)
Operating frequency: 13.56 MHz
Data transfer: 106 k bit/s
Data integrity: 16 Bit CRC, parity, bit coding, bit counting
Anti-collision
Typical ticketing transaction: < 100 ms (including backup management)
EEPROM
1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of
16 byte)
User definable access conditions for each memory block
Data retention of 10 years.
Write endurance 100.000 cycles
Security
Mutual three pass authentication (ISO/IEC DIS 9798-2)
Individual set of two keys per sector (per application) to support multi-application with
Key applications
Public transportation
Access control
Event ticketing
Gaming & identity
Related products
Available Mold for NFC Tag (Size:MM)
Packaging
100pcs/bag, 1000pcs/carton, carton size: 20.5*23*17 CM
2000pcs/carton, carton size: 48*23*14 CM.
or customized
Payment Terms & Shipment
Payment: L/C, T/T, Western Union, MoneyGram,PayPal; 50% deposits; 50% balance before delivery.
