Home > Electrical & Electronics > Smart Card & Card Reader > IC Card > Epoxy NTAG213 NFC Tag With URL Encoded /Ultralight Tag for Pet Tracking

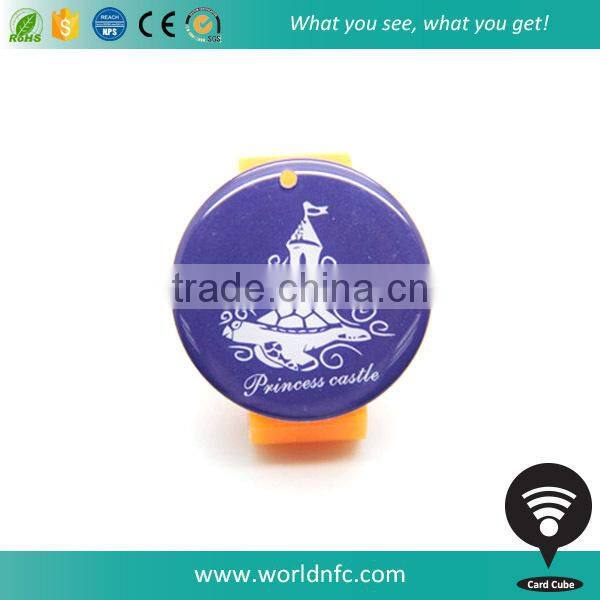

Epoxy NTAG213 NFC Tag With URL Encoded /Ultralight Tag for Pet Tracking

Shenzhen Card Cube Smart Technology Co., Ltd.

US$ 0.05 - 0.85 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

NFC Sticker-J-0037

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number NFC Sticker-J-0037

Associated Brands

Product Details

Epoxy NTAG213 NFC Tag with URL Encoded /Ultralight Tag for Pet Tracking
Material:	Paper, PVC, PET, Epoxy, etc.
Size:	Diameter25MM, 28MM, 30MM, 45*45MM, etc.
Thickness:	0.5~1.2mm
Minimum QTY:	200pcs
Available crafts:	Offset Printing, Digital Printing, etc.
Chip Available:	1K S50 / 4K S70 / Ultralight/ NTAG203/213/215/216 ICODE SLI-L(512 bit) / ICODE SLI(1024 bit) / ICODE SLI-S(2048 bit) EV1 4K EV1 8K Tag-it HF-1 Plus (TI2048, TI 2K) 1K-Compatible: FM11RF08(F08) / MF Classic 1k 4K-Compatible: FM11RF32 / MF Classic 4k plus S 2K/ S 4K Plus X 2K/ X 4K
Chip Available:	Others: UHF (18000-6C, EPC GEN2 ), LF(not available for sticker) (TK4100/EM4200,T5577…
Applications:	Enterprises, bank, traffic, insurance, super marketing, parking, school, library management .access control ect.
Price terms:	We accept EXW/ FOB/CIF/C&Fprice. Payment term: pay by L/C, T/T, Western Union, MoneyGram, or PayPal, . 50% deposit of the total payment before bulk production.
Lead time:	7-9 woking days after the receipt of 50% deposit of the total payment (below 50000 pcs.)
Delivery way:	By express ,by sea or air
Package details:	100pcs/bag, 1000pcs/carton, carton size: 20.52317 CM 2000pcs/carton, carton size: 482314 CM
Sample Availability:	Free samples are available upon request.

Features of NTAG213/215/216

NFC Forum Type 2 Tag compliant IC with 144/504/888 bytes

user memory

The RF-interface is based on the ISO/IEC 14443 Type A standard

Contactless transmission of data and supply energy
Operating frequency of 13.56 MHz
Data transfer of 106 kbit/s
Data integrity of 16-bit CRC, parity, bit coding, bit counting
Operating distance up to 100 mm (depending on various parameters as e.g. field
strength and antenna geometry)
7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
UID ASCII mirror for automatic serialization of NDEF messages
Automatic NFC counter triggered at read command
NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message
Fast read command
True anticollision
50 pF input capacitance

EEPROM

180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page
144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages)
4 bytes initialized capability container with one time programmable access bits
Field programmable read-only locking function per page for the first 16 pages
Field programmable read-only locking function above the first 16 pages per double
page for NTAG213 or per 16 pages for NTAG215 and NTAG216
Configurable password protection with optional limit of unsuccessful attempts
Anti-tearing support for capability container (CC) and lock bits
ECC supported originality check
Data retention time of 10 years
Write endurance 100.000 cycles

Related products

Available Mold for NFC Tag (Size:MM)

Packaging

100pcs/bag, 1000pcs/carton, carton size: 20.5*23*17 CM

2000pcs/carton, carton size: 48*23*14 CM

Payment Terms & Shipment

Payment: L/C, T/T, Western Union, MoneyGram,PayPal; 50% deposits; 50% balance before delivery.

Shipment

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 3-7 days for samples; 7-9 working days for batch goods.
