Printable Smart Crystal Waterproof NFC S50 Epoxy RFID Tag
Product Description
Printable Smart Crystal Waterproof NFC S50 Epoxy RFID Tag
Material: Epoxy/PVC/PET/ABS etc.
Size: D25mm, D28mm, 25*25mm, 30*30mm, 30*25mm or customized
Thickness: 3mm, 4mm, 5mm, or customized
Crafts: QR code printing, Barcode, Logo printing, etc.
Chip: S50
Memory: 1K bytes user memory
Surface finish: glossy or matt
Design format: PDF/AI/CDR/PSD/EPS/INDD outlined format.
Application: Transportation, security system, bio-medicine, library, etc.
Available Chips of 13.56MHz
Chip Name | Protocol | Frequency | Memory Capacity | Save | Function | Read&Write Time |
FM 11RF08 | 14443A | 13.56MHZ | 1Kbyte | 10year | Red/Write | 100000 |
MF Classic 1k S50 | 14443A | 13.56MHZ | 1Kbyte | 10year | Red/Write | 100000 |
MF ultralight | 14443A | 13.56MHZ | 64byte | 5year | Red/Write | 10000 |
NTAG213 | 14443A | 13.56MHZ | 144byte | 10year | Red/Write | 100000 |
NTAG215 | 14443A | 13.56MHZ | 504byte | 10year | Red/Write | 100000 |
NTAG216 | 14443A | 13.56MHZ | 888byte | 10year | Red/Write | 100000 |
MF Classic 4k S70 | 14443A | 13.56MHZ | 4Kbyte | 10year | Red/Write | 100000 |
MF plus S2KX2K | 14443A | 13.56MHZ | 2Kbyte | 10year | Red/Write | 200000 |
MF plus S4KX4K | 14443A | 13.56MHZ | 2Kbyte | 10year | Red/Write | 200000 |
MF Desfire D21 | 14443A | 13.56MHZ | 2Kbyte | 10year | Red/Write | 500000 |
MF Desfire D41 | 14443A | 13.56MHZ | 4Kbyte | 10year | Red/Write | 500000 |
MF Desfire D81 | 14443A | 13.56MHZ | 8Kbyte | 10year | Red/Write | 500000 |
♦Available crafts for Card Features
| Card Surface | Matte,Gloss Finish, Frosted, Lenticular |
| Printing | Offset Printing (CMYK Printing, Spot-color Printing); Silk-screen Printing |
| Specail Craft | gold/silver plated |
| Hot Stamping: hot gold/silver/laser foil | |
| Laser silver/gold | |
| Code: thermal code (white/black); spot jet code /inkjet printing code(black );UV code; convex code(large/small; gold/silver); laser engrave code (golden). sequential number/series number; personalized number. | |
| Magnetic Stripe: Hi-co 2750oe; Lo-co 300oe. width:12.7mm or 8.4mm | |
| Signature Panel: white, brown, gray,etc | |
| Punching Hole: round hole punching, flat hole punching ,ID hole,etc | |
| Barcode : 39 barcode, 13 barcode, 128 barcode; QR code. | |
| Protecting Film/ Security Hologram: laser film/hologram overlay, protective film | |
| Others: carving, protrait, anti-fack logo, UV logo, laser logo, labeling, watermark,etc |

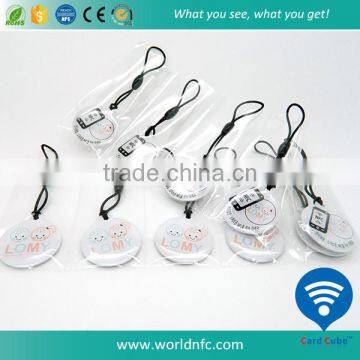

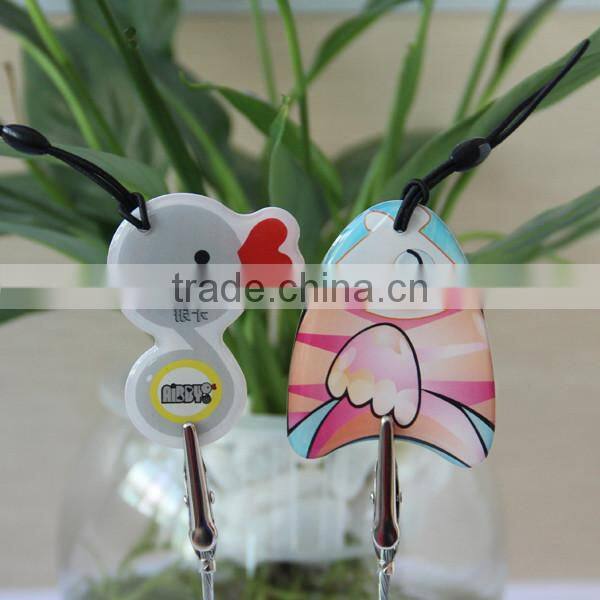

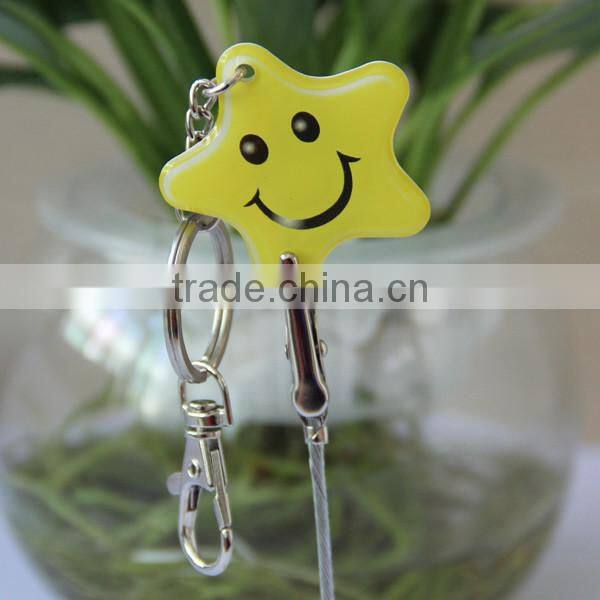

♦Pictures for Epoxy RFID Tag
Craft Works for Plastic Card

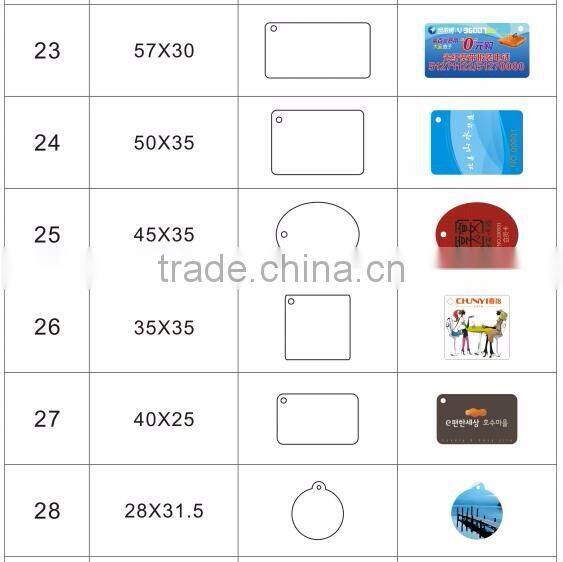

Available Molds for Epoxy RFID Tags(for the size of cards, you can also contact
us for more detailed information) (unit: mm)
FAQ
1.Q: How do I place an order?
A: You can send us email on alibaba directly, or call us at 86-755-89894425.
2.Q: Could your side do certain thickness according to customer's request?
A: Yes, our cards start from 0.01to 0.47inches in thickness, you can ask special thickness also.
3.Q: How long will it take to recieve my cards?
A: About 8~10working days from the time your order form andpayment is recieved. Turnround time also vary depending on options and quantities of orders.
4.Q: Is there a minmum order?
A: The minmum order we do here is 200pcs, but if business can be flexible.
5.Q: what Profile format should I offer?
A: Please have your artwork in Illustrator format and all text outlined, we accept Adobe Illustrator(AI) profile, CorelDRAW(CDR) profile, and other vector EPS files, send along fonts files for those graphics. At the meantime, please save all color photos and vector images as CMYK if the job is to be 4 color process. All color and gray scale photos need to be at 300dpi at the final size that they will be used in your document.
♦Process
Factory Photo:
Exhibition:
Payment:
♦Packing & Shipping
