Competitive Price Dia 30mm Epoxy NFC Tag / Custom Waterproof NFC Tag With URL Encoding

Shenzhen Card Cube Smart Technology Co., Ltd.

US$ 0.025 - 0.6 MOQ: 200 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

NFC Sticker-J-0016

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number NFC Sticker-J-0016

Product Description

Features of NTAG213/215/216

NFC Forum Type 2 Tag compliant IC with 144/504/888 bytes

user memory

The RF-interface is based on the ISO/IEC 14443 Type A standard

Contactless transmission of data and supply energy
Operating frequency of 13.56 MHz
Data transfer of 106 kbit/s
Data integrity of 16-bit CRC, parity, bit coding, bit counting
Operating distance up to 100 mm (depending on various parameters as e.g. field
strength and antenna geometry)
7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
UID ASCII mirror for automatic serialization of NDEF messages
Automatic NFC counter triggered at read command
NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message
Fast read command
True anticollision
50 pF input capacitance

EEPROM

180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page
144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages)
4 bytes initialized capability container with one time programmable access bits
Field programmable read-only locking function per page for the first 16 pages
Field programmable read-only locking function above the first 16 pages per double
page for NTAG213 or per 16 pages for NTAG215 and NTAG216
Configurable password protection with optional limit of unsuccessful attempts
Anti-tearing support for capability container (CC) and lock bits
ECC supported originality check
Data retention time of 10 years
Write endurance 100.000 cycles

Available Chips of NFC Tag

Chip Name	Protocol	Frequency	Memory Capacity	Save	Function	Read&Write Time
FM 11RF08	14443A	13.56MHZ	1Kbyte	10year	Red/Write	100000
MF Classic 1k S50	14443A	13.56MHZ	1Kbyte	10year	Red/Write	100000
MF ultralight	14443A	13.56MHZ	64byte	5year	Red/Write	10000
NTAG203	14443A	13.56MHZ	144byte	10year	Red/Write	100000
NTAG213	14443A	13.56MHZ	144byte	10year	Red/Write	100000
NTAG215	14443A	13.56MHZ	504byte	10year	Red/Write	100000
NTAG216	14443A	13.56MHZ	888byte	10year	Red/Write	100000
MF Classic 4k S70	14443A	13.56MHZ	4Kbyte	10year	Red/Write	100000
MF plus S2KX2K	14443A	13.56MHZ	2Kbyte	10year	Red/Write	200000
MF plus S4KX4K	14443A	13.56MHZ	2Kbyte	10year	Red/Write	200000
MF Desfire D21	14443A	13.56MHZ	2Kbyte	10year	Red/Write	500000
MF Desfire D41	14443A	13.56MHZ	4Kbyte	10year	Red/Write	500000
MF Desfire D81	14443A	13.56MHZ	8Kbyte	10year	Red/Write	500000

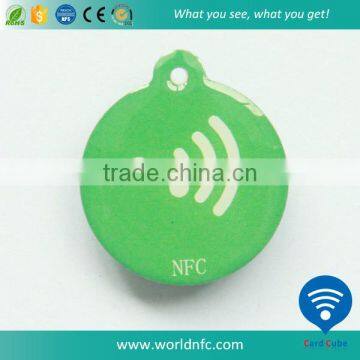

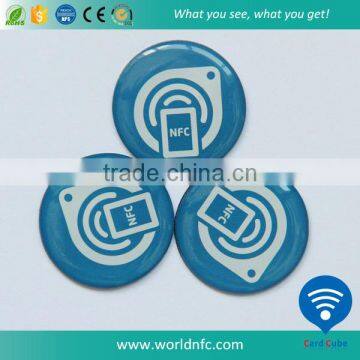

♦Pictures of Epoxy NFC Tag

Applications

NFC In Our Daily Life

♦Shipping

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door.

2. By bus,ferry and other transportation means.

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 3-7 working days for samples; 7-9 working days for batch goods.
