Specifications
1- Professional design of nfc key card2- High quality with fast deliver time
3- Suport OEM/ODM
High quality factory making NFC Card :
NTAG213(NTAG203 update), NTAG215 and NTAG216 are designed to fully comply to NFC Forum Type 2 Tag and ISO/IEC14443 Type A specifications.
1-Target applications include Out-of-Home and print media smart advertisement, SoLoMo applications, product authentication, NFC shelf labels, mobile companion tags.
2- Target use cases include Out-of-Home smart advertisement, product authentication, mobile companion tags, Bluetooth or Wi-Fi pairing, electronic shelf labels and business cards. NTAG series memory can also be segmented to implement multiple applications at the same time.
RFID Cards Features:

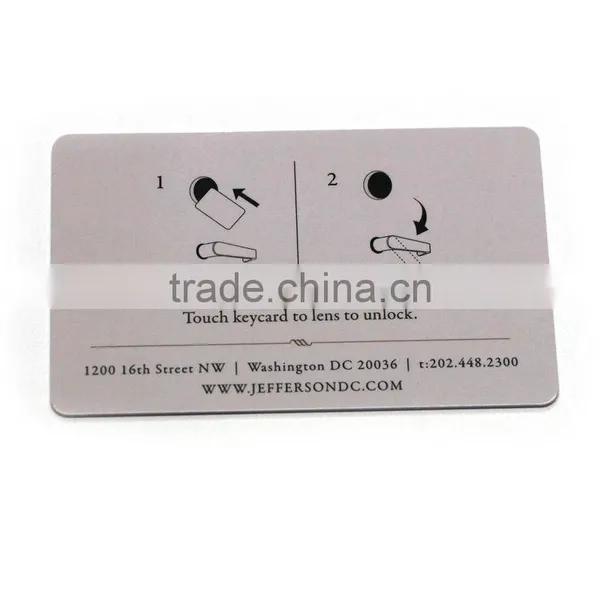

| Name | NFC key card to lens to open door |
| Material | PVC |
| Size | 85.5mm*54mm |
| Thickness | 0.84mm |
| Fraquency | 13.56mhz |
-Security
Manufacturer programmed 7-byte UID for each device
Pre-programmed Capability container with one time programmable bits
Field programmable read-only locking function
ECC based originality signature
32-bit password protection to prevent unauthorized memory operations
-NFC Forum Tag 2 Type compliance
NTAG series IC provides full compliance to the NFC Forum Tag 2 Type technical specification and enables NDEF data structure configurations.
- Anticollision
An intelligent anticollision function allows to operate more than one tag in the field simultaneously. The anticollision algorithm selects each tag individually and ensures that the execution of a transaction with a selected tag is performed correctly without interference from another tag in the field.
-Chip detail
- Contactless transmission of data and supply energy
- Operating frequency of 13.56 MHz
- Data transfer of 106 kbit/s
- Data integrity of 16-bit CRC, parity, bit coding, bit counting
- Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)
- 7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
- UID ASCII mirror for automatic serialization of NDEF messages
- Automatic NFC counter triggered at read command
- NFC counter ASCII mirror for automatic adding the NFC counter value to the NDEF message
- ECC based originality signature
- Fast read command
- True anticollision
- 50 pF input capacitance
-EEPROM
- 180, 540 or 924 bytes organized in 45, 135 or 231 pages with 4 bytes per page
- 144, 504 or 888 bytes freely available user Read/Write area (36, 126 or 222 pages)
- 4 bytes initialized capability container with one time programmable access bits
- Field programmable read-only locking function per page for the first 16 pages
- Field programmable read-only locking function above the first 16 pages per double page for NTAG213 or per 16 pages for NTAG215 and NTAG216
- Configurable password protection with optional limit of unsuccessful attempts
- Anti-tearing support for capability container (CC) and lock bits
- ECC supported originality check
- Data retention time of 10 years
- Write endurance 100,000 cycles
Craftwork:
Chipsets:
Cards production process:
Card Cube all products:
Packaging & Shipping, Trade Terms:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 7-10 days for batch goods.
1. Payment: T/T, Western Union, MoneyGram,PayPal; 50% deposits; 50% balance before delivery.
2. MOQ: 1000pcs;
3. Package Informations: 1000pcs carton/box is 230*196*168CM;
Why choose us?
1.We are Alibaba Assessed 3 years Gold Supplier.
2.We are a factory manufacturing RFID and NFC products,best production capability ,best quality control, Best Service .
3.100% QC inspection Before Shippment.
Every card will be done four times QC before delivering.
4. ISO Standard listed,competitve price.
