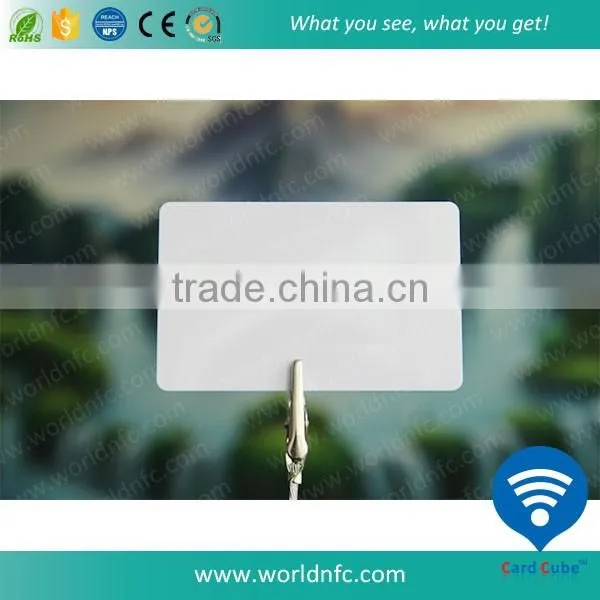

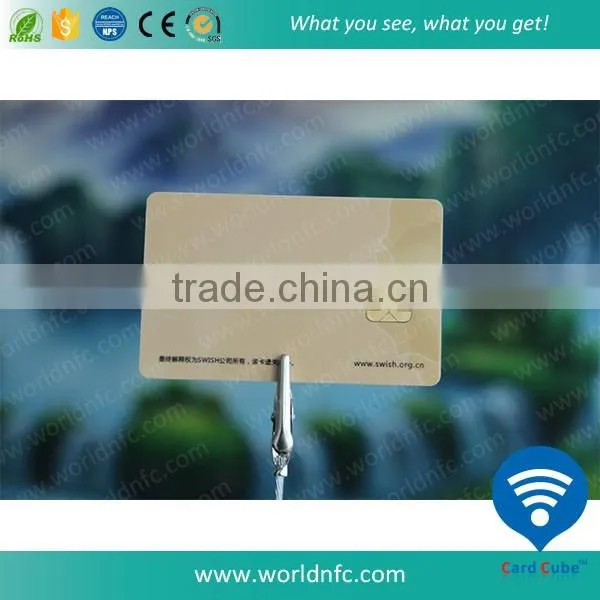

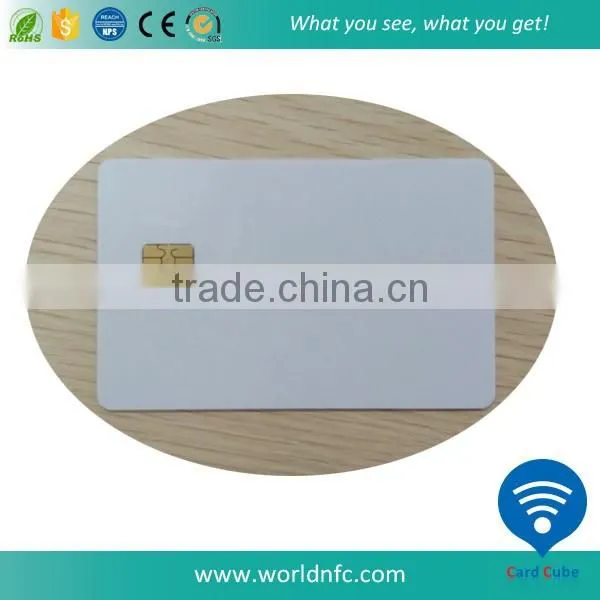

Full Color printing Contact chip SLE4428 PVC Memory Chip Card
Features of SLE4428 Chip
- Ø Mode: Read / Write
- Ø Data retention: 10 years
- Ø Write endurance: 100,000 Cycles
-
Ø Chip: SLE4428/5528, FM4428/5528
- Ø 256 * 8 bit EEPROM oranization of Data Memory
- Ø 32 * 1 bit Protection Memory
- Ø Byte-wise write protection of first 32 address (byte 0.....31) of Data Memory
- Ø Manufacturer Code for unique identification of application
- Ø Data Memory (Address 0....255) alterable only after verification of 3-Byte programmable security code (PSC)
- Ø Two-wire link protocol
- Ø Byte-wise addressing
- Ø End of processing indicated at data output
- Ø Contact configuration and Answer-to-Reset (synchronous transmission) in accordance to standard ISO/ IEC 7816
- Ø Sophisicated electronical characteristics
- Ø Ambient temperature -40...+80℃ for chip, -25...80℃ for module
- Ø Supply voltage 5V±10%
- Ø Supply current < 3 mA (typical 600 uA)
- Ø EEPROM erase / write time 5 ms
- Ø ESD protection typical 4,000 V
- Ø EEPROM Endurance minimum 100,000 erase / write cycles
- Ø Data retention for minimum of 10 years
Advance 1.2 um CMOS-technology optimised for security layout
- EEPROM-cells protected by shield
- Shielding of feeper layers Via metal
- Sensory and logical security functions
- No isolation on backside necessary
Crafts available
Product details
Material |
PVC/PET/ABS |
Size |
86*54*0.88mm or Customized |
Minimum QTY |
200 pcs |
Card Surface |
Blank, Matte/Glossy/Frosted Finish |
Humidity environment |
suitable for indoor and outdoor use dirt, dust, and water resistant |
Available crafts |
4 color offset printing, embossing number, signature panel, photo, barcode, thermal printing, gold/silver hot stamp, scratch-off, series number, hole punched, UV printing etc. |
Numbering |
Digital Number/Thermal transfer/Laser engrave |
Barcode printing |
EAN13, code 39, code 128 |
Embossing |
Gold & Silver |
Applications |
Enterprises, bank, traffic, insurance, super marketing, parking, school, library management .access control etc. |
Lead time |
5-10 working days |
Sample Availability |
Free samples are available upon request. |
Lead time
For Sample: 1~2 days after confirm the sample requirement
For order: 7 ~10 days, urgent order can be talked before the order production
Package details
Option 1: 1pcs/opp; 200 pcs/box; 10 boxes/carton
Option 2: 1pcs/opp, 250pcs/box, 20boxes/carton.
Canton Size
1000pcs carton/box is 17*20.5*23CM;
2000pcs carton/box is 48*23*14CM;
3000pcs carton/box is 48*23*19.5CM;
4000pcs carton/box is 48*27*23.5CM
5000pcs carton/box is 48*31*23CM.
Shipping Method
Option 1: Door-to-door service by Express: DHL, FedEx, TNT, UPS, EMS
Option 2: By Air if order is urgent
Option 3: By sea for bulk order
