Radio Modem, Wireless RF Data Transceiver With High Speed Modem

Product Description

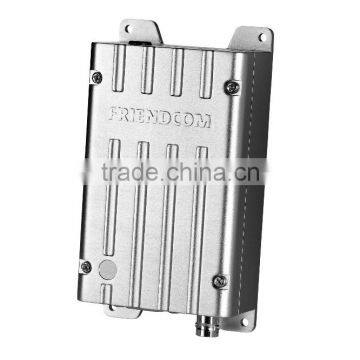

FC-302 is a synthesized 5-watt FM transceiver module, which is designed for data transportation and voice communication. For the voice communication, it can support selected pre-emphasis, squelch and audio amplifier. Two-point modulation with good low-frequency response is applied in the radio that makes it a competitive choice for 9600-baud rate data application. Compact dimension and wide range DC support make it flexible to use.

Features

 • CE, FCC& AS/NZS 4295: 2004 certified
• Programmable 16 channels with Dip-Switch
• Configurable power save feature
• Optional external channel change
• FSK, FFSK& GMSK modem option
• Frequency step 5 KHz/6.25KHz
• CTCSS/DCS
• Support maximum RF data rate: 19200bps
• Fast start-up time: 5ms
• SQ programmable via PC
• Pocsag Modulation support
• PC programmable & Software tune & Calibration

Applications
•  Industrial telemetry & wireless remote control
•  Gas and oil flow monitoring
•  Electricity, water and gas utilities
•  Earthquake, weather, environmental protection and urban lighting control
•  Vehicle tracking and asset tracking systems
•  Water monitoring, wastewater management and irrigation control
•  Railway, police, army automation system
•  Aerial defense and fire alarm system
•  Wireless Paging system
