XLD-WSCDJ08 Automatic car safety inspection system
1 The necessary of Developing and using the Car safety inspection system.

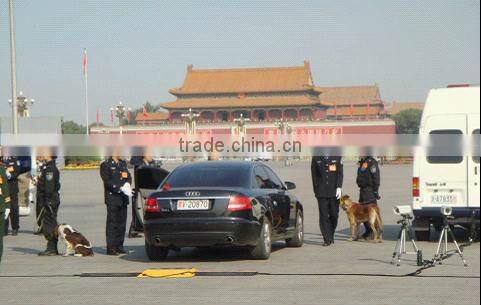

1.1The vehicle chassis security of necessity
When the time's steps into the 21st century,It was found that:Along with the domestic and international forms of change,the good wishes of the people wants peace,development was broken again and again.Recently,The worldwide anti-terrorism situation is worsening.
Continuously,there are Terrorist use of a vehicle carrying bombs,Create bloody terror cases,at the same time Using the car bottom to hide drugs and other Contraband smuggling is increasingly rampant
2 summarize
2.1Main components of system

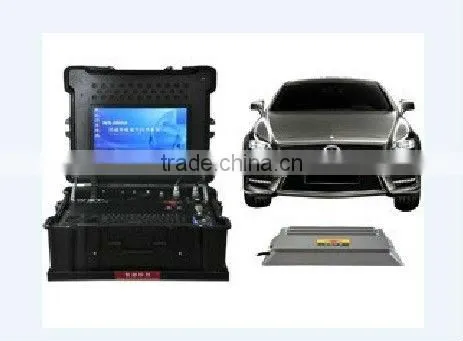

The car inspection system developed by our company is mainly consist of Car scanner,License plate collection devices,Components of communication cable.And the master of computer and accessories.
2.2 Main components of the function
serial number | Parts name | function declaration
|
1 | main control computer | Mainly responsible for the car at the end of the digital signal processing and display,License plate video real-time display,License plate information archive and print storage |
2 | License plate collection devices | Mainly responsible for collecting car licence and appearance,Easy to find later. |
3 | Car scanner | The core of the whole system,Primarily responsible for the bottom of the vehicle image acquisition and handle work. |

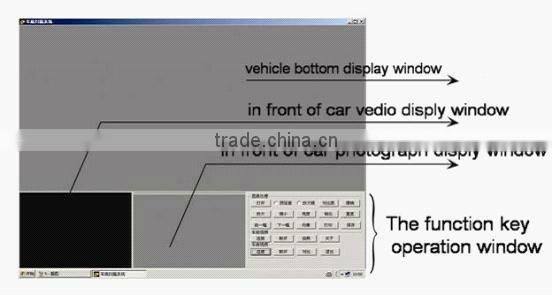

4.1 The function key operation window (illustrate)

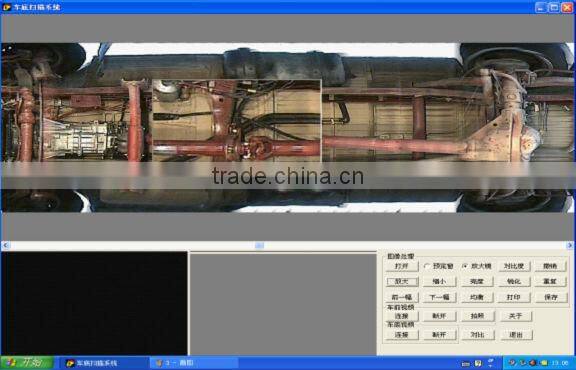

magnifying glass:By clicking on the magnifying glass,Any part of the image of the car bottom partial enlarged,In order to better find dangerous goods in the bottom of the car.

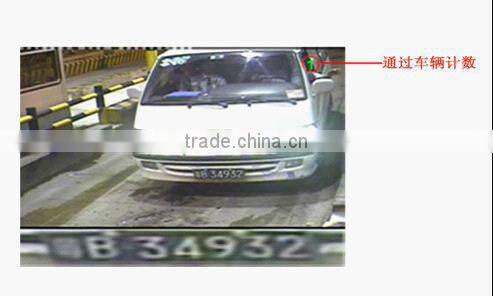

vehicle license plate recognition:vehicle license plate recognition can Fast and accurate automatic license plate number and vehicle appearance filmed and saved automatically,at the same time,with the function of Vehicle by counting
License plate recognition cameras Placed in car bottom in front 5-8metres.The main window Right-Bottom There are two browse button,Is the forward button,Is the back button,In the process of software running can Identify Results by these two bottom
5 technical parameters
Equipment chassis size:740mm×650 mm×830 mm
1. main control computer (MCC)
Displayer:19 inchTFT1280X1024 True color LCD screen
l CPU:performance is better than INTEL Core dual-core processor,main board:Industrial control professional main board
l Memory:DDR second-generation Larger than 1GB
l The hard disk:250G Serial high-speed hard disk
l Display card:high speed graphics accelerator card
l Machine box:ATX Specialized industrial control box
l Chassis imaging display time:<1 second
l The chassis storage or load time:<1 second
l Chassis image storage format:Standard BMP image format,JPEG
l operating system:can be used in WINDOWS9X,2000,ME,XP
l working voltage:AC110-240V 50/60Hz
l working current:3A
l operating temperature:-20°C~55°C
l Data transfer cable length:2m
(Remarks:The Host Parameters can be configured according requirment)
2. vehicle bottom scanner
Detection of the speed:<30km/h;
l Chassis image resolution:Max resoluion ratio is better than 1mm;
l View Angle:>130º
l Lighting:Imported high brightness light source 150w
l Video Standards:NTSC_M
l working voltage:AC220V 50/60Hz
l working current:2.2A
l operating temperature:-20°C~55°C
l Data transfer cable length:20m
l size:570 mm×370 mm×70 mm
3. License plate collection devices
l working voltage:AC24V
l working current:500mA
l operating temperature:-20°C~55°C
l Data transfer cable length:18m
l The tripod condensation height:0.8m
l The tripod stretching height:1.75m
