Under vehicle inspection system
Description

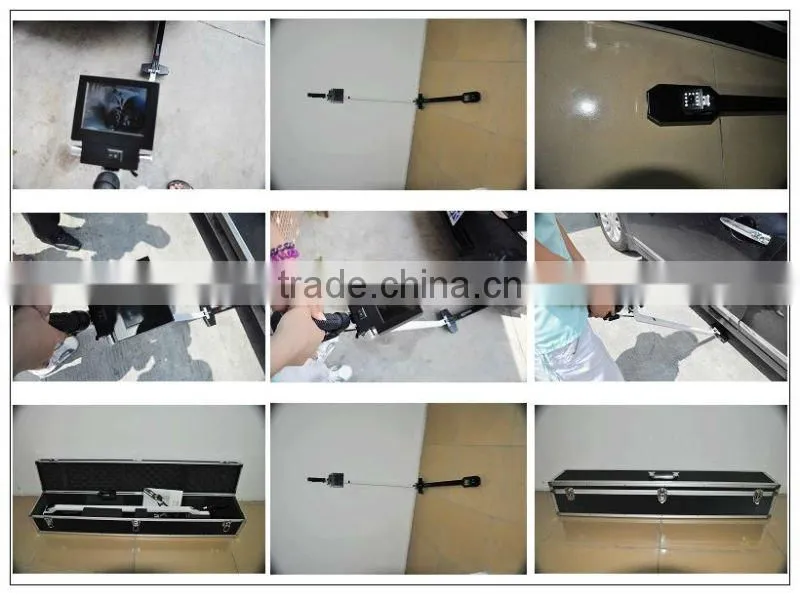

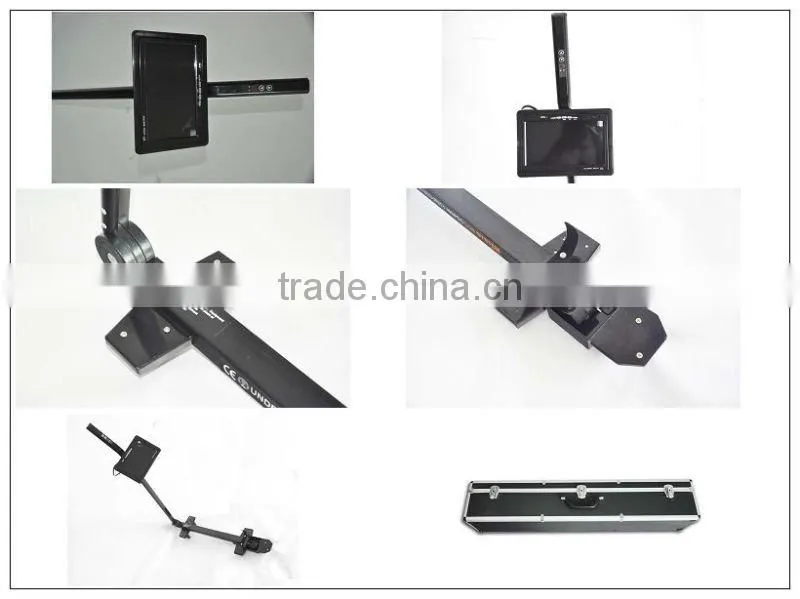

XLD-CDJC01 Portable Vehicle Bottom Detector System is the latest product pushed out by SHENZHEN XINLIDAHONG TECHNOLOGY CO.LTD. Mainly used in inspecting the overall structure of the car bottom, to ensure if the car bottom are illegal changes or hiding suspicious objects or personnel. It also can be used in the bottom of table ,chair, bed, document cabinet and so on. And the place of high platform, pipeline, pipe shaft, the interior of pipe, the interior of camera obscura , in which human body can not reach.
Monitor
| Model:-------------------------------4 inch Colour TFT LCD Resolution:-------------------------480(W) *234(H) Display area:-----------------------82.1(W)*62.8(H) mm Dot Matrix:------------------------0.171(W) *0.261(H)
|
Camera
| Model:------------------------------F2.5 Wide-Angle CCD Rotation Angle:-------------------130° Adjustment:----------------------- Steel wire control by hand Camera Pixel: ------------------------------ NTSC 512(H) 492(V) / PAL 500(H)482(V) Resolution:-------------------------420 TV lines Working Voltage: -----------------DC 12V 90MA
|
Battery
| Capacity: ------------------------------220MAh Recharge Mode:------------ ---------Battery recharge alone or united Recharge Voltage------------- -------110~240V Output Voltage------------------------9~12.6V Low battery alarm(Option) ---------Buzzer alarm when battery voltage lower than 10V Working Time-------------------------About 7 hours Continuous Working temperature ----------------0~60
|
Others
| Net weight-----------------------------3.5KG Volume: --------------------------------1023( Open 1790 )* 149*156 mm
|
Pakage with Aluminous Box
| Gross wightt-----------------------------8KG Volumetric Weight ---------------------9.5KG Package Size ---------------------------21*23*114cm
|
Features:
| *Adopt 1.0mm strip steel for the products, good appearance,light and handy and convenient to operate. * High capacity Lithium battery for long time use.Higher capacity battery can be ordered according to different requirements. *Portable design with wheels and handle, much more easier to operate and move. *Assistant LED lights design for dark conditions,real-time show the result on LCD screen and avoid facula. *Foldable design,easy to take with and can detect hole depth 1790mm when it is formed a 180 degree angle . *The two parts of the products can be locked together when fold,stable and can use a belt to carry with.Package with aluminous box,convenient to move and take with. *Far from fire and electric shock ,pls do not put the machine in wet place or rain,operation and maintenance pls follow the user manual.
|
