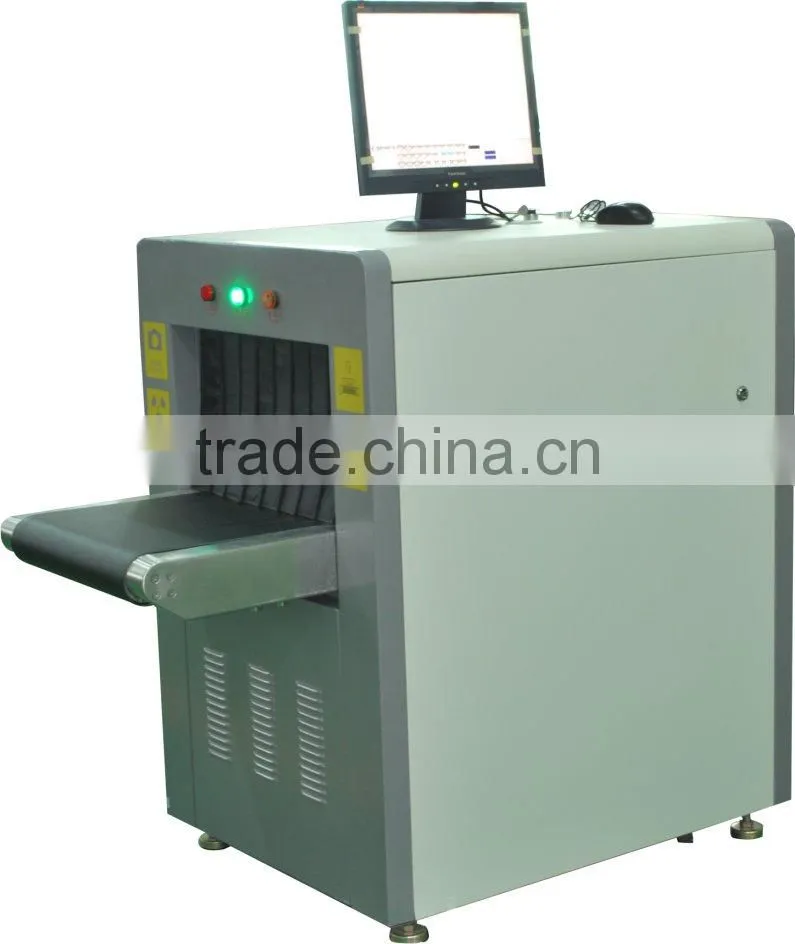

Airport security inspection machine luggage/pacel/suitcase/baggage scanners with high resolution 17inch color lcd
1.Main Features
Alarm by sounds&light: Alarm by sound and light when confirm to condition
Network interface: It can connect to local area network and support multi-terminal check baggage at same time.
Safty ray: Transmit ray under automatic control, avoiding any baggage missing.
Image monitoring for user-friendly: The monitor use fold, rotary system, operators, adjusts the monitor position willfully according to our own need, reduce wearily.
Simple operation by mouse: Without keyboard and work table, control by mouse, save space.
Turn off a key control: Turn off the machine only need one step, revolove the key then the equipment automatic secuirty close down and no need complex steps.
Eagle-eye: It can be expediently observing enlarged area.
Estimate malfunction by self: Automatic estimate malfunction and prompt message, helpful for maintenance.
2.Technical data
Tunnel size: 505(W)x305(H) mm
Conveyor speed:0.16m/s
Single inspection dosage: <0.1mr
Wire resolution: 0.1mm metal line
Steel penetration: 5mm amor plate
Film safety: for ISO 1600
Maxmum leakage radiation: <0.1mr/H
3.X-Ray generator
Orientation: vertically upward
Tube current: 0.4-0.5MA(adjustable)
Anode voltage: 80KV(adjustable)
Angle: 60 degree
Generator cooling/working periods, sealed oil bath with forced air/100%
4.Image performance system
X-ray sensor: 1 Type photo-diode array detector, 120bit
Monitor: High resolution 17inch color led display
Color quality: 24 bit real colors
Edge enhancement: object contour edge is more distinct
Super image enhancement: image detail is more distinct
High penetrate strength display: increase brightness of dark area in image to diplay object which is behind high absorption mass distinctly
Low penetrate strength display: increase brightness of image/decrease brightness of image
Image recurrence: display previous twenty images and process any one of them
Image restoration: restore image to initial status at the time of stopping conveyor
Image storing: real time store any image and process it in operation status
5.Multi-energy function
Multi-energy color: display organic material for orange, display inorganic material for blue, and display mixture for green
High enery/low energy: switch to display tow energy type, high energy stands for metal etc, low energy stands for non metallic
Auxilitay function for drugs &explosives: help to detect such dangerous material as drugs&explosives ect
Audible&visible alarm: give sound and visible signal when confirming to condition
6.Operating environment
Storage temperature: -20°C to 60°C
Operating temperature:0 °C to 45 °C
Relative humidity: 20 to 95% non-condensing
System power:220VAC (±10%) 50±3HZ
Power wastage: 1.0KW(max)
Noise: <65DB
