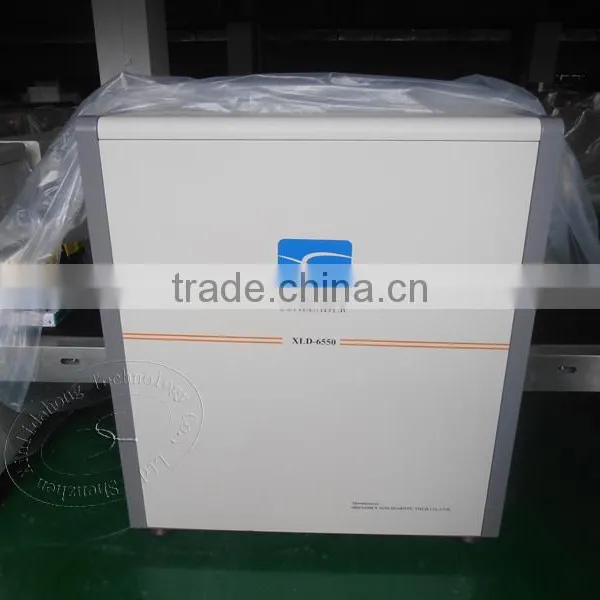

High sensitivity throught type x-ray baggage scanner equipment XLD-6550

Model XLD-6550 x-ray baggage scanner

Product Feature

1 Alarm by sounds & light

   Alarm by sounds and light when conform to condition

2 Network interface

   Could be connect local area network and support multi-terminal check baggage at same times

3 Safety ray

   Transmit ray under automatic control, avoids the miss.

4 Simple operation by mouse

   Without keyboard and work table, control by mouse, save space.

5 Turn off by a key control

   Turn off the machine only need one step revolves the key. The equipment automatic security         close-down, does not need complex many steps, is simpler.

6 Eagle-eye Could be expediently observing enlargement area.

7 Estimate malfunction by self

  Automatic estimate malfunction and prompt message, helpful for the maintenance.

TECHNICAL DATA

Tunnel Size: 650(W)×500(H)mm

Conveyor Speed: 0.22 m/s 1

Conveyor Max Load: 100 kg

Single inspection dosage  < 1.5µGy

Wire Resolution: 0.1mm metal line

Steel Penetration: 30MM armor plate

Film Safety: For ISO 1600

Maximum leakage radiation  <0.3µGY/H

X-RAY GENERATOR

Orientation: Vertically Upward

Tube Current: 0.4~1.2MA(adjustable)

Anode Voltage: 100~160 KV(adjustable)

Angle: 80°

Generator cooling/working periods Sealed oil bath with forced air/100%

IMAGE PERFORMANCE SYSTEM

X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT

MONITOR: HIGH RESOLUTION 17INCH COLOR LCD DISPLAY

COLOR QUALITY: 24 BIT REAL COLORS

EDGE ENHANCEMENT: OBJECT CONTOUR EDGE IS MORE DISTINCT

SUPER IMAGE ENHANCEMENT: IMAGE DETAIL IS MORE DISTINCT

HIGH PENETRATE STRENGTH DISPLAY: INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY

LOW PENETRATE STRENGTH DISPLAY:INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY

MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT

BRIGHTENING/DIMMING:INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE

IMAGE RECURRENCE:DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM

IMAGE RESTORATION:RESTORE IMAGE TO INITIAL STATUS AT THE TIME OF STOPPING CONVEYOR

IMAGE STORING:REAL TIME STORE ANY IMAGE AND PROCESS IT IN OPERATION STATUS
