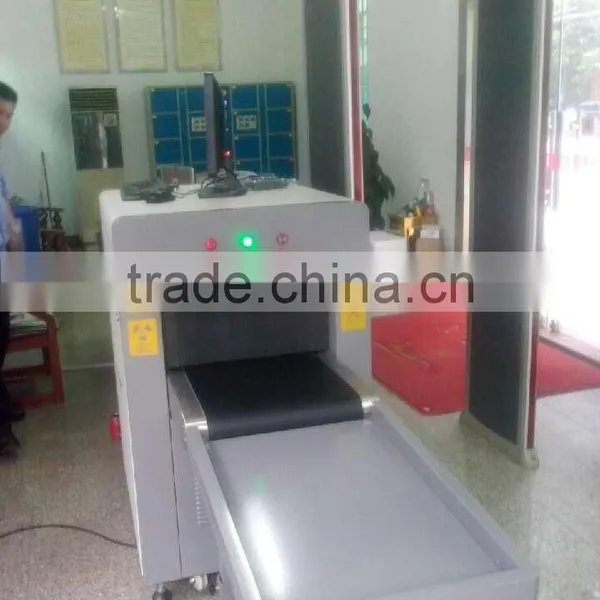

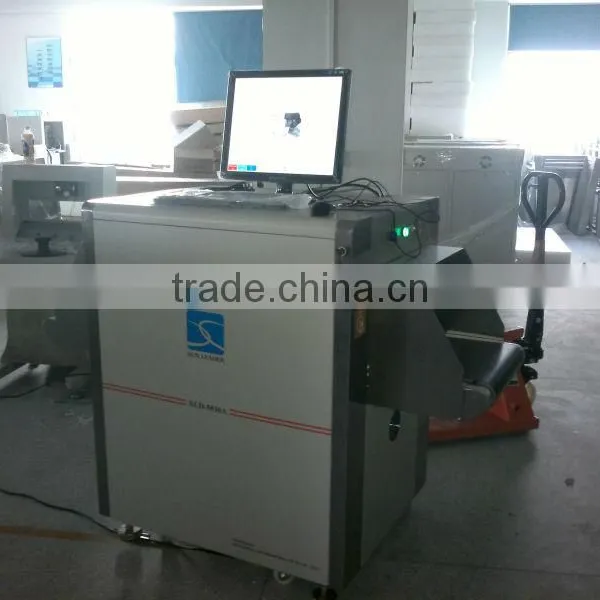

X-ray baggage scanner XLD-5030A
Technical Parameter:
Tunnel size: 500(w)×300(h)mm
conveyor speed: 0.22 m/s
conveyor max load: 20 kg
single inspection dosage < 1.5µgy
wire resolution: 0.1mm metal line
steel penetration: 8mm armor plate
film safety: for iso 1600
maximum leakage radiation <0.3µgy/h
X-ray generator:
Orientation: vertically upward
Tube current: 0.4~0.5ma(adjustable)
Anode voltage: 80 kv(adjustable)
Angle: 60°
FEATURE:
1. Alarm by sounds & light:Alarm by sounds and light when conform to condition.
2. Network interfaceCould be connect local area network and support multi-terminal check baggage at same times
3. Safety rayTransmit ray under automatic control, avoids the miss
4. Image monitoring for user-friendlyThe monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.
5. Simple operation by mouseWithout keyboard and work table, control by mouse, save space.
6. Turn off by a key controlTurn off the machine only need one steprevolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
7. Eagle-eyeCould be expediently observing enlargement area.
8. Estimate malfunction by selfAutomatic estimate malfunction and prompt message, helpful for the maintenance.
1. What is the minimum order quantity?
The MOQ is 1 piece.
2. What is the lead time?
3-5days after T/T payment, for other products please contact us for details.
3. What is the payment term?
The payment term is T/T ,L/C before shipment.
4: How does your company and factory do regarding quality control?
Every products will be detected after producing and approved by ISO9001,CEand RoHS certificate.
