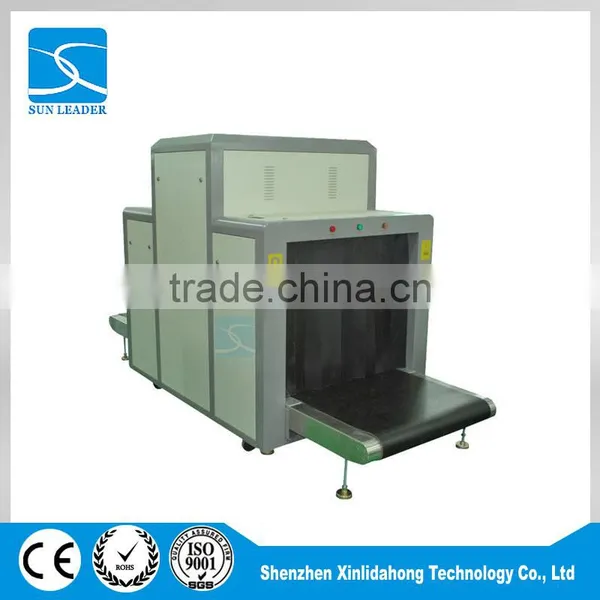

X-ray baggage scanner XLD-10080
Quick Detail:
1,Resolution: diameter of Ø 0.1mm metal wire
2,Cooling: seal oil cooling
3,Constituencies and to enlarge multiple: 1-9 constituencies can choose,and amplification,2,4,8 and achieve full-screen continuous observation
Specifications:
Model |
XLD-10080 |
Tunnel Size: |
100×80cm |
Conveyor speed: |
1.6m/s |
Maximum belt load: |
200KG |
A single dose of inspection: |
<0.1mR |
Resolution: |
Diameter of Ø0.1mm metal wire |
Penetration: |
30mm steel plate |
Tube Voltage: |
140KV |
Cooling/work cycle: |
Seal oil cooling/100% |
Display: |
19-inches LCD display standard MPRII,and TC003 standards |
Image Processing |
Color/black and white image anti- as shown,edge enhancement,image enhancement,high penetration,low penetration,image back,alarm function,image preservation,image retrieval |
Gray-scale image: |
4096 |
Image resolution: |
1024×768 |
Image Processing: |
24 bit real time |
Operating Temp /Humidity: |
0℃-45℃ / 20%-95% |
Storage Temp /Humidity: |
-20℃-60℃ / 20%-95% |
Operating Voltage: |
220V AC(±10%),50Hz±3Hz |
Power Loss: |
0.5KVA |
Description:
Single inspection dosage < 1.5µgy
Wire resolution: 0.1mm metal line
Film safety: for ISO 1600
Maximum leakage radiation <0.3µgy/h
X-ray sensor:l type photo-diode array detector, 12bit
Monitor: high resolution 19inch color lcd display
Color quality:24 bit real colors
Edge enhancement:object contour edge is more distinct
Super image enhancement:image detail is more distinct
Image recurrence:display previous twenty images and process any one of them
Image restoration:restore image to initial status at the time of stopping conveyor
Image storing: real time store any image and process it in operation status
Applications:
Hotel,railway/bus/subway station,stadium,exhibition hall,etc
