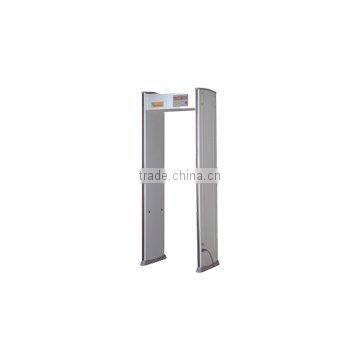

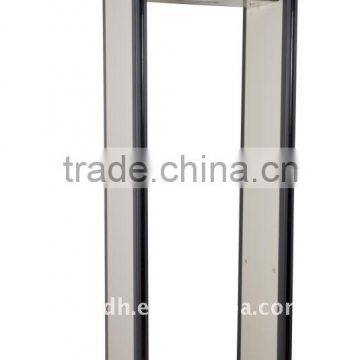

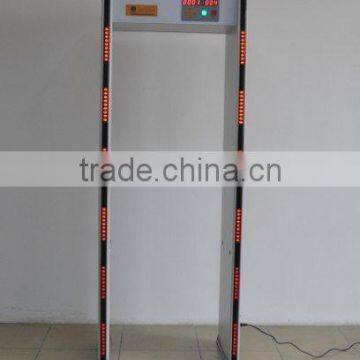

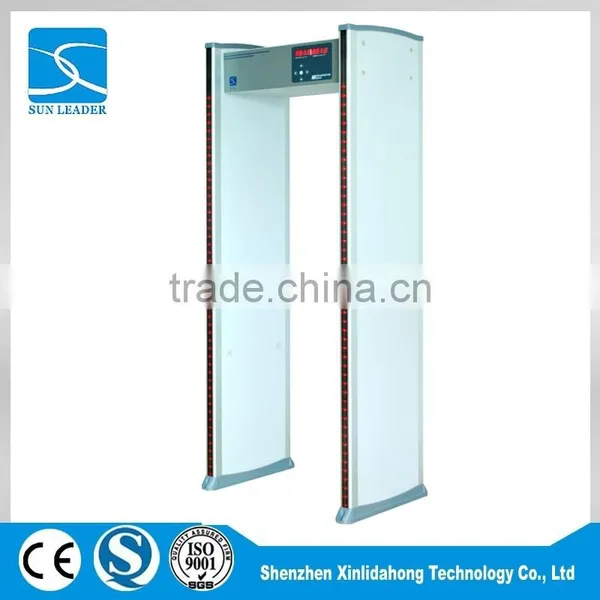

Waterproof Door Frame Metal Detector XLD-A

Waterproof Door Frame Metal Detector XLD-A thumbnail-1
Waterproof Door Frame Metal Detector XLD-A thumbnail-2
Waterproof Door Frame Metal Detector XLD-A thumbnail-3
Waterproof Door Frame Metal Detector XLD-A thumbnail-4
Waterproof Door Frame Metal Detector XLD-A thumbnail-5
Waterproof Door Frame Metal Detector XLD-A thumbnail-6
Waterproof Door Frame Metal Detector XLD-A photo-1
Waterproof Door Frame Metal Detector XLD-A photo-2
Waterproof Door Frame Metal Detector XLD-A photo-3
Waterproof Door Frame Metal Detector XLD-A photo-4
Waterproof Door Frame Metal Detector XLD-A photo-5
Waterproof Door Frame Metal Detector XLD-A photo-6
US$ 750 - 800 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sun Leader
Model Number:
XLD-A
Contact Supplier Request Quote Chat Now
Shenzhen Xinlidahong Technology Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Sun Leader
Model Number XLD-A
Description

Applying most advanced digital detecting technology in the world, XINLIDAHONG metal detecting gate is for the detection of metal and alloy articles concealed in human body. It is highly safe, widely applicable and highly sensitive with a wide detecting range and a good anti-interference capability. It can work intellectually around the clock and give alarm both in sound and light simultaneously. The quality, effect and specifications are up-to-date in the world.The sensitivity of XINLIDAHONG digital metal detecting gate is adjustable. In the highest volume, articles as small as a paper clip can be detected and located. The user can configure the gate according to the size and weight of the article for detection to exclude err alarm for coins, keys, jewelries, belt buckles etc. It is applicable in the places such as factories, mines, banks, luxuries houses etc., where expensive metal articles may get lost easily; and places such as airport, customhouse, jails, exhibition halls, where dangerous metal articles are prohibited.

Technical specifications

Electric current:
220V
Power:
<30w

Outer frame:
 22 mm (long) x 8 mm (wide) x 500 mm (depth)
Outer frame :
2010mm(h)X700mm(w)X500mm(d)

Weight :
about 98kg
work envionment :
-20¡æ- +45¡æ

Complied standards:
GB15210-94








Function and characteristics:

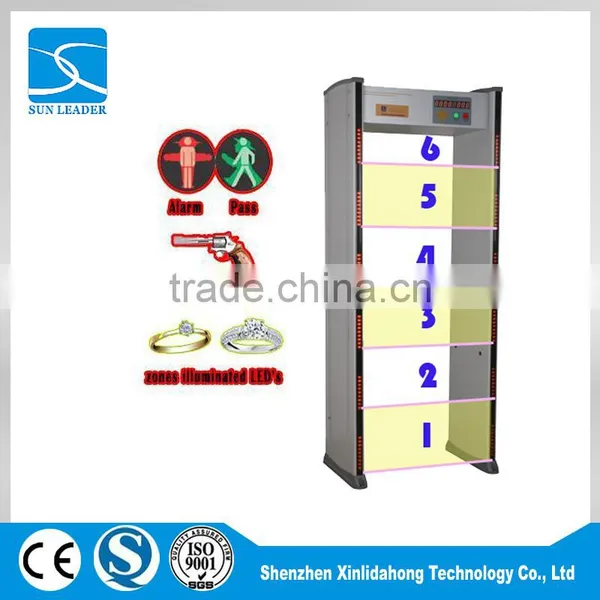

Six detecting area:
Allocation of six mutual over-lapping detecting areas, accurately ascertain the location of the metal articles
Alarm area indication:
There is an instruction light in alarm area which equals to the height of a person on the right side of the gate,and equipped sound , it is so clear at first sight that rapidly promote work efficiency.
Adjustable area sensitive:
The maximum sensitivity can detect such metal as small as a clip .Each detecting area has 100 sensitive gears ,and can adjust sensitivity automatically, Predetermine the weight ,volume ,size and location of the metal article , Eliminate the false alarm caused by
coins ,keys ,jewelleries and leather bell buttons and so on .
Digital circuit:
design prevents from missing alarm , and have strong anti-interferendce to outer surroundings ,the rate of the false alarm is controlled within 1%.
Password protection:
The gate is protected with password , only enpowered person permitted to operate.
Statistic function:
Intellectual rate of flow of passer and alarm counter can calculate the number Of passer and alarm times .
Harmless to human body:
Using sensitive metal detecting technology is harmless to heartbeat implement in human body , pregnant women ,magnetic softwares , tapes and video recording tapes.
Convenience in Installation:
Guard Spirit series are systematic designs , need only 20 minutes to install or dismantle , and equip VCD training disk and operation instruction with the machine .
Application scope:
It can be used in the factory, prison, court, exhibition hall, stadium, entertainment lieu, etc., where the prohibited articles need to be checked for safety.





waterproof door frame metal detector XLD-A

waterproof door frame metal detector XLD-A

waterproof door frame metal detector XLD-A

1. What is the minimum order quantity?

The MOQ is 1 piece.

2. What is the lead time?

3-5days after T/T payment, for other products please contact us for details.

3. What is the payment term?

The payment term is T/T ,L/C before shipment.

4: How does your company and factory do regarding quality control?

Every products will be detected after producing and approved by ISO9001,CEand RoHS certificate.



waterproof door frame metal detector XLD-A
