XLD-B 8 area (10 districts)-bit digital metal detector gate (LCD)
Description:
8th district (10 districts)-bit digital metal detector gate
In the six districts to the Digital metal detector the door completely on the basis of improved technologies, research and development out of eight districts to the Digital metal detector gate, using the full software control technology security door, completely changed the original hardware control feedback, a higher detection sensitivity, performance more stable, showing a more accurate, more user-friendly and so on.
Specifications
* Power Supply: AC100V ~ 240V/50HZ Power: <30w
* Machine Weight: about 70kg
* Working environment: -25 centgrade - +45 centigrade
* Alarm: pitch speed can distinguish between metal objects the size of the alarm volume can be set to high, low, no three modes for different occasions choices. Around the post, column LED lights are available through direct indication of alarm location, accurate and show a high degree of hiding the body corresponding prohibited items.
* Standard: GB15210-2003
Features:
• Performance and features

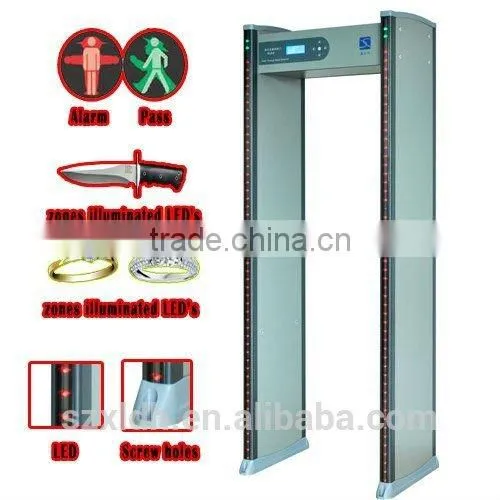

* Display Panel: LCD screen with 5.7 inches LCD display.
* Power On Self Test function: The system will automatically detect at boot time to run diagnostic equipment is operating normally, the system fails when the display will be self -
Dynamic display fault content.
* Operating System: Chinese / English menu to select the features, the computer networking remote mode of operation, the host mode of operation panel numeric keys, IR remote control operating mode the numeric keys, the user can freely choose from a variety of operating modes, friendly, interactive man-machine interface, WINDOWS style.

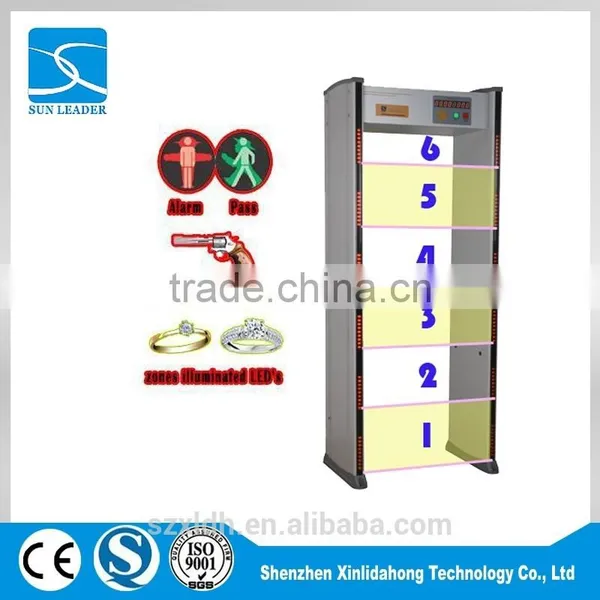

* Detection Location: 8 / 10 location detection, according to the distribution of various metal objects, multi-location alarm simultaneously and accurately determine the location of metal objects.
* Location Performance: As noted in the basic structure of the human body into the door metal detector used to detect areas of overlapping mesh method to detect and eliminate the probe within the region "weak zones" and "blind" use of a single frequency stimulate the formation of technology in the detection zone is very uniform magnetic field density, penetration, detection sensitivity, high and stable performance.
* Sensitivity adjustment: the detection of field uniformity can be 300 to adjust the sensitivity (three different occasions using the model) the highest sensitivity can detect the size of the metal blade clip can be 0-99 self-regulation among the sensitivity, pre-set metal items weight, volume, size, location, remove the coins, keys, jewelry, belt buckle and so false alarm.
* Anti-jamming performance: the use of advanced interactive use of transmitting and receiving compensation for temperature and humidity automatically detect the tracking technology, to adapt to different environments and climate, markedly improved anti-jamming capability.
* Security: The dual-password protected, allowing only authorized personnel to operate and more secure with user action is set when an error occurs inadvertently cause the system to restore the factory settings function using uninterruptible power protection system can work stand-alone power supply for more than 1 hour, parameters of the system with power protection function (optional) placed in the host machine power top is available through remote control or operation of work machine power control panel, moisture-proof. Waterproof.
Better heat dissipation of the human body, the heart pacemaker. Pregnant women. Magnetic floppy disk. Tapes, and so harmless.
* Networking: networking with RS485 interface, up to 3000 meters away from the scope of the door could be 20 units in parallel, using a dedicated PC, configure the software, which enables remote parameter setting / inquiry capabilities, comprehensive control of security doors working condition can be remote video surveillance supporting systems and alarm when the real time image capture function (optional).
* Counting function: count of intelligent traffic and alarm functions, can automatically and alarm statistics by the number of times.
* Waterproof design: using imported synthetic waterproof material, through precision processing technology of production of synthesis.
The use of the area
Using places: airports, various venues, events, stations, terminals, entertainment, prisons, courts, important government departments, factories, examination room, shopping malls, community access security checks and inspection areas of prohibited goods.
