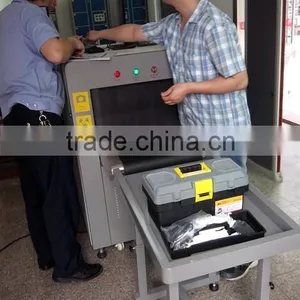

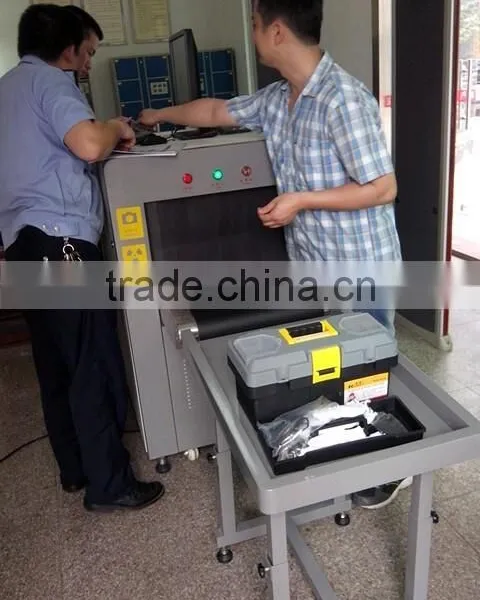

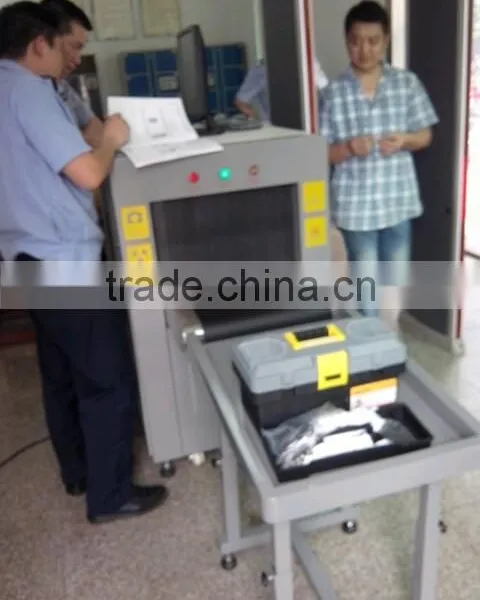

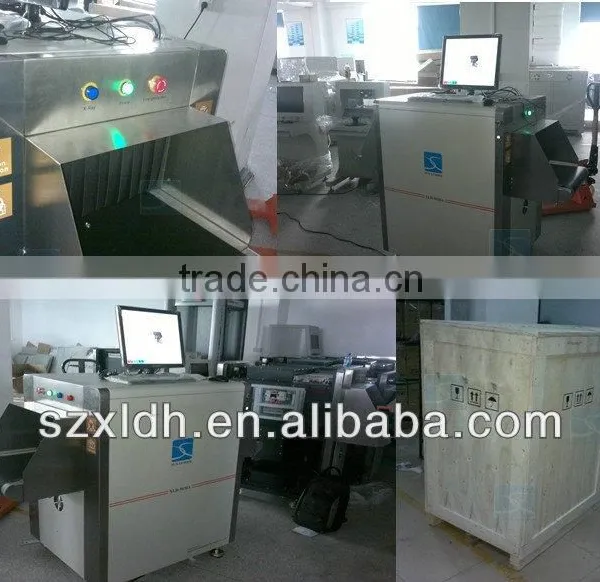

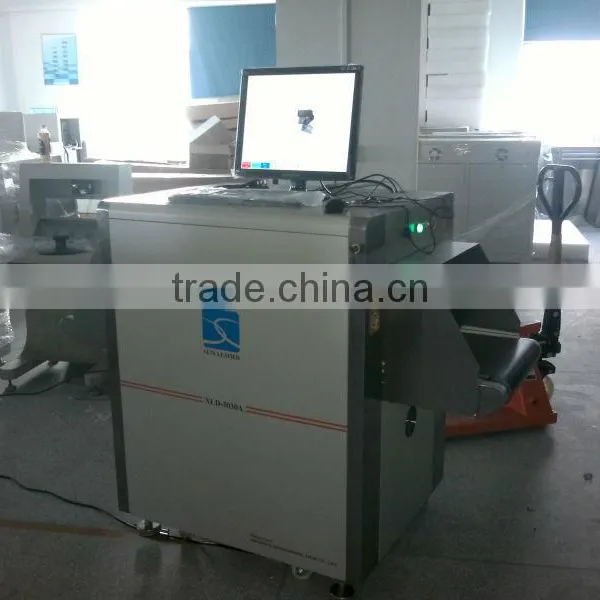

high sensitive X-ray baggage scanner inspection system XLD-10080

X-ray  baggage scanner/ x-ray  inspection

 Features :

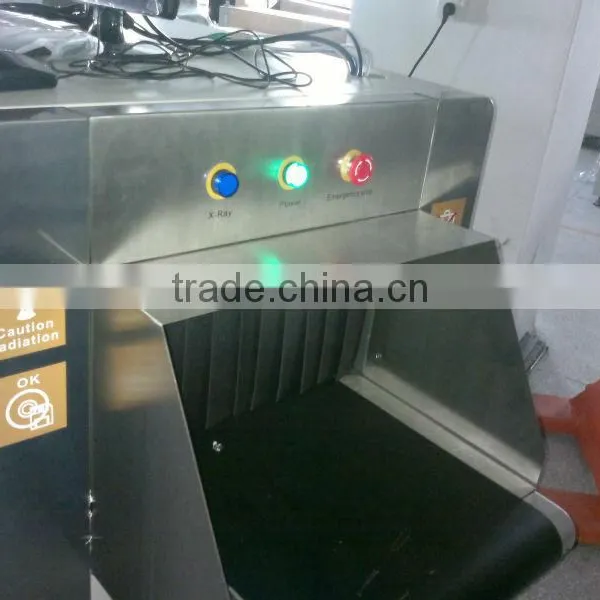

1.      Alarm by sounds & light:Alarm by sounds and light when conform to condition.

2.      Network interfaceCould be connect local area network and support multi-terminal check baggage at same times

3.      Safety rayTransmit ray under automatic control, avoids the miss.

4.      Turn off by a key controlTurn off the machine only need one steprevolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.

5.      Eagle-eyeCould be expediently observing enlargement area.

6.      Estimate malfunction by selfAutomatic estimate malfunction and prompt message, helpful for the maintenance.

TECHNICAL DATA:

Tunnel Size:                    1000W×800Hmm

Conveyor Speed:                 0.22 m/s

Conveyor Max Load:              200 kg

Single inspection dosage           < 1.5µGy

Wire Resolution:                 0.1mm metal line

Steel Penetration:                 30MM armor plate

Film Safety:                     For ISO 1600

Maximum leakage radiation        <0.3µGY/H

X-RAY GENERATOR:

Orientation:                        Vertically Upward

Tube Current:                       0.4~1.2MAadjustable

Anode Voltage:                      100~160 KV(adjustable

Angle:                             80°

Opeerating Environment :

Storage Temperature:             -20ºC to 60ºC

Operating Temperature:           0ºC to 45ºC

Relative Humidity:               20 to 95% non-condensing

System Power:                  220 VAC (±10%) 50±3HZ

Power wastage                1.5 KW (Max)

Noise                        <65DB
