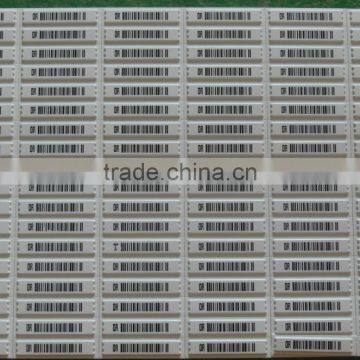

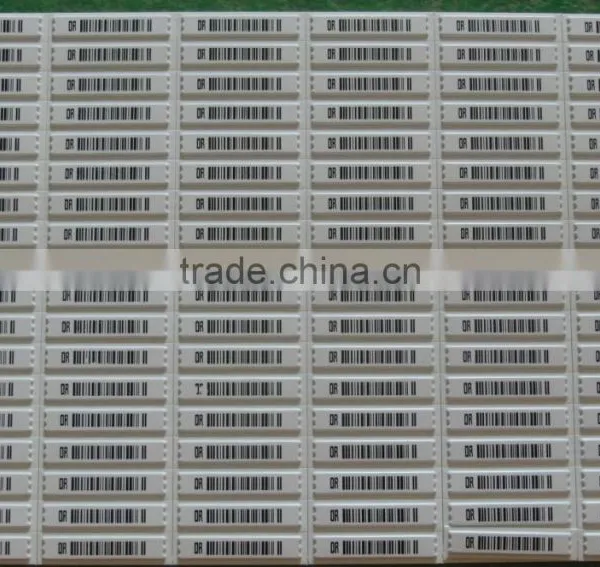

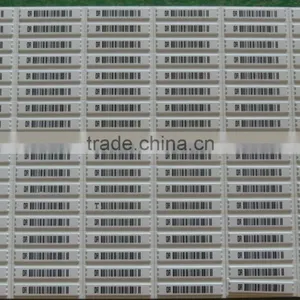

58khz Soft AM magnetic label R5801 45x10mm blank or with barcode
1. Label Dimension
Label Length: 45.21mm+/-0.5mm(1.78”+/-0.020”)
Label Width: 10.67mm+/-0.5mm(0.420”+/-0.020”)
Label Thickness(excluding Liner): 1.89mm(0.074”)
Label Thickness(including Liner): 2.00mm(0.79”)
2. Environmental Constraints
Temperature: Maximal temperature of 50°C(122°F)for 96 hours at 80% RH;
Humidity: Up to 80% humidity at 50°C(122°F) for 96 hours;
Shelf Life: Two years from the date of manufacturing when stored between 50°C-32°C(60°F-90°F),30-80%RH
3. Packing Specifications
Quantity of labels per sheet: 108
Quantity of Sheets per carton: 5000-unit case
Carton weight: 2.76kg (6.07 ibs.)ext.carton
Dimension of carton: 27.9×20×11cm(11×8×4.5”)ext.cubic feet
Quantity of cartons per pallet: 255
4. Materials
Plastic Housing Polystyrene/ polyethylene 0.3mm(0.012”)thick Magnetic Acoustic Resonator
Proprietary resonant magnetic material.
Amorphous alloy, mainly made by iron, but also nickel,cobalt, boron and silicon.
Laminate Low Density Polyethylene/ Polyester/ Polyethylene 0.127mm(0.0050”)
Bias Proprietary semi-hard magnetic material containing iron, nickel and chromium
Laminate Low Density Polyethylene/ Polyester 0.119mm(0.0047”)
Adhesive Double-coated, rubber-based adhesive 2.4mil thick per side minimum peel strength of 80 oz./in.
Release Liner Double-sided, silicon-coated 80 Ib. bleached craft liner 0.114mm(0.0045”)thick
5. Instructions
Place within 7.6cm(3”)of bar code.
Place in least conspicuous location.
Do not cover warnings, expiration dates or other important consumer information.
Label placement should be in accordance with Source Tagging Guidelines.
It is recommended that the surface to which the label is applied should be clear and free of all dirt, grease, oil, etc.
More than 100mg of ambient magnetic field of labeled product may reduce label performance.
Do not expose to the label to magnetic field stronger than 8 Gauss.
Individual analysis is recommend for placement on metal products.
