uhf programmable rfid tag with Alien H3 chip inside can read and write made by paper can print logo or make different size
Product Description
1. Accord EPC Class1 Gen2 standard
2. Size: 4*2 inch
3. With multi-tag anti-collision mechanism, work distance above 6m
Parameter
| Label Size | 4'' X2'' inch |
| Antenna Size | 98.2mmX12.3mm |
| Antenna Material | Coppe |
| Substrate Material | PET |
| Antenna Thickness | 0.03mm |
| Substrate Thickness | 0.03mm |
| Frequency | 860~960MHz |
| Protocol | ISO18000-6C |
| Chip Type | Alien-H2/H3; Impinj-M2/M3 etc |
| Memory | 0 bits / 96 bits /512 bits/2048 bits |
| Write Endurance | 10,000 cycles {HSL:100,000cycles} |
| Data Retention | 10 years |
| Baudrate | 640K bits/s {HSL: 40K bits/s} |
| Ideal Storage Temp | +15°C~+25°C,20%RH~45%RH |
| Tolerant Storage Environment | -25°C~+50°C,20%RH~90%RH |
| Tolerant Working Environment | -25°C~+65°C,20%RH~90%RH |
| Withstand voltage | <=5N/mm^2 |
| Resistance to bending capacity | >=φ20mm |
Application
Can be used for logistics, warehousing and asset management.
Packaging
1.Size: Dia 3 inch
2.Packing: shrink wrap, Moistureproof packing, Neutral Packing
3.Roll Packing:1000PCS/roll; 500PCS/roll
4.Piece Packing:1000PCS/CTN, 3000PCS/CTN, 5000PCS/CTN, 10,000PCS/CTN
Other Support
1.For now,we can provide size of 50*50mm,35*15mm,25mm(dia),40*25mm,86*54mm,73*23mm,45mm(dia),35*35mm,
55*17mm,4*2inch,4*4inch,4*6inch,you can choose
the suitable size,we can also customize for you according toyour
requirement.
2.If you want to know more about our RFID label,Welcome to Visit our website,you can get various label information:
/product.aspx?cid=273

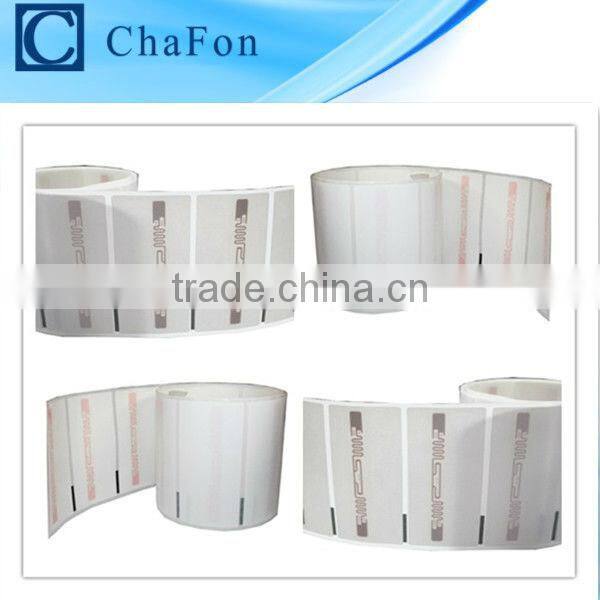

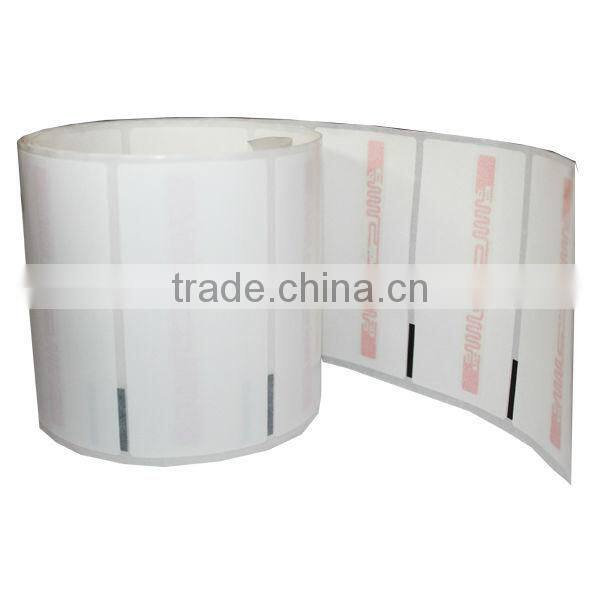

Product pictures
