ISO14443A 13.56MHZ RFID usb reader
NEXQO has been one of the premier card maker in China simply based on two facts, that to make the best product and to maintain the best service, with annually over 100 million cards produced and distributed into more than 50 countries worldwide.
Nexqo is member of ICMA (International Card Manufacturer Association) and delivers qualified cards that has been certified in accordance with CE FCC and RoHS certificates.
Applications:
o Identification
o Access control
o Offline ticketing
o Customizing card
o payment
o Productive lines management: production process fixed identify
o Product counterfeit-proof inspection: using memory’s write-protect functions inside
tags and identifying with true-false of products
o Other fields: used widely in club management, libraries, students schools,
consumption management, time management, dinner management and pool
management
Reader Characteristics:

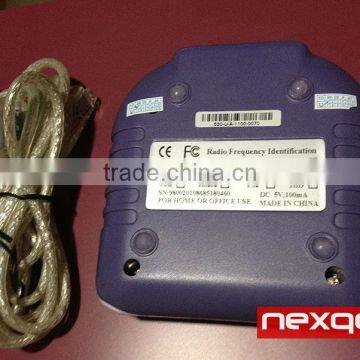

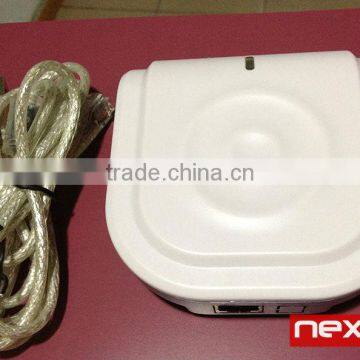

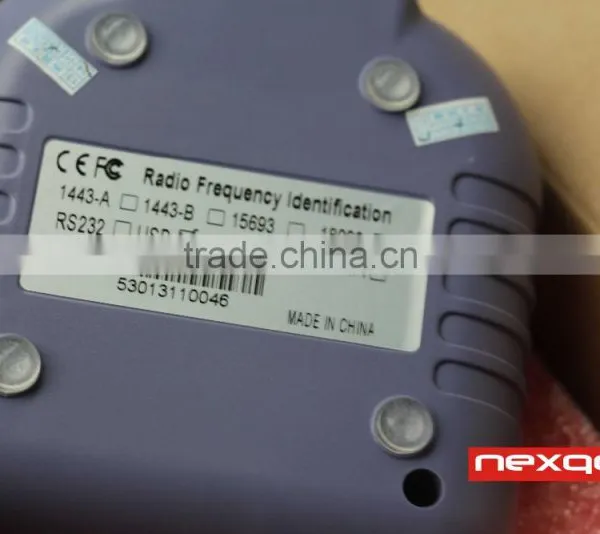

The Nex530 desktop reader is a ISO14443 A,B or ISO15693 read/write device with a
typical operating distance of 50-100mm. The Desktop reader combines all basic functions to access
the ISO14443A,B or ISO15693 card. Including Smart Card. Its versatility allows a flexible and
efficient application in different configurations and system devices. Using a serial interface the
device can be easily connected to a PC or other controller.
Specifications:
Protocol | ISO/IEC14443A,ISO/IEC14443B,ISO/IEC15693 |
Frequency range | 13.56MHZ |
Baud Rate | 9600-115200bit/s |
Communication interface | RS232,USB,PS2 |
Reading range | 50~100MM |
Material | ABS |
Support Card | 13.56MHz chips |
Reading clue buzzer | Yes |
Power consumption | DC 5V(±5%) |
Working temperature | -30~+80°C |
Humidity | 20% ~ 95% |
Size | 100mm×100mm×30mm |
Weight | 0.5Kg |
Accessories | USB (RS232) Cable,disk(SDK, Demo,User’s manual )
|
QC:
Every single product will be carefully checked by machine or manual work before dispatched.
Speciality:
Nexqo is member of ICMA (International Card Manufacturer Association) and delivers outstanding quality that has been certified in accordance with CE FCC and RoHS certificates.
To make sure the product can be delivered without any damage, Nexqo uses top standard packaging. All Paper boxes and cartons are made of high-quality material.
Contact me for more details!
