Far distance reading 2.45GHz omini-directional Active reader
NEXQO has been one of the premier card maker in China simply based on two facts, that to make the best product and to maintain the best service, with annually over 100 million cards produced and distributed into more than 50 countries worldwide.
Nexqo is member of ICMA (International Card Manufacturer Association) and delivers qualified cards that has been certified in accordance with CE FCC and RoHS certificates.
A RFID reader is a device that can wirelessly communicate with RFID tags. It can detect the presence of RFID tags as well as send and receive data and commands from the RFID tags. Typically RFID Reader comprises RF module (sender and receiver), control unit and antenna.
The 2.45GHz RFID reader, with long reading range, strong penetrability and high performance, is the first choice for automated intelligent management.
Specification:
Model No. | Nex-3102E |
Material | ABS |
Dimension | 92*∅110mm |
Weight | 200g |
Way to install | Wall-mounted |
Identify type | Omni-directional |
Signal modulation mode | GFSK |
Traffic rate | 1Mbit/s |
Working frequency | 2440MHz |
MAX receive sensitivity | -90dgm |
Antenna gain | 2dbi, dual polarization |
Working current | 350mA |
Working voltage | 9V DC |
Communication interface | |
RS232 | Baud rate: 115200bps; data bits:8; stop bit:1; check bit: N |
RS485 | Baud rate: 19200bps; data bits:8; stop bit:1; check bit: N |
RJ45 | 10/100 self-adaption |
SDK: /SDK/SPLUS/
Nex-3002A is a type of 2.45GHz Non-directional reader, applying in wide alleyway, far distance, quick identification, meeting the special demand of identification, tracking and reading many tags simultaneously.
With Aluminium alloy shell and other specific technical design, the 2.45GHz Non-directional Reader is lightning protection and anti-impact. Besides, it can meet requirements for industrial environment use. Also, its’ high performance in stability and far distance reading make it possible to be applied in various fields.
Applications:
1. Alleyway management: open entrance and exit control management system, intelligent resident district and mansion parking-lot charge, freeway ETC, safety-inspection and custom
2. Personnel management: quick attendance administration, conference signature system, student safety short message system, security patrol system.
3. Cargo management: storage and data collection system, flowing goods control and tracing, container automatic identification and register management.
4. Prevention management: personnel positioning, tracing and inquiry in the mine, and Good counterfeit-proof test.
5. Public management: city intelligent traffic platform, vehicle monitor and operation, train automatic numbering
6. Manufacture management: work flow management, monitor parts in the production process.
7. Transportation management: road, railway management, and container transfer monitor and tracing management.
QC:
Every single product will be carefully checked by machine or manual work before dispatched.
Speciality:
Nexqo is member of ICMA (International Card Manufacturer Association) and delivers outstanding quality that has been certified in accordance with CE FCC and RoHS certificates.
To make sure this kind of 2.45GHz Non-Directional RFID reader can be delivered without any damage, Nexqo uses top standard packaging. All Paper boxes and cartons are made of high-quality material.

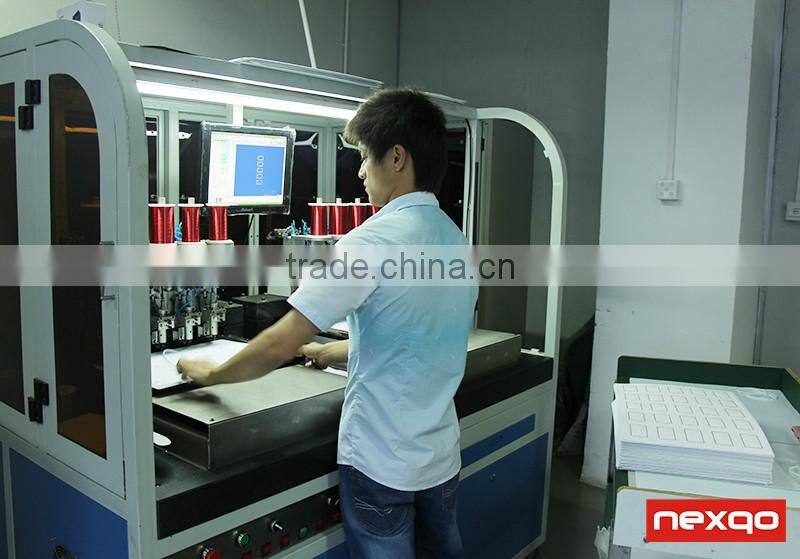

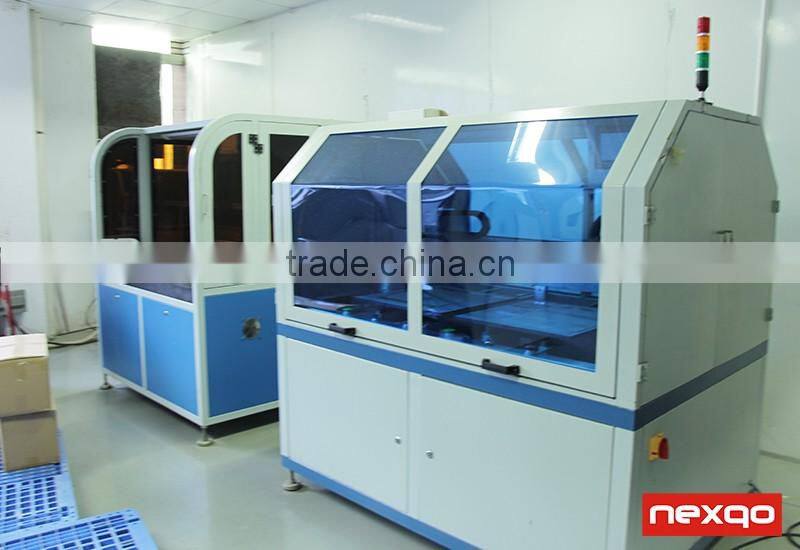

Factory picture
| Rita.Ren Sales Representative |
| Rm7C/D West Coast Building, 2251 Nanhai Blvd, Shenzhen 518054, China |
| Phone: 86-755-26490032 | Mobile: 86-18825265603 Skype: rita199002 | |
