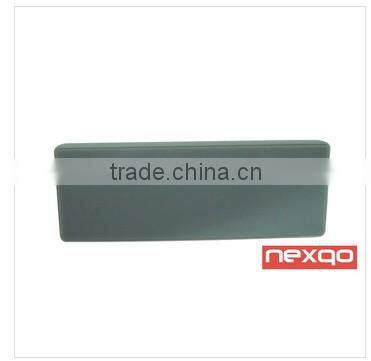

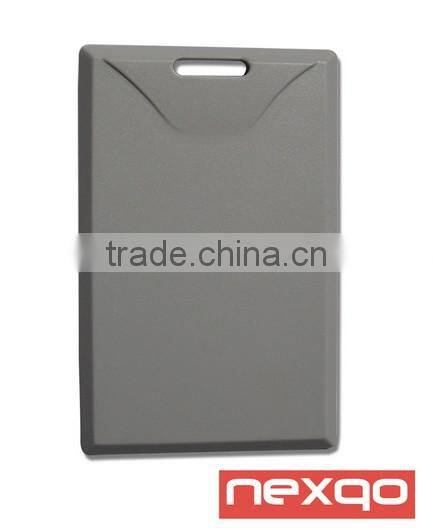

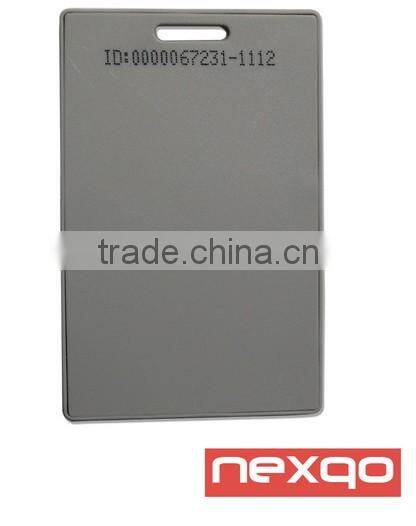

RFID 2.45G Hz Long Distance Active Tag
Product Feature :
1. Suitable to adopt fixed frequency working mode, with powerful anti-jamming ability;
2. Effective reading range up to 80m (depend on reader and antenna, software configurable);
3.Super wide working band design, conforming to relevant industry rules and also flexible in application development;
4.Multi-Tag reading at the same time (more than 100pcs per second), no limitation or interference by tag quantity in the reading range.
Physical Characteristic:
Model No : NEX-3831E
Type : 2.4G Card Type (read only)
Inductive mode: Initiative transmit, RF Power-0dBm transmit every second
Material: ABS, heat resistant ,White color/Black Color
Dimension: 86*55*5.2mm
Battery: Battery life 3 years (battery can replace)
IP Grade: IP54
Weight: 28g
Microwave Link Characteristic: Electrical Characteristic:
Signal Modulation Mode: GFSK Quiescent Current: Less than 3MICROAMP
Communication Speed: one-way 1Mbit/s Operating Current: Less than 16mA
Operating Frequency: 2.4GHz Operating Temp: -20°C~+45°C
Maximum output power: 0dbm (1mw) Storage Temp: -30°C~65°C
Receiver sensitivity: -85dbm Operating Humidity: Less than 85%
Error Rate: 10-6 Drop Test: 1m (concrete floor) fall free
System Features:
The electronic license is unique and able to be duplicated;
Track the movement of vehicles, not influenced by weather;
Identification vehicles without stop; Set up mobile monitoring point at important crossings.
