Specifications
RFID 2.4 Ghz Active Tag for Long Distance Tracking1. Anti-collision rfid tag
2. far read range with reader
3 .Sample avail
RFID 2.4 Ghz Active Tag for Long Distance Tracking
Product Feature
1. Suitable to adopt fixed frequency working mode, with powerful anti-jamming ability;
2. Effective reading range up to 80m (depend on reader and antenna, software configurable);
3. Super wide working band design, conforming to relevant industry rules and also flexible in application development;
4. Multi-Tag reading at the same time (more than 100pcs per second), no limitation or interference by tag quantity in the reading range.
Physical Characteristic:
Model No | NEX-3820B |
Type | 2.4G Card Type (read only) |
Inductive mode | Initiative transmit, RF Power-0dBm transmit every second |
Material | ABS, heat resistant ,White color/Black Color |
Dimension | 75*50*7.5mm |
Battery | Battery life 1~2 years (battery can replace) |
IP Grade | IP54 |
Weight | 25g |
Microwave Link Characteristic: Electrical Characteristic:
Signal Modulation Mode: GFSK Quiescent Current: Less than 3MICROAMP
Communication Speed: one-way 1Mbit/s Operating Current: Less than 16mA
Operating Frequency: 2.4GHz Operating Temp: -20°C~+45°C
Maximum output power: 0dbm (1mw) Storage Temp: -30°C~65°C
Receiver sensitivity: -85dbm Operating Humidity: Less than 85%
Error Rate: 10-6 Drop Test: 1m (concrete floor) fall free
System Features:
l The electronic license is unique and able to be duplicated;
l Track the movement of vehicles, not influenced by weather;
l Identification vehicles without stop; Set up mobile monitoring point at important crossings;

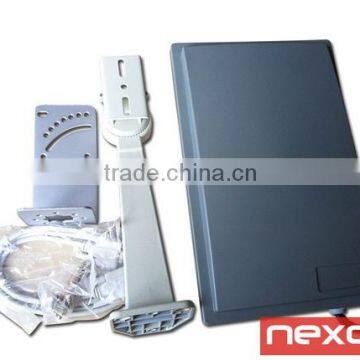

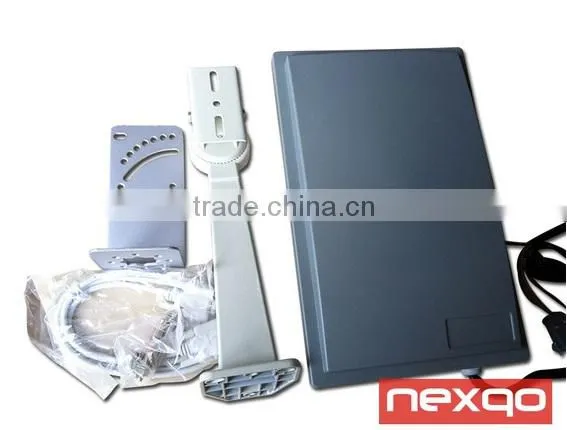

the mached 2.45ghz reader also can be provided too !!
Our promise:
1. Your inquiry will be well replied within 8 hours.
2. Competitive price, high quality and prompt shipment.
3. For samples order, we ship via DHL, FedEx within 3 working days after receipt of the payment. For production order, please contact us.
4. Payment: T/T, Western Union, PayPal, Alibaba is acceptable.
You inquiry is welcomed!
