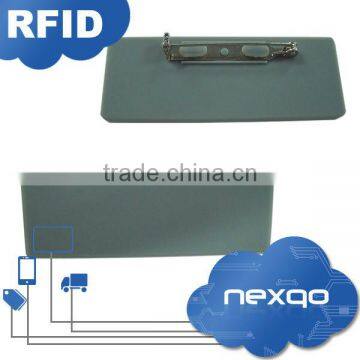

Printable RFID 2.45G Active Name Tag

Specifications

1. Effective reading range up to 80m
2. Multi-Tag reading at the same time

Product Feature

1.         Suitable to adopt fixed frequency working mode, with powerful anti-jamming ability;

2.         Effective reading range up to 80m (depend on reader and antenna, software configurable);

3.         Super wide working band design, conforming to relevant industry rules and also flexible in application development;

4.         Multi-Tag reading at the same time (more than 100pcs per second), no limitation or interference by tag quantity in the reading range.



Physical Characteristic:



Model No	NEX-3830E
Type	2.4G Card Type (read only)
Inductive mode	Initiative transmit, RF Power-0dBm transmit every second
Material	ABS, heat resistant ,White color/Black Color
Dimension	70*15*6mm
Battery	Battery life 3 years (battery can replace)
IP Grade	IP54
Weight	18g



Microwave Link Characteristic:

Signal Modulation Mode: GFSK

Communication Speed: one-way 1Mbit/s

Operating Frequency: 2.4GHz

Maximum output power: 0dbm (1mw)

Receiver sensitivity: -85dbm

Error Rate: 10^-6



Electrical Characteristic:

Quiescent Current: Less than 3MICROAMP

Operating Current: Less than 16mA

Operating Temp: -20°C~+45°C

Storage Temp: -30°C~65°C

Operating Humidity: Less than 85%

Drop Test: 1m (concrete floor) fall free





System Features:

l  The electronic license is unique and able to be duplicated;

l  Track the movement of vehicles, not influenced by weather;

l  Identification vehicles without stop; Set up mobile monitoring point at important crossings;
